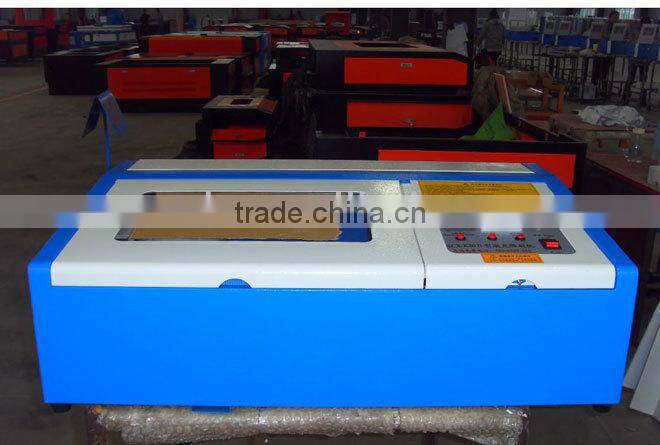

Seal/stamp Laser Engraving Machine

High precision laser stamp machine technical Parameters

Seal/stamp laser engraving machine

Seal/stamp laser engraving machine

Seal/stamp laser engraving machine

Seal/stamp laser engraving machine

Seal/stamp laser engraving machine

Seal/stamp laser engraving machine

CO2 Laser Stamp Engraving Machine

Mini rubber stamp making machine

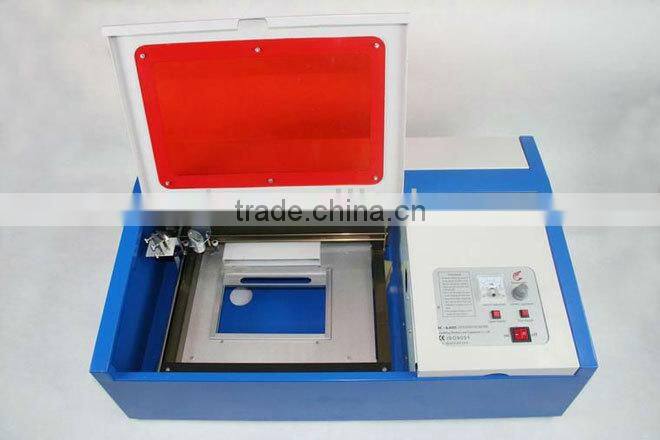

Desktop Mini Stamp Machine

Applicable Materials
Plexiglass,acrylic,wooden board,plastic,crystal,rubber,ceramic tile,bamboo,grantile,marble,ressin etc. non-metal materials.

Applicable Industry
Art gifts,cloth,toy,marble,grantile,crystal.paper product,acylic etc.industries.

Applicable Material:

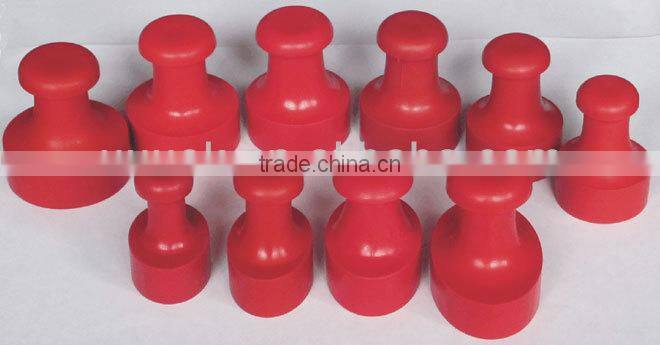

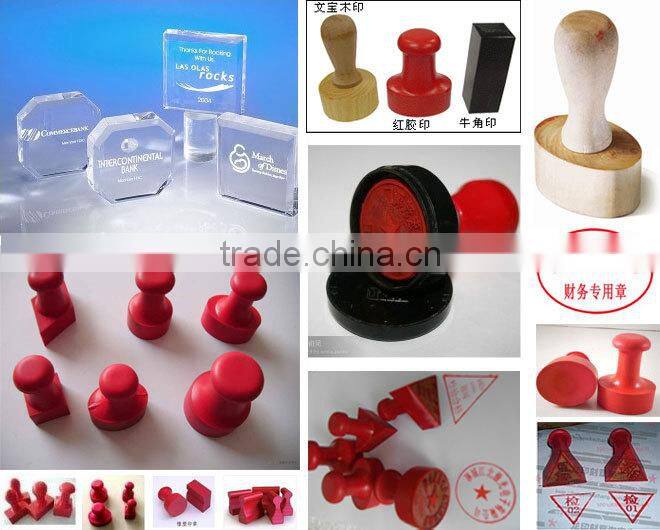

1. For stamp: Ox horn, wood, rubber, organic glass, atom, crystal, soft jade.
2. For crafts:  two-tone board, wood, bamboo, glass, fabrics.
3. Can engrave logo, picture, name, style no. on electron component.

Laser seal machine Product Features:
1. produce a variety of advanced positioning system positioning seal only once.
2. mechanical design is reasonable, fast, strong and durable.
3. high quality ignition coil, laser tube life longer.
4. laser power supply antistatic, adapt the national kinds of environments.
5. high-performance motherboards, interference, data output more fully.
6. software compatibility, can save thousands of fonts and images.

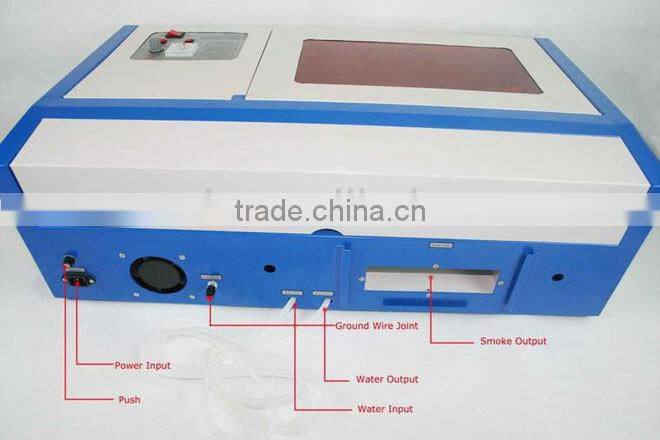

Laser stamp machine parts: exhaust fan, water cooling pump laser tube, software (can be used in any system, you can call any of the fonts and graphics)
1, laser stamp machine(computer engraving machine) for non-metallic materials such as seals: horns and India, Indian wood, red plastic printing, glass printing, atomic India, crystal India, India and other soft jade.
2, crafts engraving machine for small crafts area, in color plates, wood, bamboo, organic glass plates, cloth engraving on all sorts of graphics and text.
3, in the name carved on electronic components, models, logos, graphics, etc., very permanent.
laser stamp machine(computer engraving machine) is the integration of new optical, mechanical, electrical integration technology and the latest design of high-tech products. The product appearance, performance, precision, quality internal configuration to achieve the perfect group.

Laser stamp machine operation method
1 ) with a laser printer will produce a good proofs printed on acid paper.
2 ) Specifications covered by a transparent comp exposure film , its size to completely cover the comp prevail.
3 ) printing proofs , exposure film , photosensitive seal between the three pads and headed for the order : print proofs at the bottom , close to the photosensitive machine glass , print side up , the middle layer is exposed film , the third layer is Seal mat. Three were stable and close contact , in the middle there is no gap folds . The photosensitive machine light board cover , and pull the handle to tighten it .
4 ) Apply power and turn on the power switch, a photosensitive unit starts charging.
5 ) a wide variety of photosensitive seal pad , stamp pad the different needs of different exposure energy .

In order to seal all light pads can be accurately exposed , the machine can be displayed according to the voltage meter free random exposure means exposure . Exposure voltage range from 160V to 320V between the exposure can . ( Initial use , it is recommended to test out first with scrap pad suitable for this chapter the best exposure voltage value , such as photosensitive pad for some domestic exposure voltage value: sulfuric acid paper printout 240V, film print version 220V). Subject photosensitive machine charging indicator reaches the desired exposure of the chapter pad voltage , power off, press the exposure button to complete the exposure.
6 ) Loosen the clamping lever , opened light board, the exposure of the photosensitive mat finish removed , torn film .
7 ) the exposure good print pad into the appropriate chapters shell, press seal specifications injected scalar ink, ink is distributed evenly even , you can deliver customers .

Laser stamp machine problems and solutions
Now the machine problems,
1, switching power supply easily broken;
2, the machine unstable operation;
3, the electrical control problem sometimes
For now these problems; we can take the following measures:
1, switching power supply easily broken, we change the factory, looking for a better power quality cooperation.
2, the machine is running unsteadily, many factors affect the stability of the machine,
mounting of mechanical precision is parallel between the guides, if there is misalignment between the two belts.
electronic control: the wire is solid, the mouth is smooth welding, welding, do not have glitches, but also to a uniform welded together.
use shielded wire signal lines, power lines and signal lines are in a disrupted power supply before adding filters, power line filter is to prevent electromagnetic interference generated by the device itself into the power lines, while preventing power line interference into the device.
220V power cord do not walk around the control box line, that would bring electromagnetic interference, try to walk away when the line side.

Why laser stamp machine is working properly , the engraving parameters correctly, but the effect is not good carving ?
Laser engraving machine a fine instrument , is doing fine living , usually it appears a lot of delicate , this prettily "Miss" , what should we "care" about her? Let's look at why the laser stamp machine is working properly , the engraving parameters correctly, but the bad effects carving solve it !
1 Check whether the focusing mirror carved flat focus plane ;
(2) determine whether the laser power begins to decay , if this is the case , it should be appropriate to increase the output current or consider replacing the laser ;

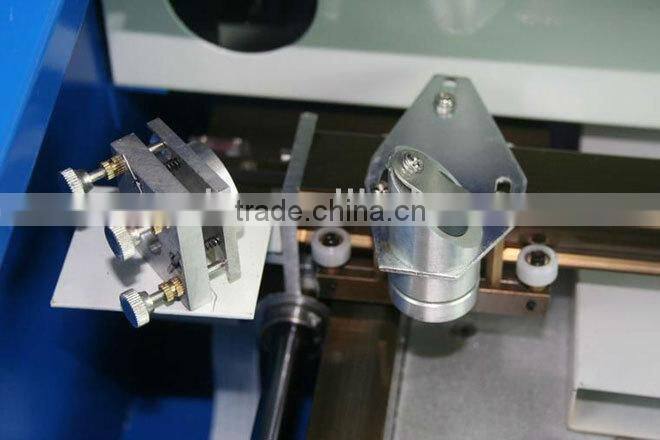

3 Check the light path is deflected : with polyester film followed the live first, second , third and fourth mirrors entrance , press the laser switches and manual test switch, observe spot position , any departure from the input center , you should fine-tune the laser and position and angle of the mirror to ensure that the center of the beam through the focusing lens ( optical path adjustment with a certain degree of difficulty , if not skilled, please contact service ) .
4 Unwanted lines appear in the engraving process , you should check the parallel port data lines , as necessary, replaced with new lines .

Laser stamp machine is used to note a few things
( 1 ) using the automatic measurement focus , pay attention to automatic measurement of coke rods must be tightened , otherwise the work surface to the top of the laser head , and make it out of orbit .
( 2 ) Laser engraving machine at work, prohibit open the lid, or they will stop the laser emission , affecting processing quality.
( 3 ) workpiece must be open and blowing smoke exhaust equipment to prevent dust pollution focusing lens and reflector lens , otherwise it will affect the lens focus and reflection , and thus indirectly affect the processing strength , precision .
( 4 ) , wood processing , paper work , we must pay close attention to processing speed and processing strength , to avoid too slow, intensity is too high to produce a flame . Flame will damage the focusing lens , the light intensity affect machining , precision , heavy machine will not be used.
( 5 ) For the early adopter for irregular workpiece when the red light must first be positioned to determine whether the location is accurate machining , or prone to waste.
( 6 ) processing of thin wood , cardboard and other deformable material , to adjust the horizontal deformation amplitude difference is less than 1 mm , to avoid the focal length is too large, affecting the machining accuracy. Processing of paper fixed to the paper , to avoid displacement occurs . Cutting paper , especially when quality soft paper ( rice paper , MaoBianZhi ) , you can simply stacked 15-20 sheets, soaked in water , leveling , and then cut . This increases the work efficiency and to avoid the risk of combustion of materials which occur .
( 7 ) for cutting , to make aircraft parts more than 2 cm away from the work surface , the reflected laser to avoid damage to the back of the workpiece , resulting in waste.
( 8 ) reflective lenses and focusing lens cleaning : two fingers to pinch reflex lens , one hand with a camera lens cleaning paper moistened with cleaning fluid and gently drag the lens surface , prohibit the use of finger pressure to avoid scratching the mirror ; or with a cotton swab dipped gently wipe the camera lens cleaning fluid focus lens until smooth .
( 9 ) is usually carved vector file , the resolution should be chosen higher (500dpi or 600dpi); engraving point CHEN file should choose lower resolution (500dpi rough mode or 300dpi). This sculpture looks great .

Computer engraving machine laser processing is the most advanced processing technology, it is mainly the use of efficient laser material for carving and cutting , the main equipment including computers and laser engraving machine ( cutting machine ) , the use of laser engraving and cutting process is very simple, as with computer and printer to print on paper , in the use of a variety of graphics software (CorelDraw, Photoshop, CAD) for graphic design, you will be transferred to the graphic laser engraving machine , laser engraving machine can be easily carved into any graphic material surface, and according to the design requirements of the cutting edge .
In other countries, in the field of laser processing , although the price is very expensive laser transmitter ( hundreds of thousands to millions ) , but due to the traditional processing laser processing has incomparable advantages , so in the United States , Italy, Germany and other countries accounted for laser processing to the processing industry, more than 50% share.

Laser processing advantages:
1 : wide range : Carbon dioxide laser virtually non-metallic materials can be of any engraving and cutting . And low prices !
2: Safe and reliable: the use of non -contact processing , the material will not cause mechanical compression or mechanical stress. No marks, no damage of the workpiece surface ; does not make the material deformation .
3 : Accurate and detailed : machining precision can reach 0.02mm.
4: saving and environmental protection: the beam and the beam diameter is small, generally less than 0.5mm; cutting material savings , safety and health .
5: the same effect : to ensure that the same batch processing results exactly.
6 : High-speed fast: can immediately output pattern according to the computer for high-speed engraving and cutting.
7: cost: not limit the number of processing for small batch processing services , laser processing )

Mechanical engraving is not common in a cost-effective way of carving irregular forms the point, because of not having gray. Laser engraving machine is realized by dot carving, shows the economic natural advantages in gray. Therefore in the carving design as far as possible the use of gray forms, the benefits of this is on the one hand reduces the coloring process, saving the cost; on the other hand, rich carving performance means, added graphics level. Users in the use of, the graphics do different gray fill, carving output select monochrome mode, can try different dot effect, accuracy is generally not more than 500dpi.
