NF-20 Manual Plastic Cosmetic Tube Filling and Sealing Machine With Factory Price

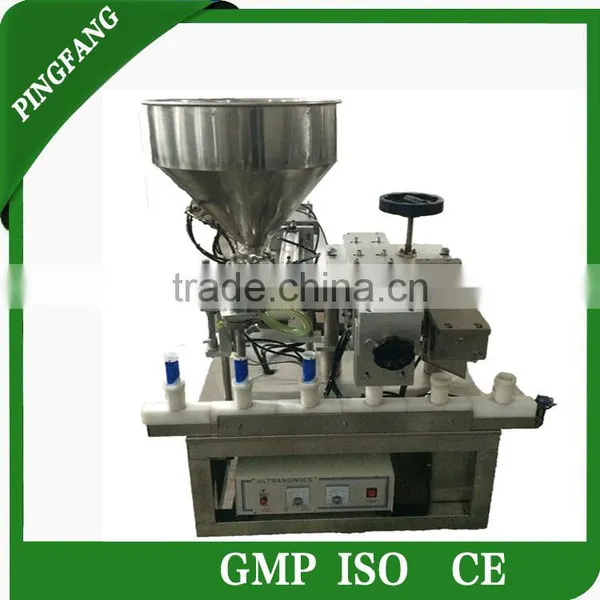

NF-20 Manual Plastic Cosmetic Tube Filling and Sealing Machine With Factory Price photo-1

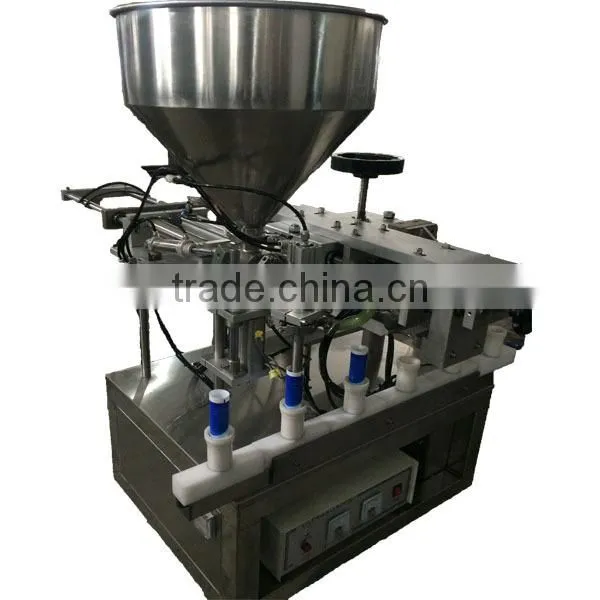

NF-20 Manual Plastic Cosmetic Tube Filling and Sealing Machine With Factory Price photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Medical
Packaging Type:
Other, tube
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Medical
Packaging Type Other, tube
Packaging Material Metal, Other, Metal, Plastic tube
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage AC220V±10% 50HZ,
Power 1.1 kw, 400w*2 (heating sealing)
Place of Origin Jiangsu, China
Brand Name PF
Model Number NF-20
Certification CE ISO
After-sales Service Provided No overseas service provided

NF-20 Manual plastic cosmetic tube filling and sealing machine with factory price



Product Description

 Features:

l  Manual tube feeding

l  Automatic filling

l  Automatic lot No. print

l  Automatic ultrasonic tube end sealing

l  Automatic tube sealed end cutting



l  Manual tube discharging





Specifications:

NF-20B



Configuration Standard



Technical Parameters



Remarks



n  Infrastructure



Main Machine Landing Area



(about) 0.4m2







Working Area

(about)4m2





Working Area

(about)2m2





Whole Machine

 (L×W×H)

730×550×1141mm





Weight

(about)100Kg



n  Machine case body



Case Body Material

304





Frame Below Platform

Stainless Steel





Case Body Shape

Square-shape



n  Power, Main Motor etc.



Power Supply

50Hz/220V  1P





Main Motor

0.5KW





Jacket barrel heating power



2 KW

OPTION



Jacket barrel blending power



0.18 KW

OPTION

n  Production Capacity



Operation Speed

5-20/min/max





Filling Range

3-250ml





Suitable Tube Length

50-210mm





Suitable Tube Diameter

12-50mm



n  Pressing Device



Pressing Guiding Main Component

CHINA



n  Pneumatic Control System



Pneumatic Component

AIRTAC( some FESTO)





Working Pressure

0.5-0.6MPa





Compressed Air Consumption



0.3m3/min



n  Electrical Control System



Total Power Switch etc.

       HZ12-25



n  Suitable Packing Material & Other Devices

Suitable Packing Material



Aluminum-plastic composite tube and Plastic composite tube





Material contacting with filling material

316L Stainless Steel





Auto stamping device



Single side printing at the end of seal tube.















NF-20 Manual plastic cosmetic tube filling and sealing machine with factory price



Packaging & Shipping



We are using standard  export plywood cases. To ensure that the transport process will not damage and safety arrived in customers' hands.





Company information



Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.


Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide.

We are specializing in machinery including,

Pharmaceutical industry,

Food industry,

Chemical industry,

and provide customers with material, etc

 Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.

Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world

We have established business relationship with many directly customers and have many agencies from abroad.

We always stick to the principle that customers are the god, and quality is the first. Therefore, we stick to do all activities as per user’s demands.

Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.

NF-20 Manual plastic cosmetic tube filling and sealing machine with factory price

Our Services

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .





Warranty period:

 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
