US$ 19,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical, Other, Chemical, Food, Medical, Cosmetics
Packaging Type:
Case
Contact Supplier Request Quote Chat Now
Huizhou Pingfang Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Food, Medical, Other, Chemical, Food, Medical, Cosmetics
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power 1.5kw
Place of Origin Zhejiang, China
Brand Name PF
Model Number NF-80A
Dimension(L*W*H) 2000*1200*2400mm
Weight 1300KG
Certification CE SGS ISO
After-sales Service Provided Engineers available to service machinery overseas

     (NF-80A)High Speed Fully Automatic Tube Filling Sealing Machine





Product Description

This machine is widely used in the fields of toothpaste, cosmetics, medicine etc..  It is suitable for plastic composite tubes and aluminum plastic composite tubes to do some multi-color filling, special tube filling and special-shaped sealing.



Features

*  With functions of count and machine stop by fixed amount

*  Failure warning function, no tube warning function, overloading warning function.

*  No tube no filling

*  Automatic lot No. print, automatic tube out

*  Automatic tube supply, automatic color code fixing.

*  Automatic filling, and with the function of end cut-off for viscidity materials.

*  Drive part is closed on the underside of the platform, safe and no pollution.

*  Filling & Sealing part is put in the semi-closed & no static electricity sight cover, which is above the platform, so it is easy to observe and operate.

*  Machine surface is smooth, even, no blind corner, nontoxic, odorless, no pollution, and is easy to clean and maintain.

*  The machine, with compact construction is easy to operate so it is applicable in such fields as medicine, foodstuffs, daily chemical articles etc..



Technical parameters

Filling Speed

80/min (max)

Filling volume

5-250ml

Filling accuracy

≤ ±1%

Tube length

50-210mm

Tube diameter

φ13-50mm

Motor Power

1.5KW

Voltage

220V/380V

Dimention

2000*1220*2400mm

Weight

1300KG

Optional

saddle folding and sealing device,

which can do three-side and four-side folding through adjustment.

Optional

barrel heat perservation device

Optional

blending device inside the barrel

Optional

automatically controlled material feeding device (pump)

Optional

finished tube conveyor



Packaging & Shipping

Packing Details: Standard export wooden case package for tube filling sealing machine

Delivery Detail: 30 days

Pitures



NF-80A High Speed Fully Automatic Tube Filling Sealing Machine

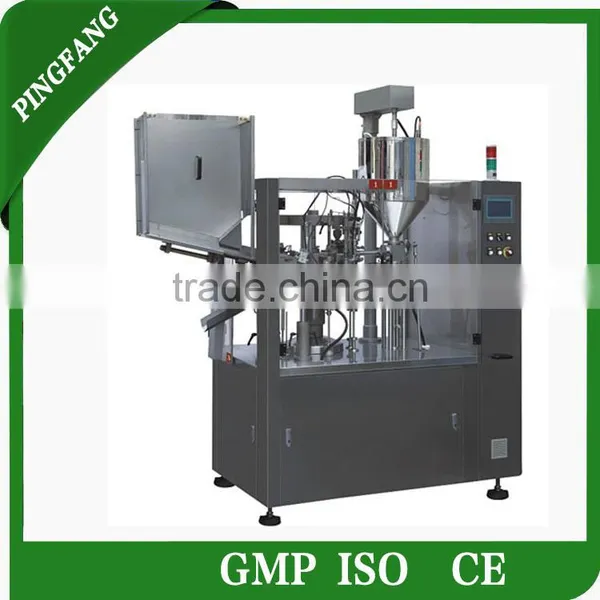

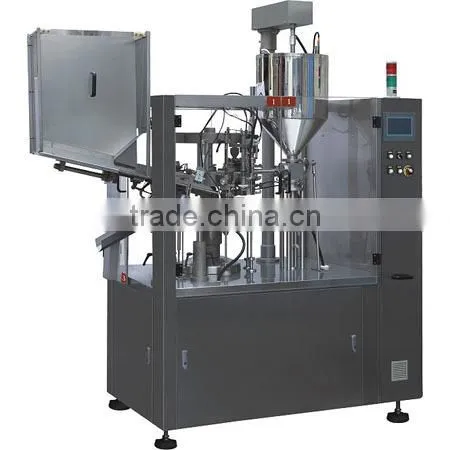

                                            Machine Show



 NF-80A High Speed Fully Automatic Tube Filling Sealing Machine

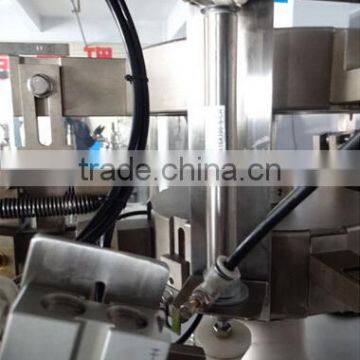

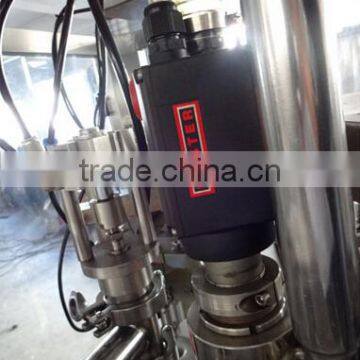

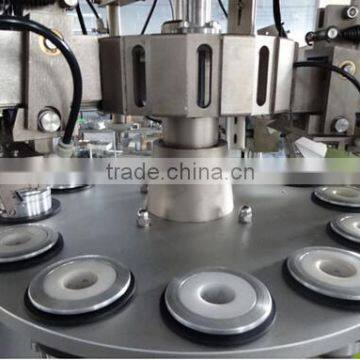

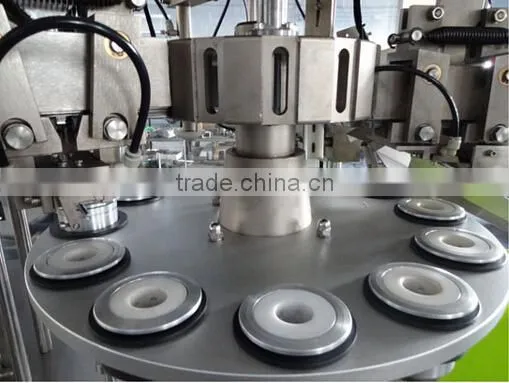

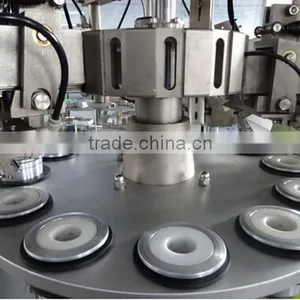

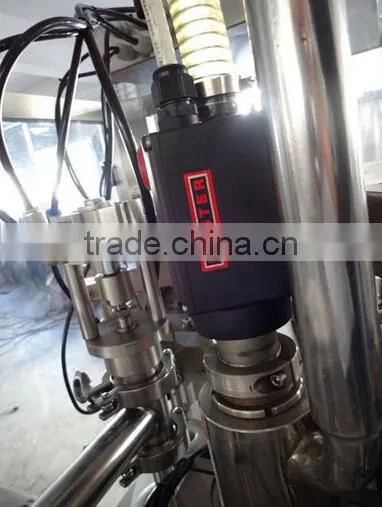

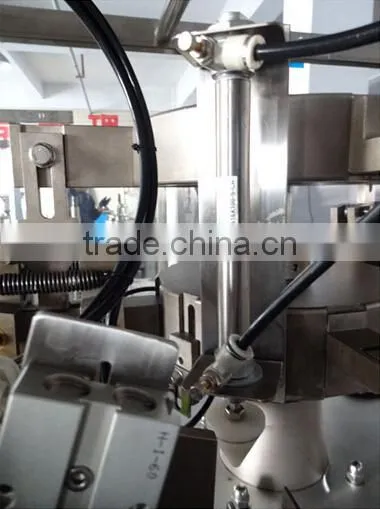

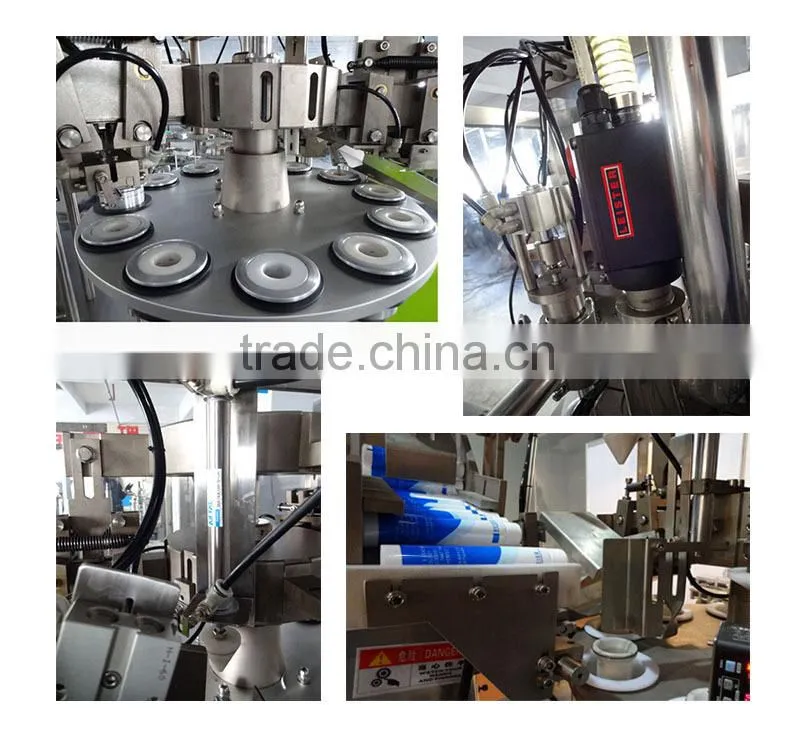

                                                                     Details



NF-80A High Speed Fully Automatic Tube Filling Sealing Machine



NF-80A High Speed Fully Automatic Tube Filling Sealing Machine

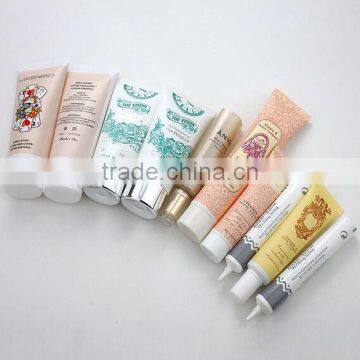

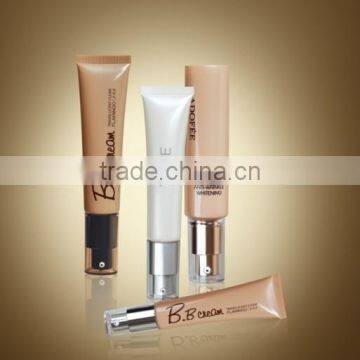

                                                  Samples





NF-80A High Speed Fully Automatic Tube Filling Sealing Machine

                                      Factory Workshop





                                 Canton Fair



 NF-80A High Speed Fully Automatic Tube Filling Sealing Machine         NF-80A High Speed Fully Automatic Tube Filling Sealing Machine           NF-80A High Speed Fully Automatic Tube Filling Sealing Machine

                                                                Certifications
