(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes

(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes photo-1
(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes photo-2
(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes photo-3
(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V(Optional)
Power 1.1KW, 1.1KW
Place of Origin Zhejiang, China
Brand Name PF
Model Number NF-60Z
Dimension(L*W*H) 2000*950*1900mm
Weight 850KG
Certification CE ISO SGS
After-sales Service Provided Engineers available to service machinery overseas

(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes





Product Description



This machine is widely used in the fields of chemical, medicaland etc..  It is suitable for mental tubes.

Features



*  With functions of count and machine stop by fixed amount

*  Failure warning function, no tube warning function, overloading warning function.

*  No tube no filling

*  Automatic lot No. print, automatic tube out

*  Automatic tube supply, automatic color code fixing.

*  Automatic filling, and with the function of end cut-off for viscidity materials.

*  Drive part is closed on the underside of the platform, safe and no pollution.

*  Filling & Sealing part is put in the semi-closed & no static electricity sight cover, which is above the platform, so it is easy to observe and operate.

*  Machine surface is smooth, even, no blind corner, nontoxic, odorless, no pollution, and is easy to clean and maintain.

*  The machine, with compact construction is easy to operate so it is applicable in such fields as medicine, foodstuffs, daily chemical articles etc..



Technical parameters



Filling Speed:

60/min (max)

Filling Volume:

5-250ml

Filling accuracy:

≤ ±1%

Suitable tube length:

50-210mm

Suitable tube diameter:

Φ13-50mm

Applicable to:

plastic composite tubes and aluminum plastic composite tubes

Tube feeding system:

obiquely hanging type automatic lining-up tube feeding storehouse

Power/Voltage

1.1KW/  220V/380V (Optional)

Net Weight:

850KG

Dimention:

2000(L)×950(W)×1900(H)mm

Optional:

externally allocated refrigerator

Optional:

barrel heat preservation device

Optional:

blending device inside the barrel

Optional:

automatically controlled feeding device (pump)

Optional:

finished tube conveyor



Pitures

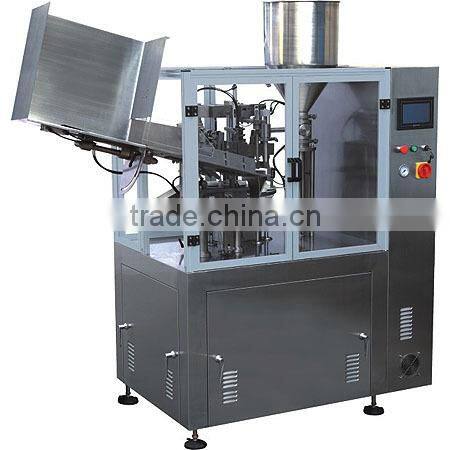

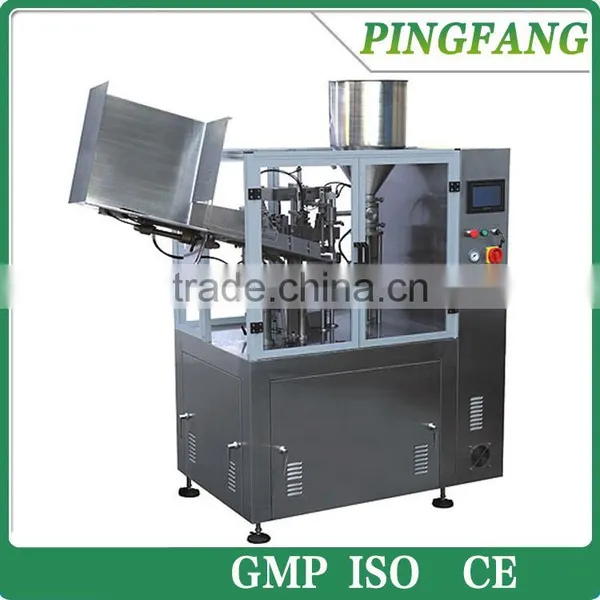

 Machine Show

(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes

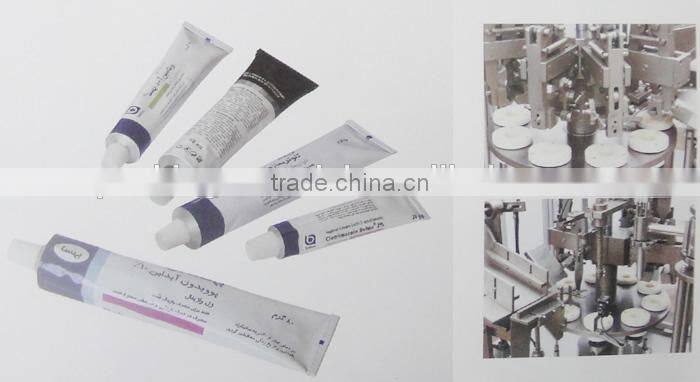

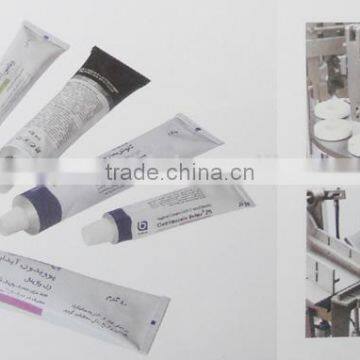

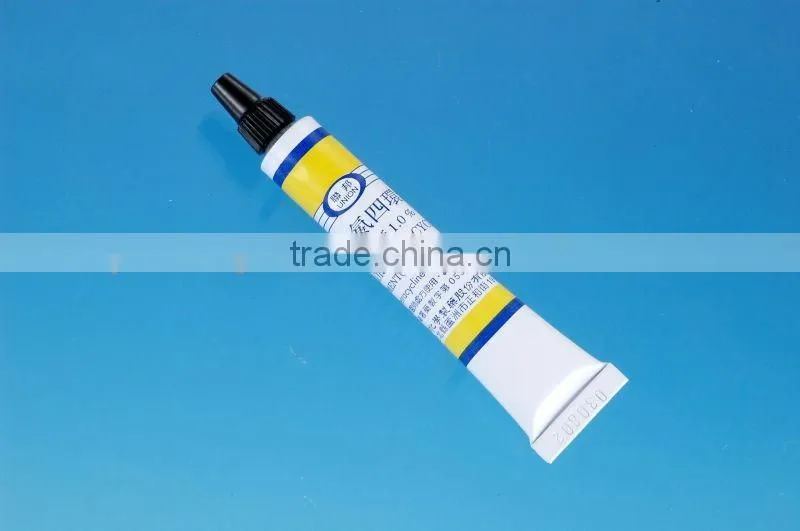

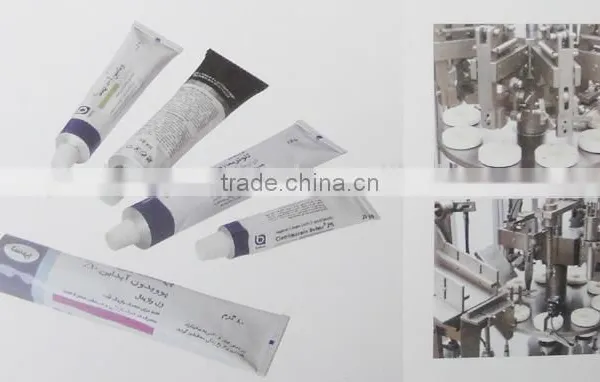

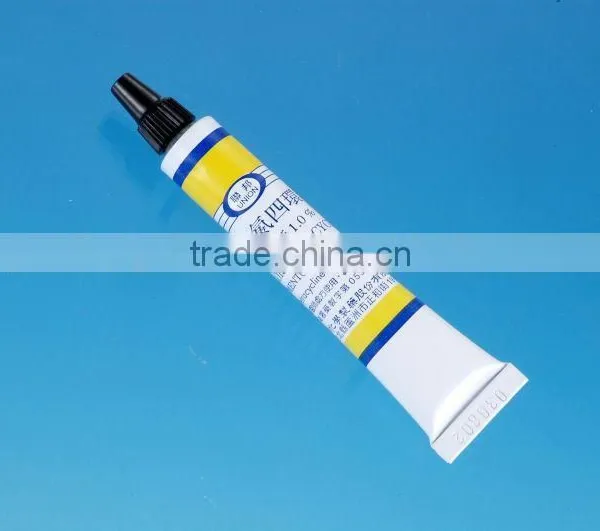

Samples



(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes





(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes



(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes

 Certifications

(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes   (NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes   (NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes





Canton Fair

(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes(NF-60Z) Fully Auto Aluminum Tube Filling and Sealing Machine 5-180ml; Suitable for Metal Tubes
