Product Details
| Condition | New | Application | Chemical, Medical | |
| Packaging Type | Case | Packaging Material | Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 1.1KW | |
| Place of Origin | Shandong, China | Brand Name | chuangjia | |
| Model Number | QGGF-60Z-C Mental Tube filling sealing machine | Dimension(L*W*H) | 1950*750*1850mm | |
| Weight | 900KG | Certification | GMP | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

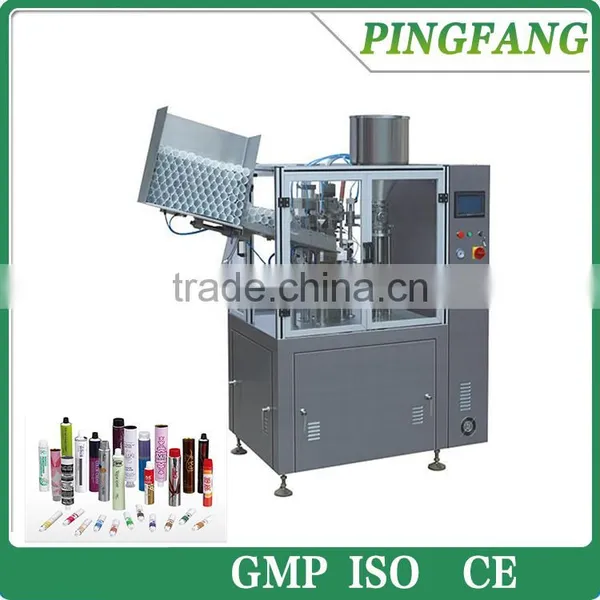

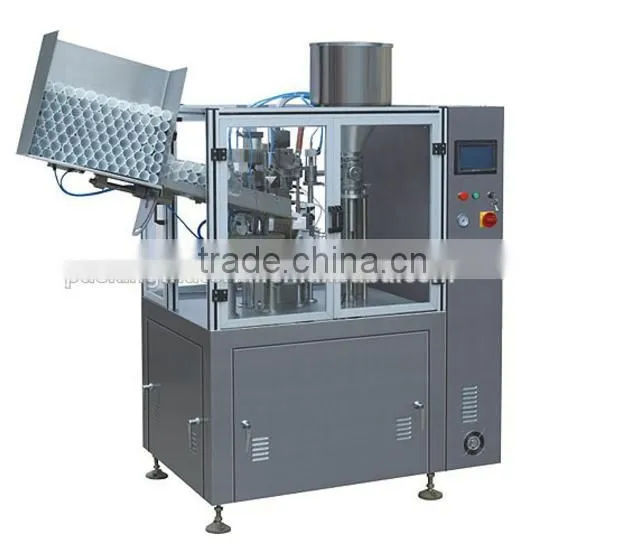

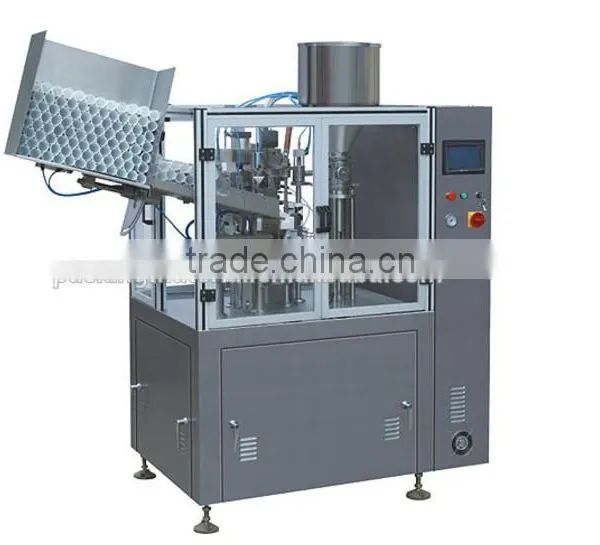

QGGF-60Z-C Mental Tube filling sealing machine
1.Application:

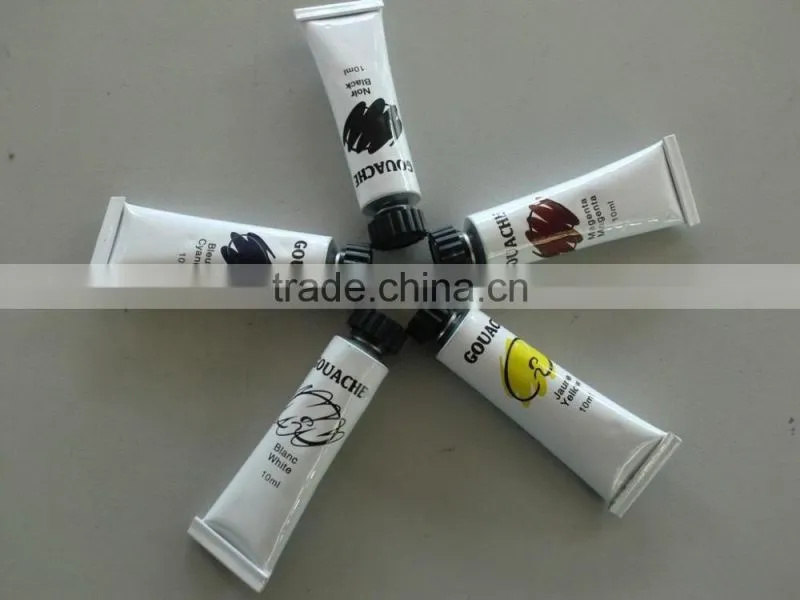

This machine is mainly used to fill the material into metal tube with fixed quantity and sealing the tube. It is widely used for the packing of chemical, cosmetic, gooey, AB glue, super glue, epoxy adhesive, skin cream, hair dye, shoeshine, toothpaste and others liquid and poultice materials.
2. Features:
*The filling volume is easy to adjust and convenient.
*The accuracy of adjust is higher and stability is good.
*Replacement of the base suitable for all kinds of metal hose filling and sealing figure is beauty and trim.
*The sealing is tightness. The materials of this machine are manufactured by high-quality stainless steel.
*It has the malfunction alarm and over loading stopping device.
*The filling nozzles in different in specification are provided for materials in different thickness.
3. Technical parameters:
Operation speed | 60/min(max) |
Filling volume | 1-120ml |
Filling precision | ≤±1% |
Suitable tube length | 50-180mm |
Suitable tube diameter | 10-28mm |
Standard configuration | obliquely hanging type automatic lining-up tube feeding storehouse |
Standard configuration | saddle folding and sealing device, which can realize three-side and four-side folding through adjustment |
Optional | jacket and barrel heat preservation device |
Optional | blending device inside the barrel |
Optional | Nitriding device before and after filling |
Optional | automatically controlled material feeding device(pump) |
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
