KPLG-40 Semi Automatic Aluminum Tube Making Filling & Sealing Machine
- Shanghai China
- Money Gram Credit Card PayPal
You May Like
-
NF-20B Semi Automatic Aluminum Plastic Tube Filling Sealing Machine, Manual Tube Filler
-
KPLG-40 Semi Automatic Aluminum Tube Filling and Sealing Machine for Factory Price
-
GFJX-3A Semi Automatic Type Aluminium Tube Filling and Sealing Machine
-
SGF-50 Fully Automatic Plastic Laminated Tube Filling & Sealing Machine With PLC and Touch Screen Control
-
FGF-5 Semi Auto Small Plastic Tube Filling & Sealing Machine for Medicinal, Cosmetics
-
NF-20 Manual Plastic Cosmetic Tube Filling and Sealing Machine With Factory Price
Product Details
| Condition | New | Application | Chemical, Commodity, Food, Medical | |
| Packaging Type | Other, Alu tube | Packaging Material | Metal, Other, Metal, Alu tube | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | AC220V±10% 50HZ, | Power | 0.75~1.1 kw | |
| Place of Origin | Jiangsu, China | Brand Name | PF | |
| Model Number | KPLG-40 | Dimension(L*W*H) | 1000mmX600mmX1700mm | |
| Weight | 280kgs | Certification | CE ISO | |
| After-sales Service Provided | No overseas service provided |
Product Description

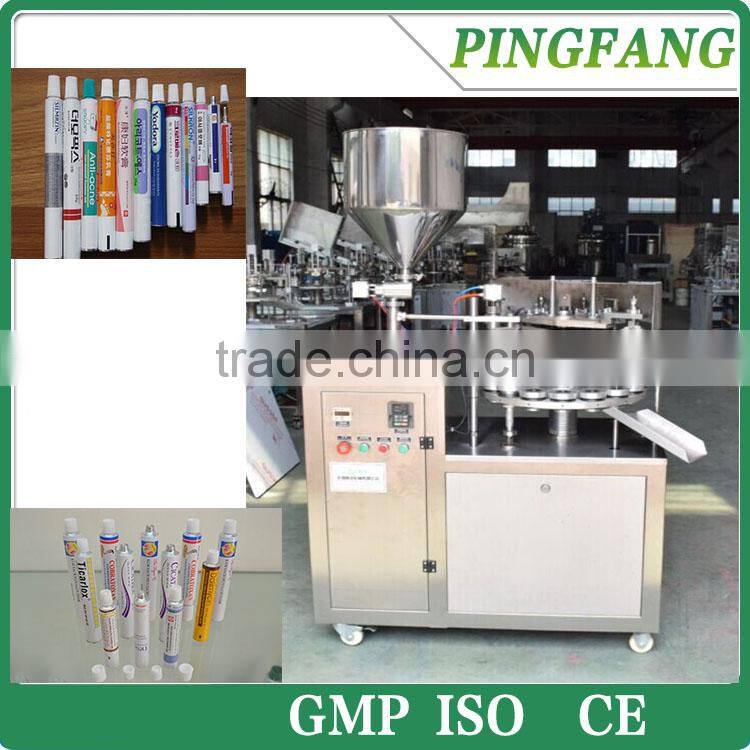

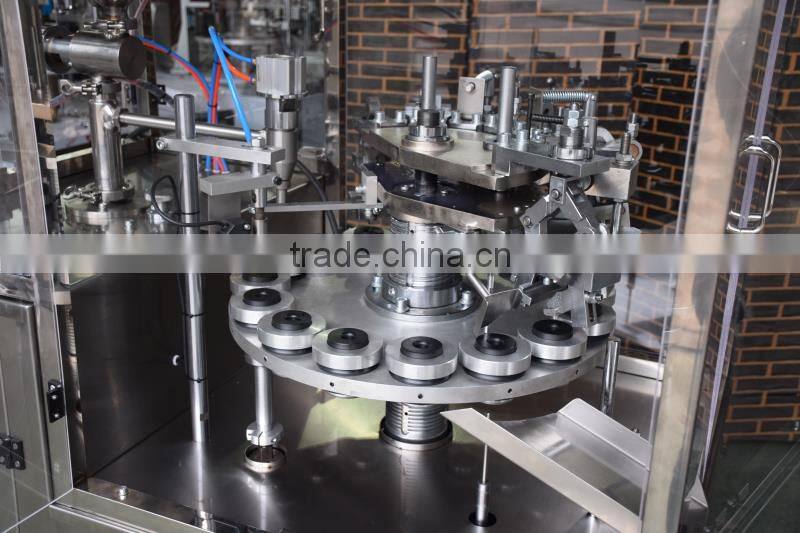

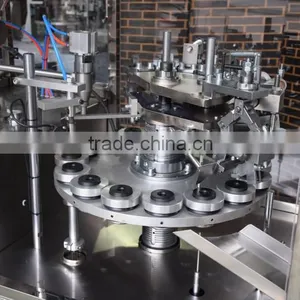

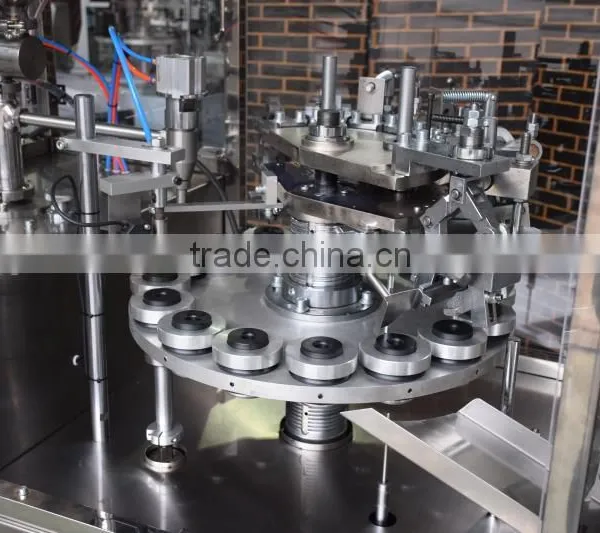

KPLG-40 Semi automatic Aluminum Tube making Filling & Sealing Machine
II. Detail Descriptions

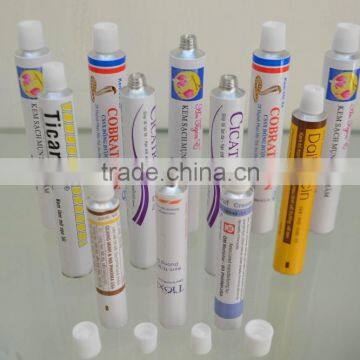

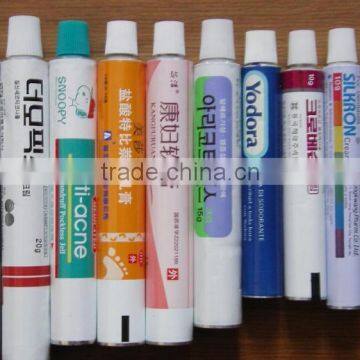

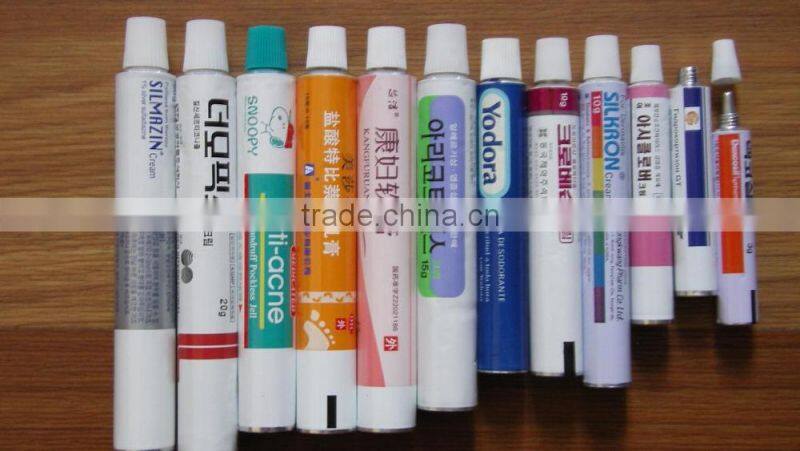

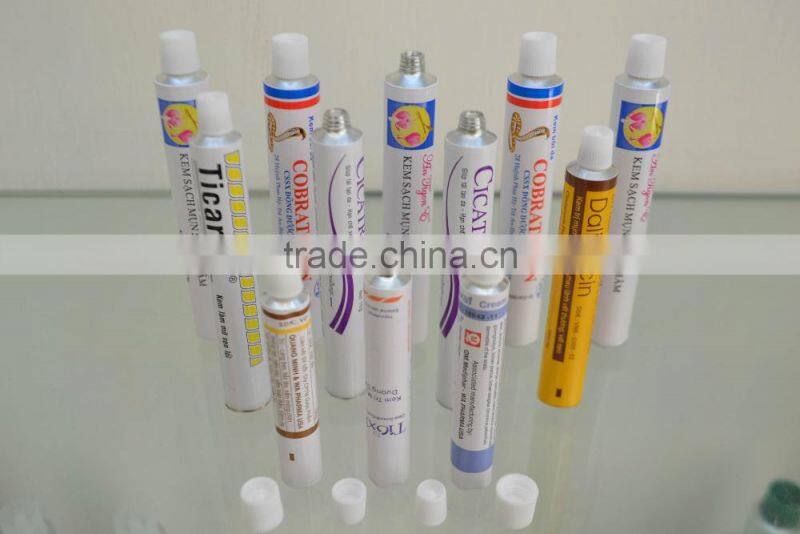

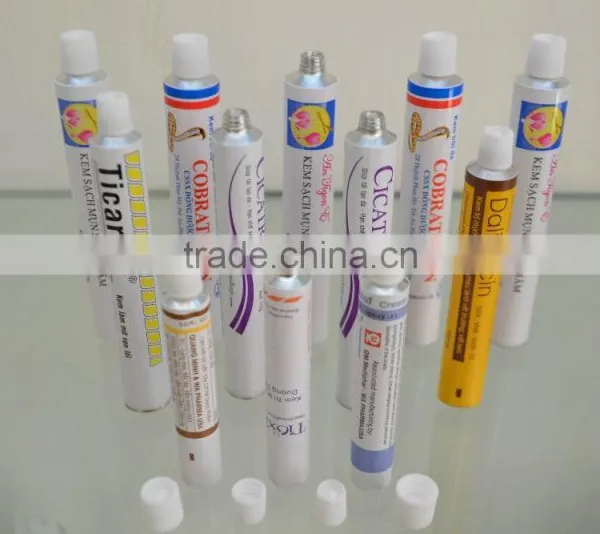

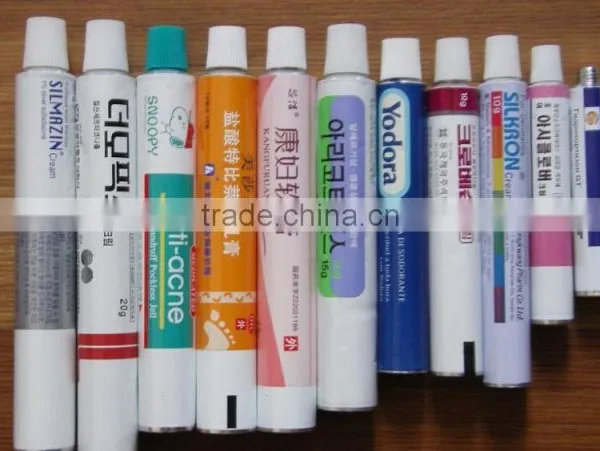

It is designed for aluminum tube and metal soft tube filling and sealing . It’s widely used in pharmacy, cosmetic and chemical industries.
III. Working process:

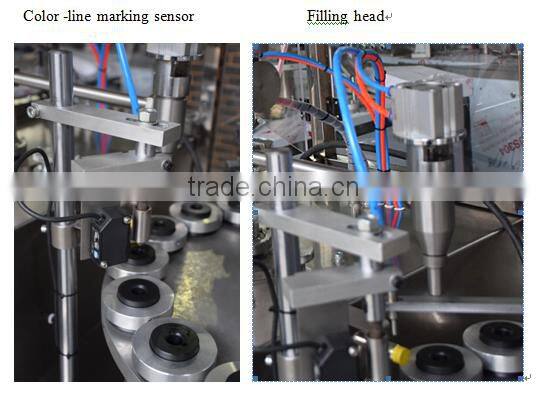

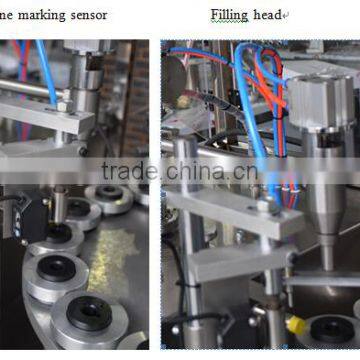

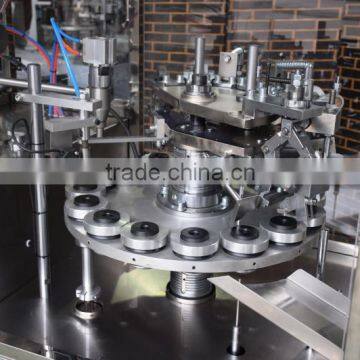

Manually put the metal tubes (max. 16 tubes) into the tube-holding base, the second-station for color-line marking detection. The third station is filling and then come to the tail bending station for folding, clamping, batch number printing and at last finished products discharging. Every tube should go through the whole procedure and then finished after filling and crimping .
Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, then filling system starts to fill the tube with fixed quantity. The tube is sealed by cam, which is steady, safe and with no air leaving. It can also achieve number/batch printed on the end, finally the tube is ejected.
IV .Features:
The machine, with a controllable filling volume or quantity, is featured with a reliable performance. The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfect and reliable sealing can be reached. The parts which touch material are made of stainless steel 304.
Specification:
1. Power Supply: AC220V±10% 50HZ, single phase(can be customized)
2. Work Temp: 5-50℃
3. Filling Quantity: 0-150 ml 150-250 ml.
4. Quantity Error: < 1%
5. Motor power: 0.75~1.1 kw
6. Compressed Air: pressure0.6~0.7Mpa Volume: 0.2m³/min
7. Capacity: 10~40tube/min (adjustable)
8. Dimension: 1000mm×600mm×1700mm
9. Weight: 280kg
We are using standard export plywood cases. To ensure that the transport process will not damage and safety arrived in customers' hands.

Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide.
We are specializing in machinery including,
Pharmaceutical industry,
Food industry,
Chemical industry,
and provide customers with material, etc
Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world
We have established business relationship with many directly customers and have many agencies from abroad.
We always stick to the principle that customers are the god, and quality is the first. Therefore, we stick to do all activities as per user’s demands.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.

Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
