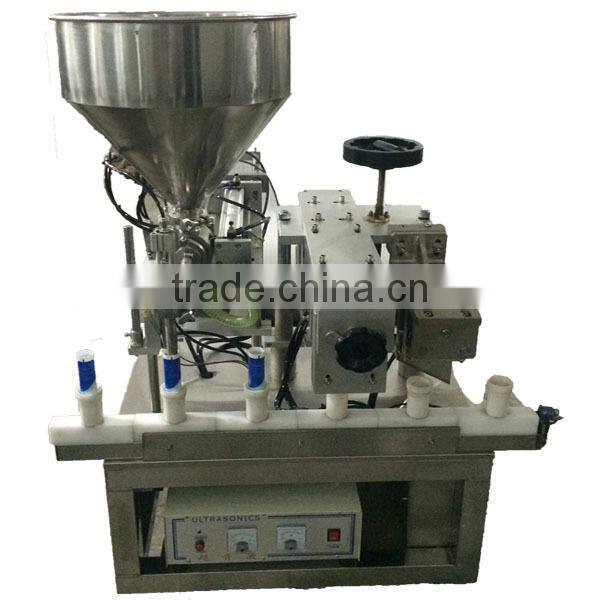

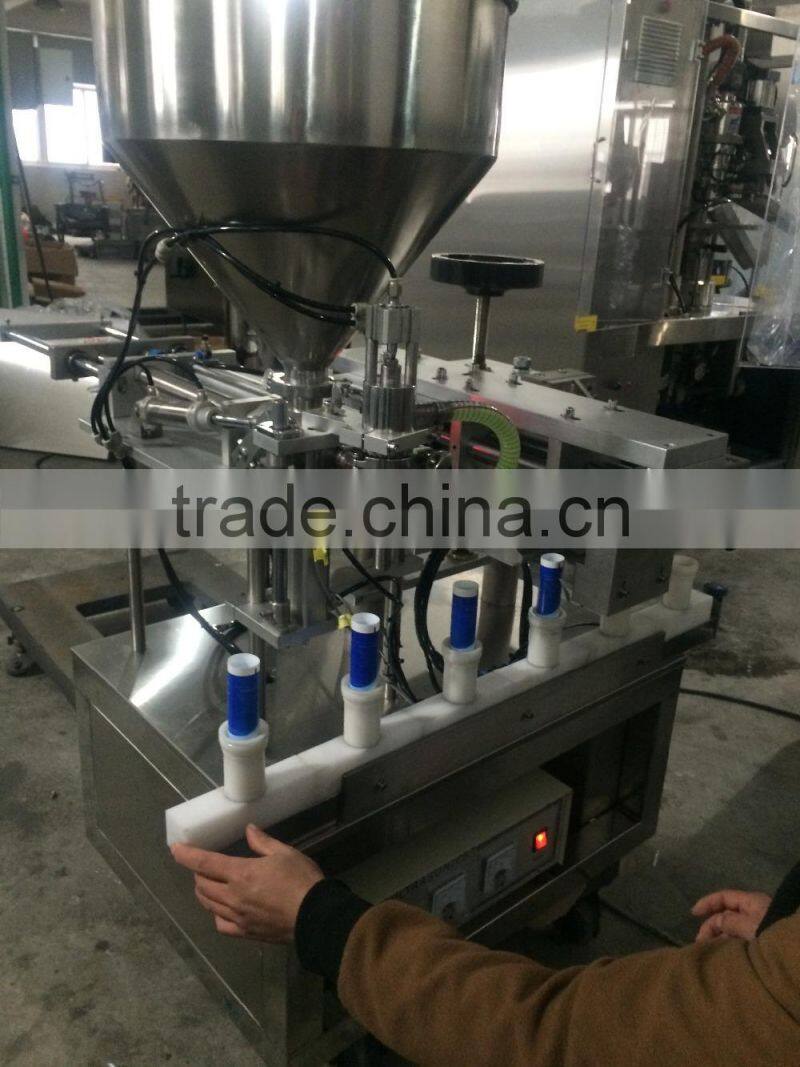

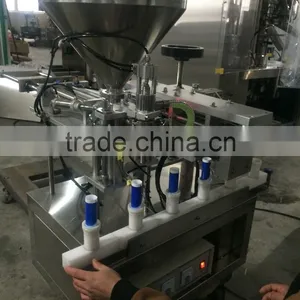

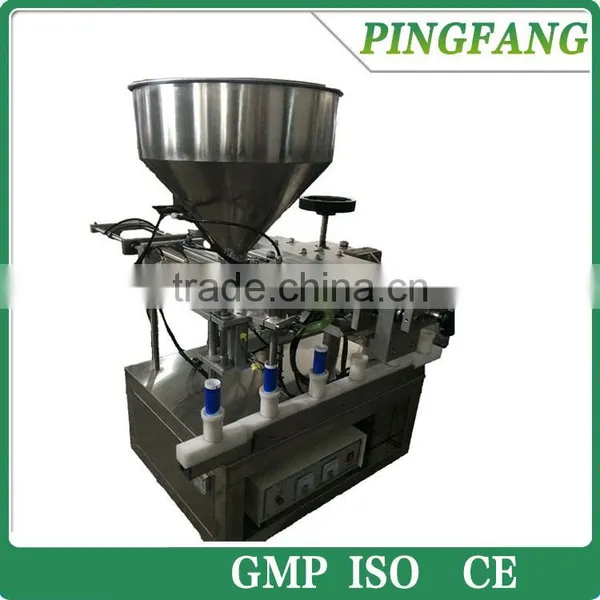

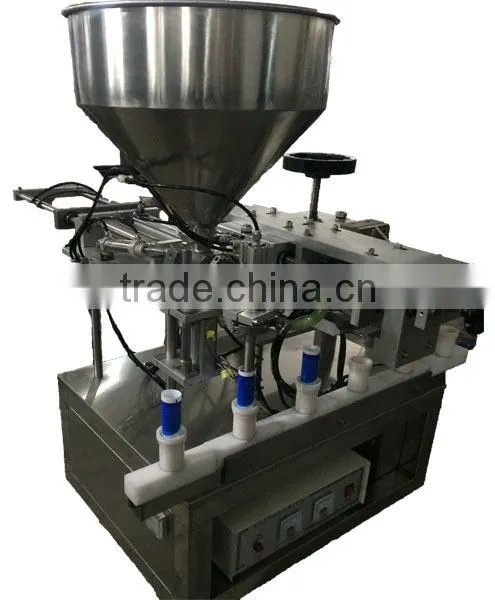

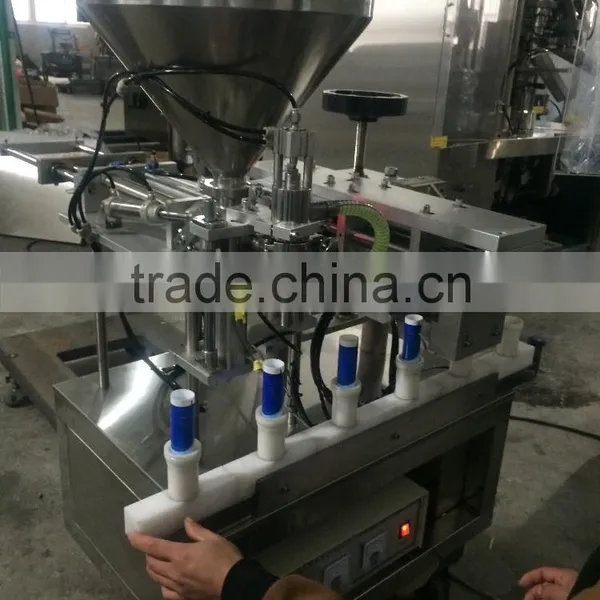

NF-20B Semi Automatic Aluminum Plastic Tube Filling Sealing Machine, Manual Tube Filler
l Manual tube feeding
l Automatic filling
l Automatic lot No. print
l Automatic ultrasonic tube end sealing
l Automatic tube sealed end cutting
l Manual tube discharging
Configuration Standard | Technical Parameters |
| |
Main Machine Landing Area | (about) 0.4m2 |
| |
Working Area | (about)4 m2 |
| |
Working Area | (about)2 m2 |
| |

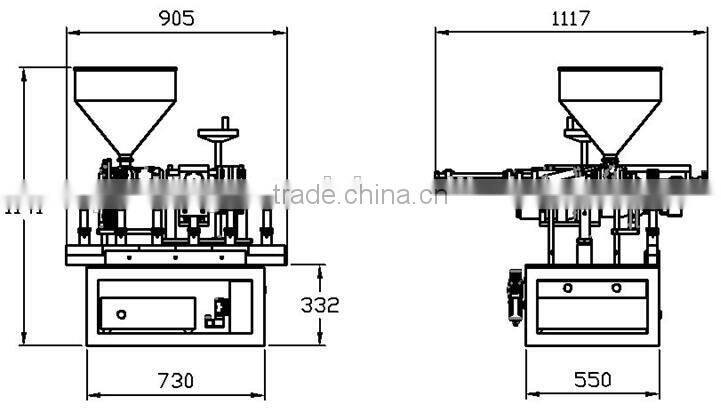

Whole Machine (L×W×H) | 730*550*1141mm |
| |
Weight | (about)100Kg |
| |
Case Body Material | 304 | ||
Frame Below Platform | Stainless Steel | ||
Case Body Shape | Square-shape | ||
Power Supply | 50Hz/220V 1P | ||
Main Motor | 0.5KW | ||
Jacket barrel heating power | 2 KW | ||
Jacket barrel blending power | 0.18 KW | ||
Operation Speed | 5-20/min/max | ||
Filling Range | 3-250ml | ||
Suitable Tube Length | 50-210mm | ||
Suitable Tube Diameter | 12-50mm | ||

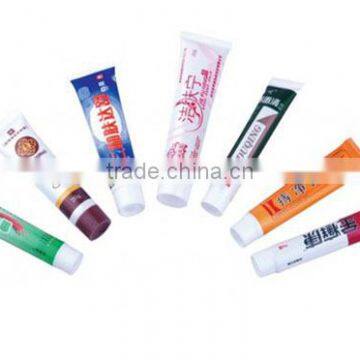

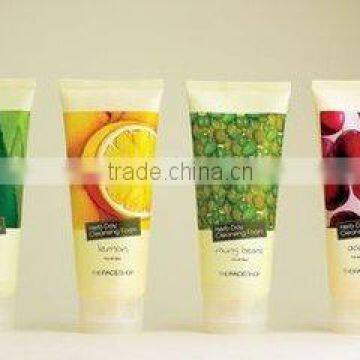

Suitable Packing Material | Aluminum-plastic composite tube and Plastic composite tube | ||
Material contacting with filling material | 316L Stainless Steel | ||
Auto stamping device | Single side printing at the end of seal tube | ||
