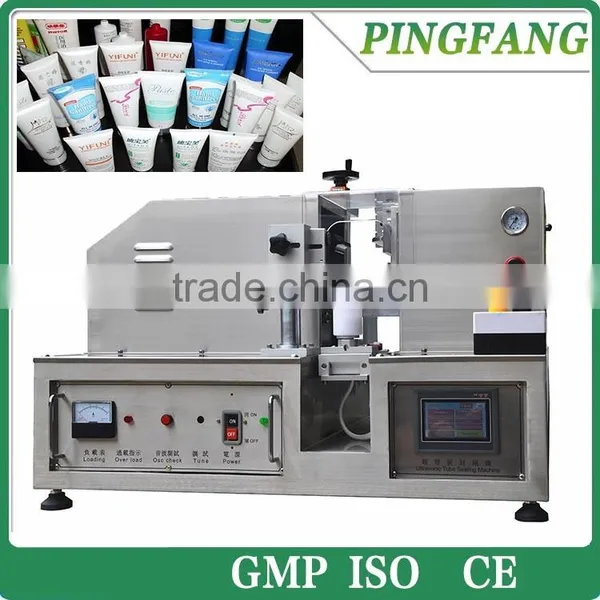

Hx-007 Semi-Automatic ultrasonic plastic soft
Tube Sealing Machine
Auto Tube orientation , Auto Sealing ,Auto date coding and trimming

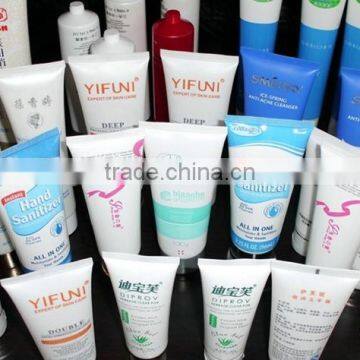

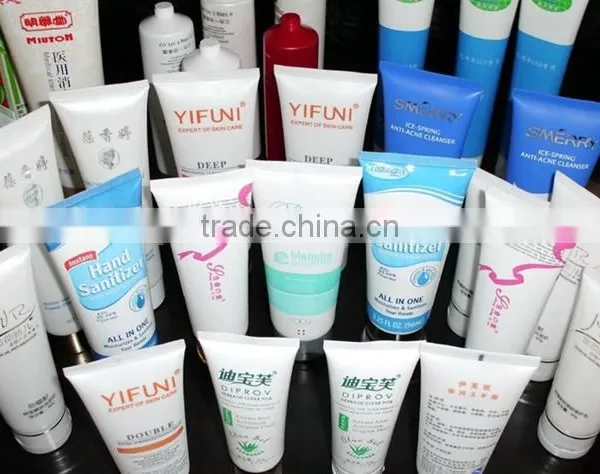

Apply to Plastic tube ,Aluminum and Plastic tube .
| Items | Parameter |
| Model | HX-007 |
| Power supply | AC220V/50Hz |
| Ultrasonic power | 1500W |
| Frequency | 20Khz |
| Tube length | 50-250mm |
| Tube diameter | 10-50 mm |
| N.W | 98KGS |
| G.W | 115KGS |
| Machine size | 850×600×650mm |
Characteristic:
PLC control
American Ultrasonic System
More strong
More stable
Auto tube orientation
Auto tube orientation

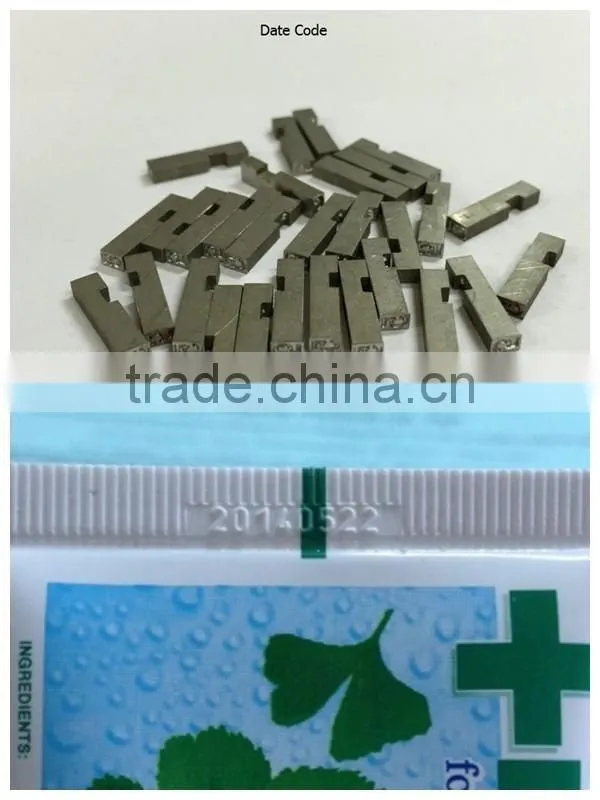

Auto date printing
Auto trimming
1. Easy to operate and maintain.
2. Automatic positioning, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. The machine small enough to be put on worktable.

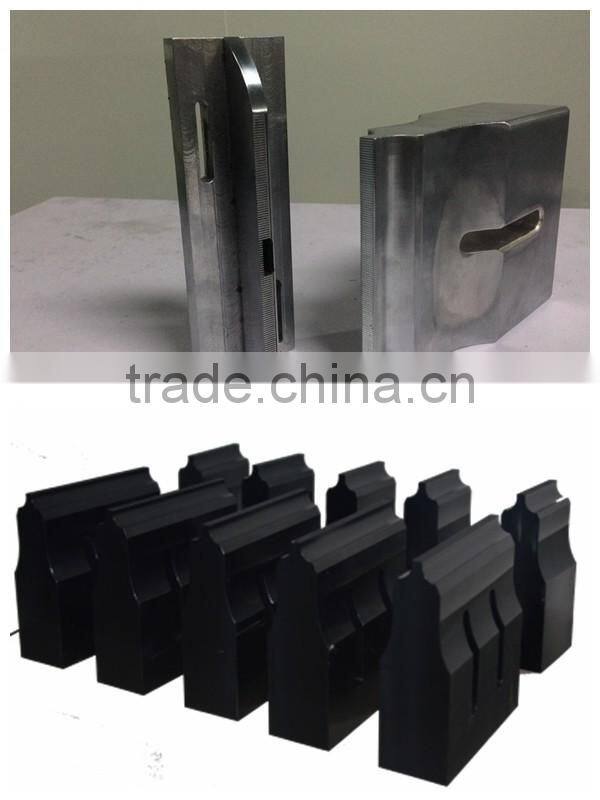

5. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment
8. Ultrasonic Tube Sealer can be work in time, not need wait the heat time.
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
