RGF-160 Fully Automatic Tube Filling Sealing Machine for Medicine, With 2 Filling Heads
- Shanghai port China(Mainland)
- T/T Money Gram Credit Card
You May Like
-
RGF-80Z-B High Speed Liquid Cream Filling Sealing Machine With Metal Tubes
-
QGGF-60Z-C Auto Metal Tube Filling Sealing Machine for Skin Cream Hair Dye Chemical
-
NF-80A Fully Automatic Plastic Tube Filling and Sealing Machine Made in China
-
High Performance NF-160 Automatic Tube Filling and Sealing Machine
-
New Type NF-60A Fully Automatic Aluminium Tube Filling and Sealing Machine
-
Wholesale NF-60 Semi-automatic Manual Tube Filling and Sealing Machine Made in China
Product Details
| Condition | New | Application | Chemical, Food, Medical, Other, Chemical, Food, Medical, Cosmetics | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 2.2KW | |
| Place of Origin | Shandong, China | Brand Name | PF | |
| Model Number | RGF-160 | Dimension(L*W*H) | 2400*1500*2300 | |
| Weight | 1300KG | Certification | CE SGS ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

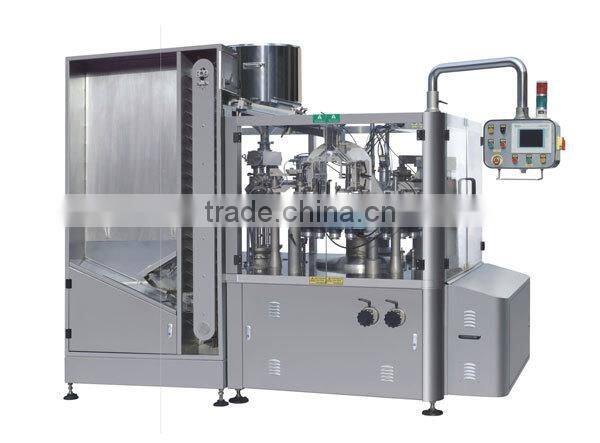

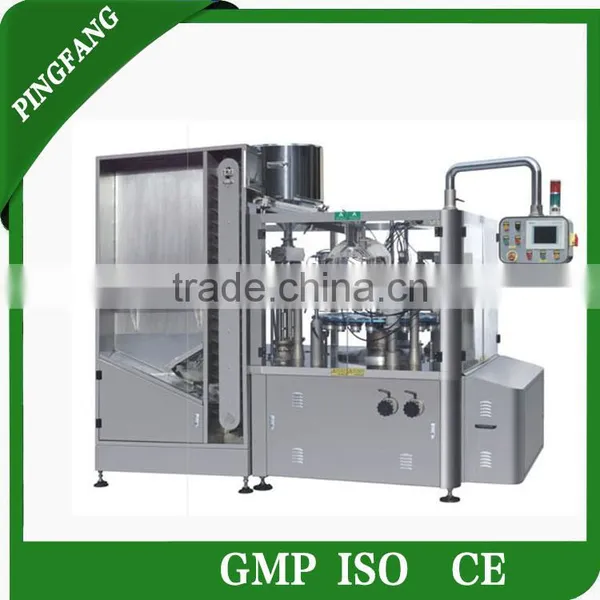

RGF-160 Fully Automatic tube filling sealing machine for medicine, with 2 filling heads
This machine is used for filling all kinds of cream and fluid materials into the soft plastic tubes, metal tubes and plastic- aluminum laminated tubes, sealing and cutting the end of the tubes, and pressing date or series numbers on the end. It is widely used in daily chemical, pharmaceutics, food, chemical industries, etc..
* Applicable to plastic composite tubes, aluminum plastic composite tubes and metal tubes (optional)
* Provided with 2 filling heads and a set of double-branch tube feeding system
* Adopts PLC control, automatically tube feeding and positioning
* Seals the tube firmly in a high efficiency
Operation speed | 160/min(max) |
Filling volume | 1-300ml |
Filling precision | ≤±0.5% |
Suitable tube length | 50-240mm |
Suitable tube diameter | 10-50mm |
Tube feeding device | Double-branch synchronous tube feeding box |
Optional | externally allocated refrigerator |
Optional | special-shaped sealing devices(wave type sealing device, arc sealing device, T-shaped punching hole sealing device, metal pipe folding and sealing device) |
Optional | jacket and barrel heat preservation device |
Optional | blending device inside the barrel |
Optional | Nitriding device before and after filling |
Optional | automatically controlled material feeding device(pump) |
Optional | finished tube conveyor |
Packing Details: Standard export wooden case package
Delivery Detail: 30 days
Machine Show

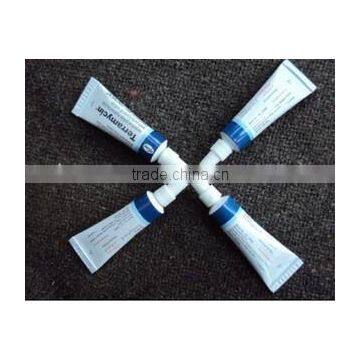

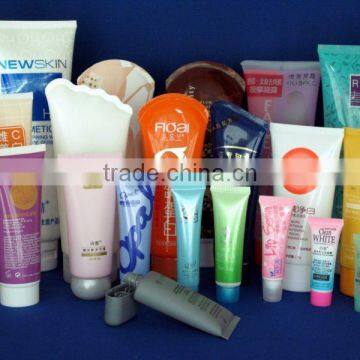

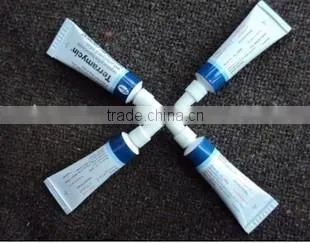

Samples
