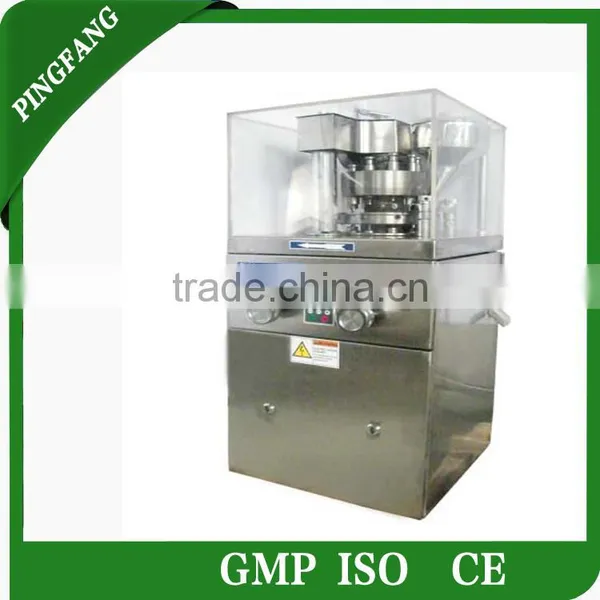

ZP-5A 7A 9A rotary tablet press, professional pill making machine for sale
1. technique parameters:
| MODEL | ZP 5A | ZP 7A | ZP 9A |
| No. of turret press dies (pair) | 5 | 7 | 9 |
| Max operating pressure | 40KN | 40KN | 40KN |
| Max. tablet pressing diameter | 12mm | 12mm | 12mm |
| Max. tablet pressing thickness | 6mm | 6mm | 6mm |
| Max. feeding depth | 15mm | 15mm | 15mm |
| Max. tablet pressing output | 9000pcs/h | 12600pcs/h | 16200pcs/h |
| Turret operating diameter | 200mm | 200mm | 200mm |
| Turret rotation speed, turn/min | 0-30 | 0-30 | 0-30 |
| Middle press die diameter | 26mm | 26mm | 26mm |
| Middle press die height | 22mm | 22mm | 22mm |
| Upper/lower press lever diameter | 22mm | 22mm | 22mm |
| Upper/lower press lever length | 115mm | 115mm | 115mm |
| Visual dimension, cm | 48*63.5*110 | 48*63.5*110 | 48*63.5*110 |
| Machine weight | 230KG | 230KG | 230KG |
| Motor power | 1500W | 1500W | 1500W |
2. Application:
3. Features:
A.The machine is compliance with the GMP requirement on the production of pharmaceuticals.
B. The compression parts is entirely separated from the driving mechanisms
C. All spare parts to be in contact with the pharmaceuticals are made of stainless steel or the surface being treated specially for non-toxicity & corrosion proof
D. The compression area is enclosed with transparent organic glass. To prevent contaminates, The compression area can be specially treated. All surfaces being smooth & easy to clean.
E. Machine speed, the depth of filling, the thickness of the tablet could be adjusted.
F. The mechanical buffer unit will prevent punches and apparatus from overload damage.
4. Company introduce:
Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery
Our product include:
1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.
2). Tester equipment in laboratory
3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on

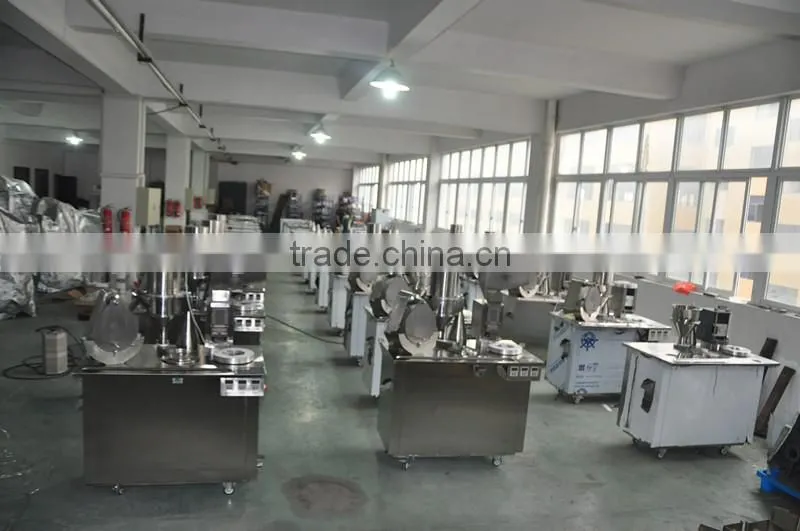

5. Our factory:
6. Our customers:
7. Other machines:
8. Pill samples:
9. Certificate
