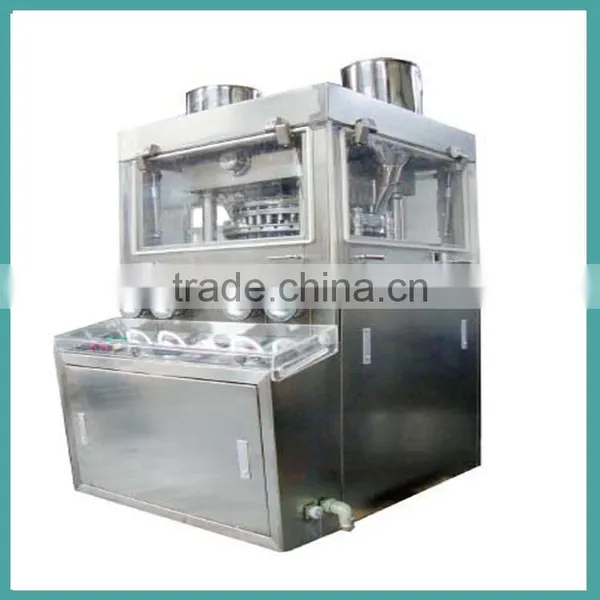

ZP35/37/41D Rotary Tablet Compression machine
1. technique paramete
Model | ZP35D | ZP37D | ZP41D |
Dies(sets) | 35 | 37 | 41 |
ure(Kn) | 80 | 80 | 80 |
Max.Dia.of Tablet(mm) | 13 | 13 | 13 |
Max.Depth of fill(mm) | 15 | 15 | 15 |
Thickness of largest tablet(mm) | 6 | 6 | 6 |
Turret speed(r/min) | 14-37 | 14-37 | 14-37 |
Production Capacity(pc/h) | 150000 | 160000 | 170000 |
Motor(kW) | 4 | 4 | 4 |
Overall dimensions(mm) | 980*1240*1690 | 1230*950*1670 | 1230*950*1670 |
Net weight(kg) | 1700 | 1700 | 1700 |
2. Application:
3. Features:
A. Machine meet GMP and made in stainless steel. The inner tablet press surface already be special treated, which could keep surface luster and prevent from being polluted crossly.
B. Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.
C. Machine speed could be adjusted.
D. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. Combining machine with electricity. Equipped with touching key and screen. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
E. Ransmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
F. A power suction unit is attached to take the residual power during operation, so that blockage powder can be collected and be reused.
G. Mould is generally same with ZP19, ZP35 and ZP37 Tablet press machine.
4. Company introduce:
Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery
Our product include:
1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.
2). Tester equipment in laboratory
3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on
5. Factory and exhibition photos:
Canton Fair show
Working room
6. Relation spare parts:
7. Other machines:
8. Pill samples:
9. Certificate
