Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Tablet Equipment > ZPW20 Stainless Steel Candy Rotary Tablet Press Machine
US$ 36,000 - 38,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China( Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZP-11 ZP-18 Rotary Tablet Press Machine, Real Pill Press ManufacturerUS$ 6,000 - 7,000MOQ: 1 Unit -
ZPY27B ROTARY TABLET PRESS, Competitive Price With High QualityUS$ 20,000 - 30,000MOQ: 1 Unit
-
ZP-17B Rotary Tablet Press, the Most Popular Skillful Manufacture for Tablet MakingUS$ 6,000 - 8,000MOQ: 1 Unit
-
GMP Standard Sub-High Speed Tablet Press (ZPG55) for SaleUS$ 40,000 - 44,000MOQ: 1 Unit
-
Brand New High Quality ZP-7/9/10 Small Rotary Tablet Press, Lab EquipmentNegotiableMOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
PF
Model Number
ZPW
Type
Rotary Tablet Press
Production Capacity
7000-14000pc/h
Max. Pressure(KN)
80KN
Max. Tablet Thickness(mm)
10mm
Max. Tablet Diameter(mm)
12mm
Voltage
380V
Power(W)
4KW
Weight
1600kg
Dimension(L*W*H)
920*970*1900mm
Certification
CE/ISO
After-sales Service Provided
Engineers available to service machinery overseas

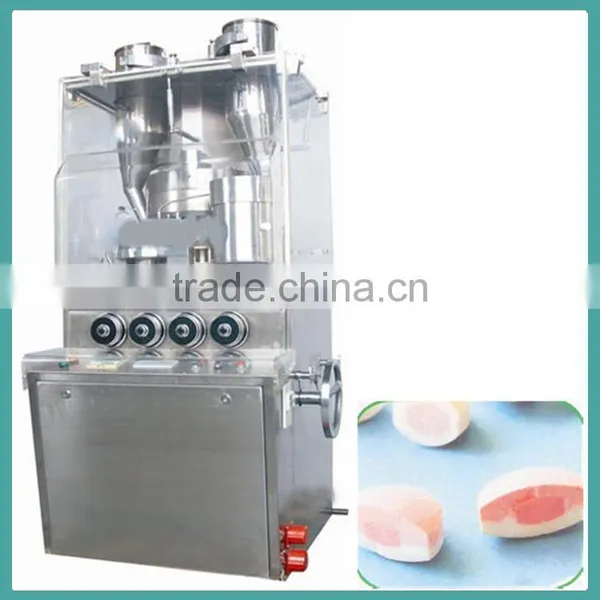

ZPW20 Rotary Tablet Press Machine
1. technique paramete
Dies | 20sets |
Max. Pressure | 80KN |
Max. Dia. of Tablet | 12mm |
Dia. of inside Tablet | 5.5-9mm |
Max. Depth of Fill | 18mm |
Turret Speed | 5-14r/min |
Production Capacity | 7000-14000pc/h |
Power | 4KW |
Overall Size (L*W*H) | 920*970*1900mm |
Net Weight | 1600kg |
2. Application:
The covered tablet is a novel form of tablet emerging in the world in recent years. Model ZPW20 Rotary Covered Tablet Press is an electronic enhanced integrated product developed by this company on the basis of absorption and digestion of the international advanced technologies. It is also the first covered tablet press produced in our country, filling a domestic blank in this area.
3. Features:
A. Model ZPW20 Rotary Covered Tablet Press adopts a fully enclosed structure with the operation compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel, which is in compliance with the GMP requirement on the production of pharmaceuticals.
B. The machine adopts the adjustment of speed by means of frequency inversion which is easy in operation and wide in the scope of adjustment of speed. Disintegrated structure is adopted for the turret, with the top of the table directly in contact with the pharmaceutical materials made of stainless steel and hardened by special technological process, resulting in the remarkable improvement in fatness and resistance to wearing.
C. The lubrication system of this machine can ensure the oil supply to every lubricating point, reducing the wearing of the worm-gear box and the tracks and extending the working life of the machine.
D. The electrical part adopts programmable control, with multi automatic control functions such as stopping of the machine on overload, insufficiency in the core material hopper ect. It has a double detection mechanism by photo-electric switch and pressure sensor, to ensure the automatic rejecting of any tablet without a core.
E. This machine can be used as a normal tablet press or for the production of double layer tablets after a slight alteration. When used to produce the covered tablets, attention should be drawn to the hardness and the precision of the dimension of the core tablet.
Model ZPW20 Rotary Tablet Press is also applicable in other industries such as foodstuff and chemical. In addition to the pharmaceutical industry to meet the need for the compression of granular material that are not to be mixed or for the protection from oxidation control of light avoidance or delay of release of medicine.
4. Company introduce:
Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery
Our product include:
1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.
2). Tester equipment in laboratory
3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on
5. Factory and exhibition photos:
Canton Fair show
Working room
6. Relation spare parts:
7. Other machines:
8. Pill samples:
9. Certificate
