ZPY27B ROTARY TABLET PRESS, Competitive Price With High Quality

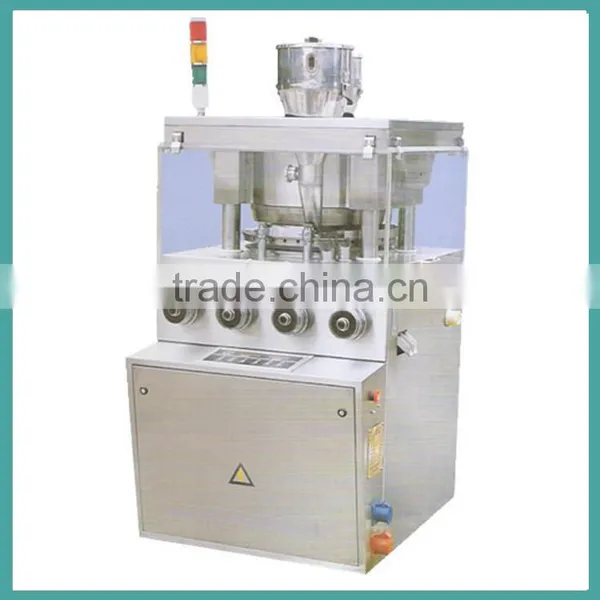

ZPY27B ROTARY TABLET PRESS, Competitive Price With High Quality photo-1
US$ 20,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China( Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name PF
Model Number zpy27b
Type Rotary Tablet Press
Production Capacity 90,000pc/h
Max. Pressure(KN) 100KN
Max. Tablet Thickness(mm) 8mm
Max. Tablet Diameter(mm) 25mm
Voltage 380V
Power(W) 5.5kw
Weight 1800kg
Dimension(L*W*H) 1100*940*1755mm
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

                        ZPY27B ROTARY TABLET PRESS

1.   technique paramete



Dies (sets)
27
Max. pressure (kN)
100
Max. dia. of tablet (mm)
Φ25
Max. depth of fill (mm)
17
Max. thickness of tablet (mm)
8
Turret speed (r/min)
5~28
Max. production capacity
(tablets/hour)
90,000
Motor (kW)
5.5
Net weight (kg)
1800
Covering area (mm)
1100×940
Height including the hopper (mm)
1755
Height without the hopper (mm)
1500




















2. Application:

The machine is a new generation product which is developed form the former ZP27 Tablet Press of my company, it is a double-press type, continuously automatic rotary tablet press for pressing tablets, it is widely applicable to industries such as pharmaceutical, chemical, foodstuff and electron for pressing the granular materials into all kinds of round tablets, irregular tablets and ring shaped tablets.



3. Features:

1. The machine is compatible with the GMP requirement, the outside part of the machine is fully enclosed, the material of the cover and the inside tablet face of the tablet-pressing room is stainless steel, the turret face has been disposed specially, nontoxic and smooth and abrasion proof.
2. The machine has a greatly large power and pressure, and it has two pieces of pre-pressing tracks .It is stable in operation and is applicable to press hard-pressing powder.
3. An overload protection unit is including in the system to avoid the damage of the apparatus, when overload occurs, the machine stops automatically, and at the same time the alarm light turns on.
4. The speed adjustment of the driver is controlled by the frequency conversion device, it is easily to operated, safety and accurate.
5. The centralized lubrication system of the machine can ensure the oil supply to every lubricating part by the intellectual lubricating pump, and it is very reliable.
6. To exert human nature ideas, the machine is easily to be cleaned and maintained.
7. The transmission system is located inside the wormgear box under the main body, and it is a fully independent part. It cannot be cross-polluted, and the transmission system is fully lubricated so that the noise and the abrasion are greatly reduced.
8. With the appliance of utility model patent, the ways to fix the lower track and lower pressure rollers are especial so that be remounted and maintained conveniently and fast.


4. Company introduce:

Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery



Our product include:

1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.

Welcome to scan our website:

2). Tester equipment in laboratory

3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on



5. Factory and exhibition photos:

ZPY27B ROTARY TABLET PRESS, competitive price with high quality

Canton Fair show
ZPY27B ROTARY TABLET PRESS, competitive price with high quality

ZPY27B ROTARY TABLET PRESS, competitive price with high quality

Working room



6. Relation spare parts:
ZPY27B ROTARY TABLET PRESS, competitive price with high quality



7. Other machines:

ZPY27B ROTARY TABLET PRESS, competitive price with high qualityZPY27B ROTARY TABLET PRESS, competitive price with high quality

8. Pill samples:

ZPY27B ROTARY TABLET PRESS, competitive price with high qualityZPY27B ROTARY TABLET PRESS, competitive price with high quality





9. Certificate

ZPY27B ROTARY TABLET PRESS, competitive price with high qualityZPY27B ROTARY TABLET PRESS, competitive price with high qualityZPY27B ROTARY TABLET PRESS, competitive price with high quality
