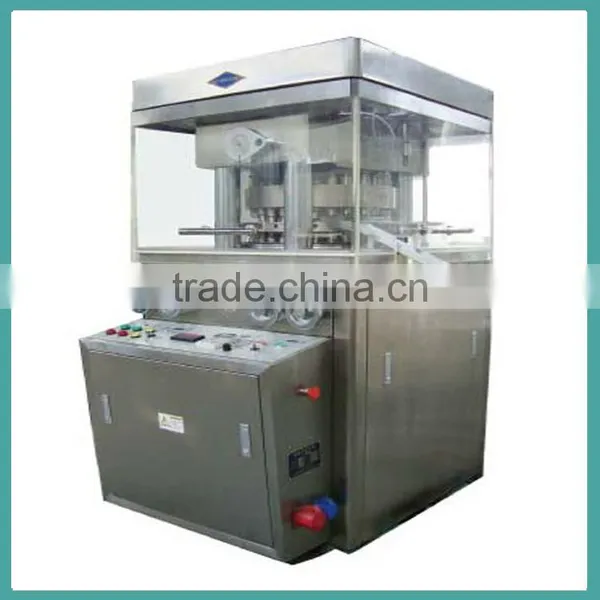

ZP-23 25 27 rotary tablet press machinery
1. technique paramete
TYPE | ZP-23 | ZP-25 | ZP-27 |
Dies(sets) | 23 | 25 | 27 |
ure(Kn) | 100 | 100 | 100 |
Max.Dia.of Tablet(mm) | 45 | 40 | 30 |
Max.Thickness of Tablet(mm) | 15 | 15 | 15 |
Max.Depth of fill(mm) | 30 | 30 | 30 |
Max.output of one-layer tablets(pcs/h) | 69000 | 75000 | 81000 |
Rotational diameter(mm) | 445 | 445 | 445 |
Rotational speed of revolving table(r/min) | 10-25 | 10-25 | 10-25 |
Diameter of middle mould(mm) | 52 | 52 | 52 |
Highness of middle mould(mm) | 38 | 38 | 38 |
Length of up and down punch pole(mm) | 45 | 45 | 45 |
Length of up punch pole(mm) | 175 | 175 | 175 |
Length of down punch pole(mm) | 180 | 180 | 180 |
Overall dimensions(mm) | 1000 X 1250 X 1900 | 1000 X 1250 X 1900 | 1000 X 1250 X 1900 |
Net weight(kg) | 3200 | 3200 | 3200 |
Motor model | YU132M4A | YU132M4A | YU132M4A |
Motor(kW) | 7.5 | 7.5 | 7.5 |
Voltage(V) | 380 | 380 | 380 |
2. Application:
3. Features:
A .Machine full-enclosed by stainless steel The turret face is specially processed. It could prevent the cross pollution. And machine meet the GMP requirements
B. The upper part of the machine enclose one transparent windows so that we could observe the machine working situation.
C. Cleaning and maintenance is easy. The lay-out of all the controllers and the operate parts is reasonable. The speed adjustment of the driver is controlled by the frequency conversion device
D. All the driver devices are located inside the machine to keep the machine clean.
E. The hydraulic system can assure the stability of the system.
F. The protection unit is included in the system to avoid the damage of the punches and apparatus. When overload occurs, the machine stops automatically.
G. ZP35A has pre-compression system.
4. Company introduce:
Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery
Our product include:
1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.
2). Tester equipment in laboratory
3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on
5. Factory and exhibition photos:
Canton Fair show
Working room
6. Relation spare parts:
7. Other machines:
8. Pill samples:
9. Certificate
