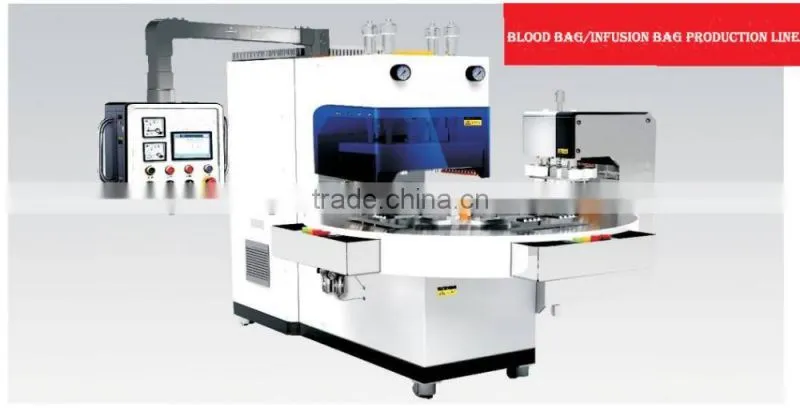

Semi Automatic PVC Blood Bag/Infusion Bag Production Line
Feature
1. Auto-running, microcomputer control system, tube and film feeding by hands.
2. The machine is designed and installed as CE standard. All the connection parts are designed and installed as the standard of GMP.
3. Tube and film feeding by hand, auto tube and top of bag welding. The current in whole welding process is monitored by PLC, which guarantees the high qulity processing and lower defects.
4. The upper electrode of this machine is capatable for welding 3-4 bags once. The processing is simple: placing material-pressing button-taking out finished products. Two operators with production capacity of 900 pcs per hour.
5. There are different safety devices equiped in machine, the indication will be lighting if any part goes wrong.
Welding cycle |
According to size of bag |
Output |
900 PCS/HR |
H.F. Output |
8KW |
Main Power |
AC 380V 3P 50HZ |
Power Input |
12KW |
Size of operation table |
500*350mm |
Air pressure |
0.6Mpa |
Oscillation Frequency |
27.12MHz |
Max gap of electrodes |
200mm |
Max pressure |
700kg |
Transfer H. F. distance |
400mm |
Operation mode |
Pneumatic |
Weight |
1150kg |
Upper plate size |
250*500mm |
Machine size |
2.1m*1.1m*1.79m |
