Automatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production Line

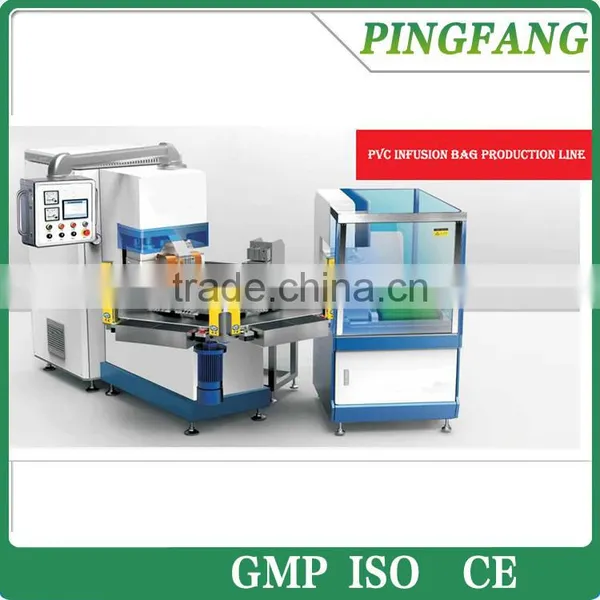

Automatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production Line photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Packaging Type:
Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Food, Medical
Packaging Type Cartons, Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 5kw, AC380V Three-phase 50Hz
Place of Origin Guangdong, China
Brand Name PF
Model Number Infusion Bag Production Line
Dimension(L*W*H) 3000*2600*2000
Weight 1700kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Automatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production Line



Product Description



Feature

1.       Auto-running, microcomputer control system, tube and film feeding by hands.

2.       The machine is designed and installed as CE standard. All the connection parts are designed and installed as the standard of GMP.

3.       Tube and film feeding by hand, auto tube and top of bag welding. The current in whole welding process is monitored by PLC, which guarantees the high qulity processing and lower defects.

4.       The upper electrode of this machine is capatable for welding 3-4 bags once. The processing is simple: placing material-pressing button-taking out finished products. Two operators with production capacity of 900 pcs per hour.

5.       There are different safety devices equiped in machine, the indication will be lighting if any part goes wrong.



Technical parameters



Machine Size

3000*2600*2000

Production Capacity

700 PCS/H

H.F. Power

5kw

Air Pressure

0.6-0.8MPa

Air Consumption

0.1m2/min

Power

AC380V Three-phase 50Hz

Input Power

13KVA

Net weight

1700kg

Machine Show

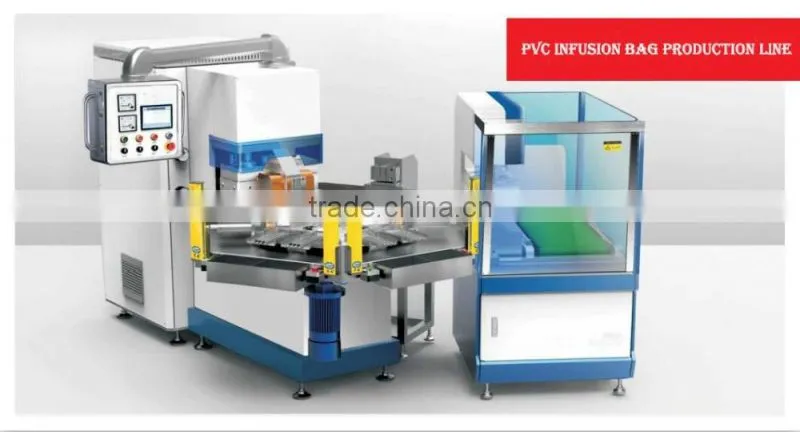

Automatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production Line

Automatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production Line

Samples

          Automatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production LineAutomatic Six Station Dextrose Soft Bag Sealing Machine, PVC Infusion Bag Production Line
