SR series Non-PVC soft Infusion IV bag production line solution

Suitable packing material

CIP/SIP Sterilizing and Filling System

Bag Form

Form of pipe orifice

Precision of Filling

Double Layer Sheet Film

Style of time/Pressure

Style of Mass Flow

Single(double)

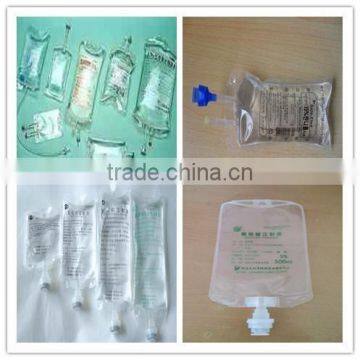

Single chamber bag

Single (double)powder(Liquor)/Liquor

Multi- charmbers bags

Special bag style

Round soft port

Round hard port

Boat port

50ml±1.5%

100ml±1.5%

250ml±1.0%

500ml±0.7%

Order Code

SRD2A/2500

SRS2A/2500

SRD4A/4600

SRS4A/4600

SRD6A/7000

SRS6A/7000

Max.

Productivity

2500  bags/h

4600  bags/h

7000 bags/h

Capacity

      100ML , 250mL , 500ml

50ml,100ml,250ml,500ml

Q’ty/cycle

    2

    2

    4

    4

    6

    6

Interface

Methods

Boat

Interface

Tube

Interface

Boat

Interface

Tube

Interface

Boat

Interface

Tube

Interface

Color Ribbon Dim

The standard chramatape with the inner diameter 3 in. and the outer diameter smaller than 140mm.

Film Dimension

The standard film with the inner diameter 6 in. and the outter diameter smaller than 600mm

Printing

Hot sheet , single color ;The producing date , validity ,approval No. are simultaneously printed and easily changed.

Power

 20kw

  6kw

 30kw

  7kw

 32kw

  8kw

Compressed Air Pressure

Dry and oil free compressda air , the cleaness in 5μm, the pressure is over 0.6Mpa , automatically stop and warning signals when it is too low.

Compressed Air Consumption

    2400L/min

   3000L/min

   3500L/min

Clean air pressure

The neat air is over 0.4 Mpa, and it’s cleanliness is 0.22μm.

Clean air consumption

   600L/min

    1000L/min

    1400L/min

Cooling water pressure

>0.5kg/ square centimetre

NONE

>0.5kg/ square centimetre

NONE

>0.5kg/ square centimetre

NONE

Cooling  water consumption

100L/h

 None

120L/h

 None

 150L/h

 None

Nitrogen

Consumption

It cab be qrotected with 0.6Mpa nitrogen by the special requirements , the consumption under 45L/min .

Noise

                            <75dB

Room Requirements

The environmental temperature shall control in 24℃, the relative humidrty is unallowed over 50%, and the humidity is in 85%.

Overall Size

6.4m*2.5m*2.1m

8.1m*4.7m*2.1m

8.5m*2.7m*2.1m

12.3m*4.7m*2.1m

10.6m*2.4m*2.1m

13m*4.7m*2.1m

Reference

Workshop dimensions

8m*4.5m*2.4m

10m*6.7m*2.4m

10.0m*4.7m*2.4m

14m*6.7m*2.4m

12m*4.5m*2.4m

14m*4.7m*2.4m

Weight

       7.6 ton

       10.8 ton

       12.0 ton
