SR Series Non-PVC Film Soft Bag Production Line, Dextrose/Saline IV Infusion Making Machine
SR Series Non-PVC Film Soft Bag Production Line, Dextrose/Saline IV Infusion Making Machine
SR series Non-PVC soft bag IV-solution production line is the highest efficiency product line, which is compiling all the most advanced technique .It is the upgrading and updating products for existing IV-solution production line, can finish such procedure as printing word , bag-making, bag-filling and sealing .
--Applying the advanced technology,it has reasonable structure and stable, reliable feature..
--Chinese touch screen operation, aptitude control, time, temperature, pressure and filling mete .etc .parameter can be setted and monitoring by computer.
--The machine memory is very strong. Aims at different film material, user can storage the practice welding parameter, when changes film it can be used directly.
--It can set automatic start; make the machine warm-up, in order to guarantee enough running time.
--The filling system adopts mass flowmeter to metering, high precision and wide range for filling quantity, and can realize CIP/SIP.
--It has high arranges. The servo system, PLC, pneumatic elements and so on, are complete select and use international brand, assure to run in steady and reliable.
--Its structure is unique, and the produce efficiency is high, it can produce 6000 single chamber or multi – chamber soft bags every hour.
--For patent design, The production line becomes bag making , filling and sealing integrated machine its length is compressed 1/3, the area of workshop and air-conditioner purify are decreased 1/3, so it can decrease the investment cost and use cost in furthest.
Order Code | SRD2A/2500 | SRS2A/2500 | SRD4A/4600 | SRS4A/4600 | SRD6A/7000 | SRS6A/7000 | |||||||||||
Max. Productivity
|
2500 bags/h |
4600 bags/h |
7000 bags/h | ||||||||||||||
Capacity | 100ML , 250mL , 500ml | 50ml,100ml,250ml,500ml | |||||||||||||||
Q’ty/cycle | 2 | 2 | 4 | 4 | 6 | 6 | |||||||||||
Interface Methods | Boat Interface | Tube Interface | Boat Interface | Tube Interface | Boat Interface | Tube Interface | |||||||||||
Color Ribbon Dim | The standard chramatape with the inner diameter 3 in. and the outer diameter smaller than 140mm. | ||||||||||||||||
Film Dimension | The standard film with the inner diameter 6 in. and the outter diameter smaller than 600mm | ||||||||||||||||
Printing | Hot sheet , single color ;The producing date , validity ,approval No. are simultaneously printed and easily changed. | ||||||||||||||||
Power | 20kw | 6kw | 30kw | 7kw | 32kw | 8kw | |||||||||||
Compressed Air Pressure | Dry and oil free compressda air , the cleaness in 5μm, the pressure is over 0.6Mpa , automatically stop and warning signals when it is too low. | ||||||||||||||||
Compressed Air Consumption |
2400L/min |
3000L/min |
3500L/min | ||||||||||||||
Clean air pressure | The neat air is over 0.4 Mpa, and it’s cleanliness is 0.22μm. | ||||||||||||||||
Clean air consumption | 600L/min | 1000L/min | 1400L/min | ||||||||||||||
Cooling water pressure | >0.5kg/ square centimeter
| NONE | >0.5kg/ square centimetre | NONE | >0.5kg/ square centimetre | NONE | |||||||||||
Cooling water consumption |
100L/h |
None |
120L/h |
None |
150L/h |
None | |||||||||||
Nitrogen Consumption | It cab be qrotected with 0.6Mpa nitrogen by the special requirements, the consumption under 45L/min . | ||||||||||||||||
Noise | <75dB | ||||||||||||||||
Room Requirements | The environmental temperature shall control in 24℃, the relative humidrty is unallowed over 50%, and the humidity is in 85%. | ||||||||||||||||
Overall Size | 6.4m*2.5m*2.1m | 8.1m*4.7m*2.1m | 8.5m*2.7m*2.1m | 12.3m*4.7m*2.1m | 10.6m*2.4m*2.1m | 13m*4.7m*2.1m | |||||||||||
Reference Workshop dimensions | 8m*4.5m*2.4m | 10m*6.7m*2.4m | 10.0m*4.7m*2.4m | 14m*6.7m*2.4m | 12m*4.5m*2.4m | 14m*4.7m*2.4m | |||||||||||
Weight | 7.6 ton | 10.8 ton | 12.0 ton | ||||||||||||||

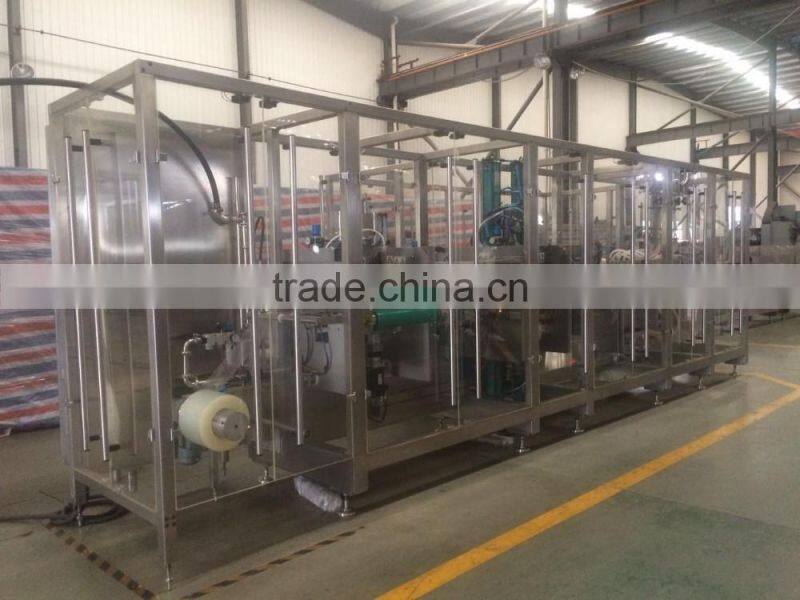

Machine Show

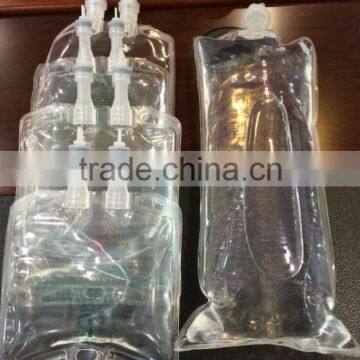

Samples
