Model DSYFS2 Non-PVC Film Soft Bag Filling and Sealing Machine
- Shanghai port China(Mainland)
- T/T Money Gram Credit Card
You May Like
-
Model DSY-4/SS Non-PVC Film Multi-chamber I.V Automatic Soft Bag Production Line
-
ASEPTIC SYSTEM Pharmaceutical Plastic Bottle PP/ PE Blow-Fill-Seal Machine
-
ASEPTIC SYSTEM Pharmaceutical Plastic Bottle PP/ PE Blowing Filling Sealing Machine
-
Pharmaceutical Plastic Bottle PP/ PE Blow-Fill-Seal Production Line
-
ASEPTIC SYSTEM Pharmaceutical Grade Infusion Plastic Bottle PP/ PE Blowing Filling Sealing Machine Production Line
-
Factory Supply SRD1A Automatic Non-PVC Double Layer Film IV Infusion Bag Production Line
Product Details
| Condition | New | Application | Chemical, Medical | |
| Packaging Type | Cartons, Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 2.5KW | |
| Place of Origin | Shanghai, China | Brand Name | PF | |
| Model Number | DSYFS2 | Dimension(L*W*H) | 1750x1880x1850 | |
| Weight | 1600kg | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Model DSYFS2 Non-PVC Film soft Bag Filling and sealing machine
1. Application:
The machine is extensively applicable to quantitative filling and welding sealing for soft bag packaging.
It is a newly generated product which is researched on the basis of digestion and absorption of corresponding products from both home and abroad.
The empty bag rotates to filling station for accurate filling after being loaded manually, and then rotates to welding station for welding cap automatically. It can complete cap handling, cap feeding, cap catching,cap welding, finished bag outputting automatically. Meanwhile, it can realize no bag, no filling, no sealing, filling without dripping. It is characterized by reasonable design structure, high production efficiency, reliable running,accurate filling, integrated running of machinery, electricity.
2. Technical Parameters:
Production capacity | 1200~1500bags/h |
Suitable specification | 100ml~150ml |
Filling accuracy | ±1% |
Compressed air pressure | 0.6Mpa |
Compressed air consumption | 1000L/min |
Clean compressed air consumption | 300L/min |
Clean compressed air pressure | 3.6~4.5Mpa |
Cooling water consumption | 60L/h,15~20ºC |
The maximum temperature of drug solution | 50ºC |
Electric capacity | 2.5kw,380v,50HZ |
Total weight | 1600kg |
Overall dimension | 1750×1880×1850(L×W×H) |

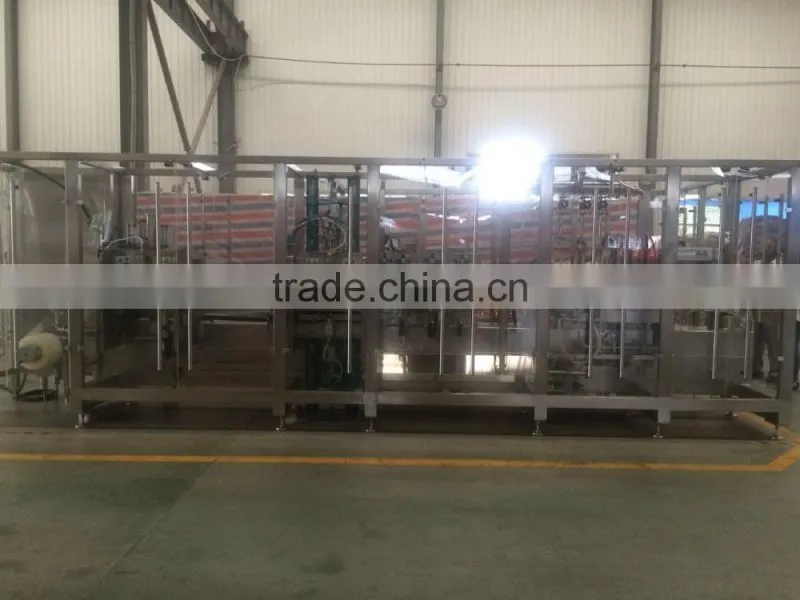

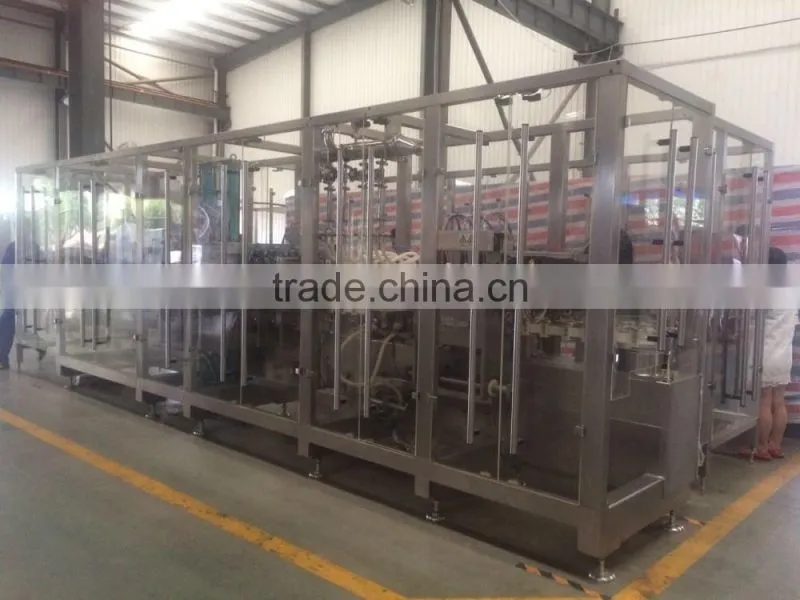

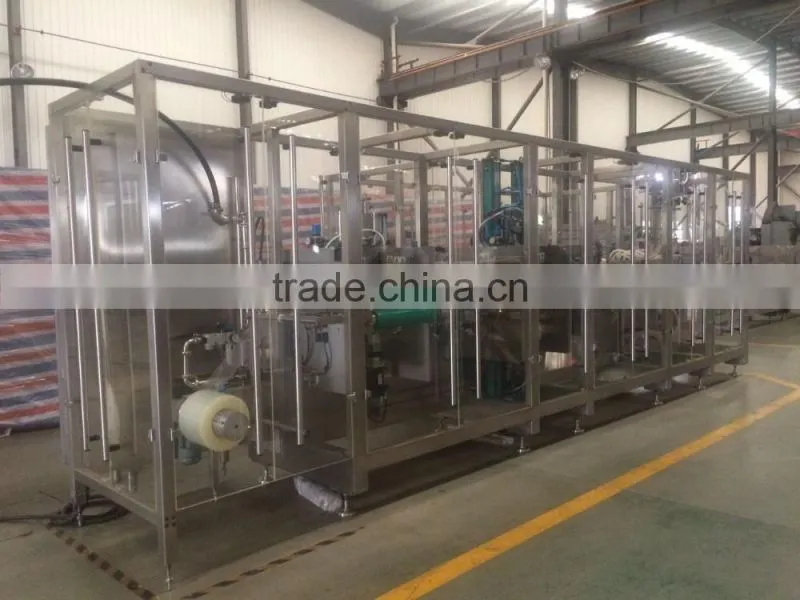

3.Machine shows:

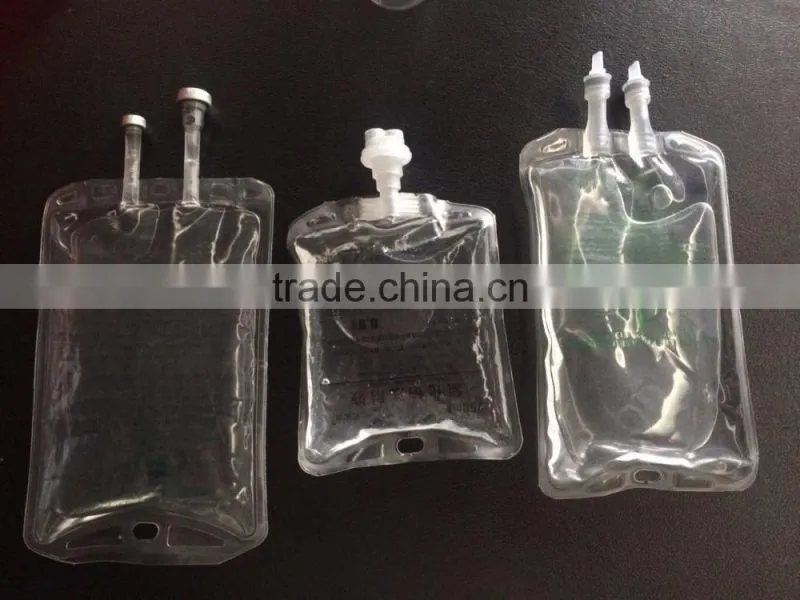

4. Product samples:
6.Our customers:
8. Certificates:
