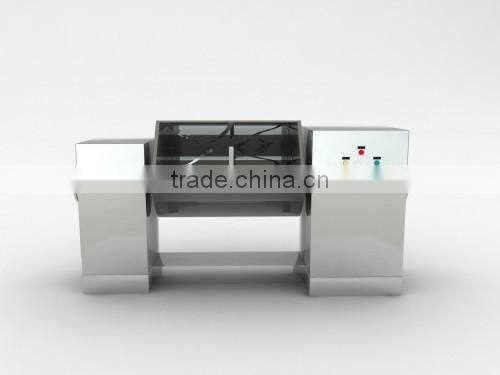

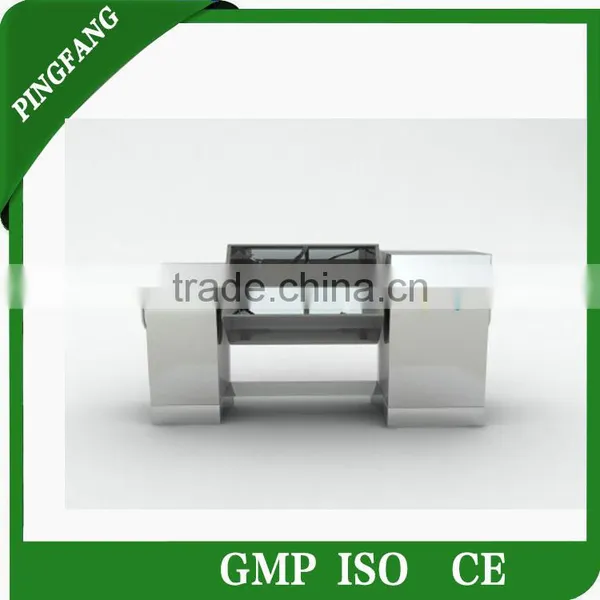

CH Series Horizontal Tank Type Agitator Mixer for Powdery or Paste Material

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Paddle

Product Type:

Other, Chemical. pharmaceutical, foodstuff

Contact Supplier Request Quote Chat Now

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China(Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Paddle

Product Type Other, Chemical. pharmaceutical, foodstuff

Application Powder

Additional Capabilities Other, Mixing

Place of Origin Jiangsu, China

Brand Name PF

Model Number CH Series

Max. Loading Capacity 380L

Voltage 220V/380V

Power(W) 0.75-11kw

Dimension(L*W*H) 1065*380* 520mm

Certification GMP

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

CH Series Horizontal Tank Type Agitator Mixer for Powdery or Paste Material

Product Description

Main Application

As a whole stainless steel horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.

Working principle

S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly, operate with electrical control, it can set mixing time to make automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and reaching the high homegeneous mixing.

Technical parameters

Model	Type of paddle	Barrel volume	Max loading volume	Max loading weigh	Speed of agitating paddle	Turning angle	Stir Motor	Discharging motor	Overall dimension	Weight
CH-30	S Type single paddle	20L	20L	20kg	24r/min	<105°	0.75kw	0.12kw	1065380 520mm	150kg
CH-50	S Type single paddle	30L	30L	30kg	24r/min	<105°	1.5kw	0.18kw	1265430 720mm	200kg
CH-100	S Type single paddle	60L	60L	60kg	24r/min	<105°	2.2kw	0.55kw	1580500 830mm	300kg
CH-150	S Type single paddle	90L	90L	90kg	24r/min	<105°	3kw	0.75kw	1685600 1000mm	650kg
CH-200	S Type single paddle	140L	140L	140kg	24r/min	<105°	4kw	0.75kw	1850600 1000mm	720kg
CH-300	S Type single paddle	180L	180L	180kg	24r/min	<105°	5.5kw	1.1kw	2160700 1250mm	750kg
CH-400	S Type single paddle	250L	250L	250kg	24r/min	<105°	7.5kw	1.5kw	2280700 1250mm	780kg
CH-500	S Type single paddle	300L	300L	300kg	24r/min	<105°	7.5kw	1.5kw	2450700 1250mm	820kg
CH-600	S Type single paddle	380L	380L	380kg	24r/min	<105°	11kw	2.2kw	2500900 1350mm	850kg
