Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > WSH Series Double Paddle Tank Type Mixing Machine for Spices Milk Powder and Chocolate

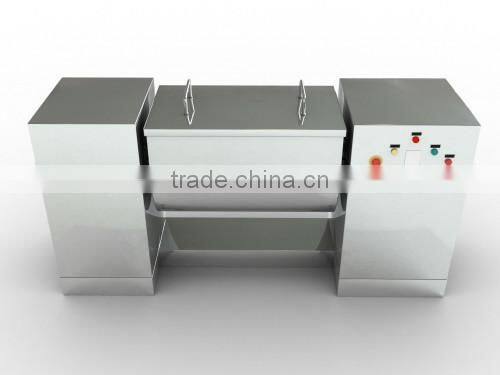

WSH Series Double Paddle Tank Type Mixing Machine for Spices Milk Powder and Chocolate
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Other, Chemical. pharmaceutical, foodstuff
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CH Series Horizontal Tanker Typed Automatic Food and Chemical Paddle Mixing Machine (2011)NegotiableMOQ: 1 Unit -
High Performance Model GHJ-V High Efficient Electric Blender Mixer for Poultry FeedNegotiableMOQ: 1 Unit
-
Competitive Price Model SBH Three-dimensional Swing Automatic Mixing Machine for Wheat FlourNegotiableMOQ: 1 Unit
-
High Speed High Performance GHL Series Rapid Wet Mixing GranulatorNegotiableMOQ: 1 Unit
-
GK Series Stainless Steel Dry Granulator, Granule Making MachineNegotiableMOQ: 1 Unit
Condition
New
Mixer Type
Agitator
Product Type
Other, Chemical. pharmaceutical, foodstuff
Application
Powder
Additional Capabilities
Other, Mixing
Place of Origin
Jiangsu, China
Brand Name
PF
Model Number
WSH Series
Max. Loading Capacity
420L
Voltage
220V/380V
Power(W)
4kw-15kw
Dimension(L*W*H)
1750*560*1100mm
Certification
GMP
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
WSH Series Double Paddle Tank Type Mixing Machine for Spices Milk Powder and Chocolate
Product Description
Main Application
The machine is horizontal double paddle tank type mixer which is widely used in pharmaceutical, chemical and foodstuff industries for mixing powdery or paste material especially for big viscosity and high homogeneous material.
Working principle
The machine let the S type paddle make opposite movement to impulse the material and mix by the active and passive shaft. The machine is made of stainless steel. You can set the mixing time and the machine will stop automatically. It is discharged by electromotion which will cause the working intensity of workers. The machine will reach the high homogeneous mixing.
Technical parameters
| Model | Barrel volume | Max loading volume | Max loading weigh | Mixing time | Stir Motor | Discharging motor | active shaft rotary speed | passive shaft rotary speed | Overall dimension | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| WSH-100 | 100L | 70L | 70kg | 0-99min | 4kw | 0.75kw | 15r/min | 21r/min | 1750*560*1100mm | 800kg |
| WSH-200 | 200L | 140L | 140kg | 0-99min | 5.5kw | 1.1kw | 12r/min | 18r/min | 2060*660*1250mm | 1000kg |
| WSH-400 | 400L | 280L | 280kg | 0-99min | 7.5kw | 1.5kw | 12r/min | 18r/min | 2320*760*1500mm | 1200kg |
| WSH-500 | 500L | 350L | 350kg | 0-99min | 11kw | 2.2kw | 12r/min | 18r/min | 2500*760*1500mm | 1300kg |
| WSH-600 | 600L | 420L | 420kg | 0-99min | 15kw | 2.2kw | 12r/min | 18r/min | 2620*780*1620mm | 1600kg |

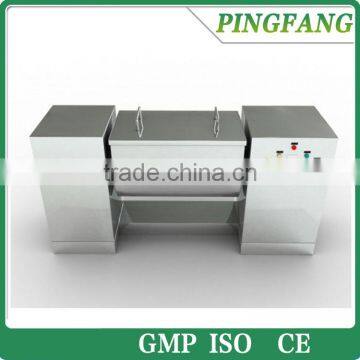

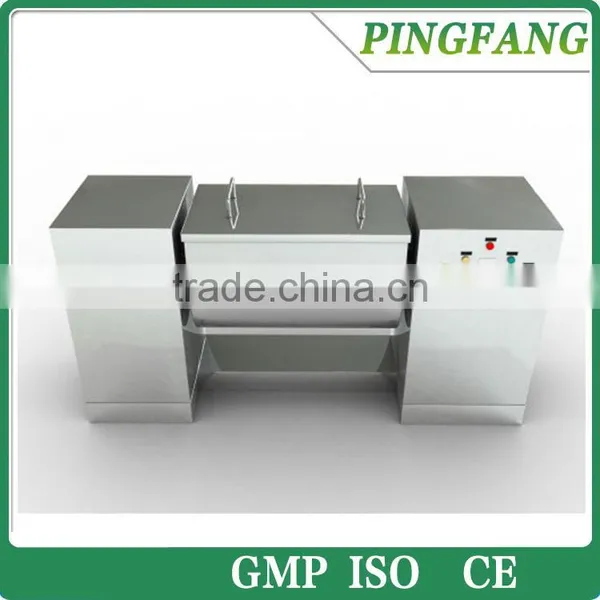

Machine Show
