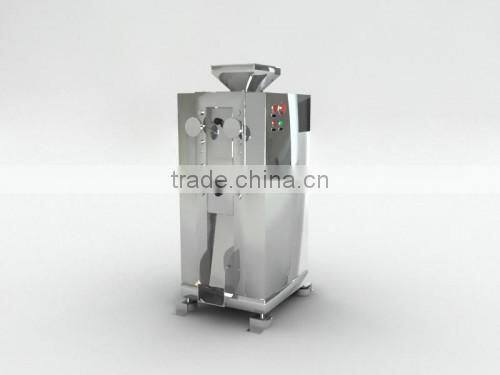

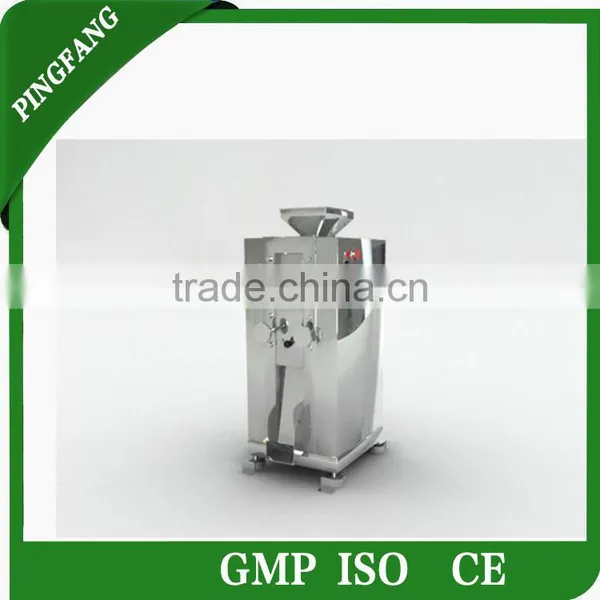

High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond thumbnail-1
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond thumbnail-2
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond thumbnail-3
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond thumbnail-4
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond thumbnail-5
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond thumbnail-6
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond photo-1
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond photo-2
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond photo-3
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond photo-4
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond photo-5
High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Crusher
Product Type:
Other, foodstuff, chemical, pharmaceutical
Contact Supplier Request Quote Chat Now
Huizhou Pingfang Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Crusher
Product Type Other, foodstuff, chemical, pharmaceutical
Place of Origin Jiangsu, China
Brand Name PF
Model Number YGJ Series Roller Mill
Voltage 380V
Power(W) 0.75-11kw
Dimension(L*W*H) 500*500*890-1100*730*2120mm
Weight 250-1850kg, 250-1850kg
Certification GMP
Warranty 1 Year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond



Product Description



Main Application

    The machine is used to grind the materials which have oil such as sesame, peanut and almond. The machine is well designed and developed by our company, it is filled a gap in the oil mill, which had reached the international advanced level.


Working principle

    The raw materials are feed into the roller area from hopper, they are milled into powder by the squeezed of the rollers. You can get different sizes of final production by adjusting the distance of two rollers. The machine is easy to operate with low noise and high capacity which is the best mill for oil materials.



Technical parameters
Model Prdouction Capacity Crushing Fineness Motor Power overall dimension weight
YGJ1-100 20-80 kg/h 8-20 mesh 0.75 kw 500*500*890 mm 250 kg
YGJ2-100 20-80 kg/h 8-40 mesh 1.5 kw 500*500*1130 mm 300 kg
YGJ3-100 20-80 kg/h 8-60 mesh 2.2 kw 500*500*1370 mm 350 kg
YGJ4-100 20-80 kg/h 8-80 mesh 3 kw 500*500*1610 mm 400 kg
YGJ1-150 50-200 kg/h 8-20 mesh 2.2 kw 720*520*920 mm 500 kg
YGJ2-150 50-200 kg/h 8-40 mesh 3 kw 720*520*1160 mm 550 kg
YGJ3-150 50-200 kg/h 8-60 mesh 4 kw 720*520*1160 mm 600 kg
YGJ4-150 50-200 kg/h 8-80 mesh 5.5 kw 720*520*1640 mm 650 kg
YGJ1-300 100-500 kg/h 8-20 mesh 3 kw 920*700*1200 mm 760 kg
YGJ2-300 100-500 kg/h 8-40 mesh 4 kw 920*700*1480 mm 940 kg
YGJ3-300 100-500 kg/h 8-60 mesh 7.5 kw 920*700*1760 mm 1120 kg
YGJ4-300 100-500 kg/h 8-80mesh 7.5 kw 900*700*2060 mm 1300 kg
YGJ1-500 200-1000 kg/h 8-20 mesh 5.5 kw 1100*730*1220 mm 950 kg
YGJ2-500 200-1000 kg/h 8-40 mesh 7.5 kw 1100*730*1480 mm 1250 kg
YGJ3-500 200-1000 kg/h 8-60 mesh 11 kw 1100*730*1820 mm 1550 kg
YGJ4-500 200-1000 kg/h 8-80 mesh 11 kw 1100*730*2120 mm 1850 kg



Machine Show

                  High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

Samples

 High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

         High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond



Packaging& Shipping

 High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

FAQ

 High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

Company Information

 High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond

High Performance YGJ Series Electric Roller Mill for Peanut, Sesame and Almond
