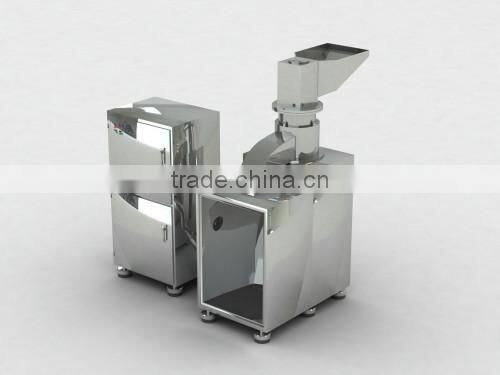

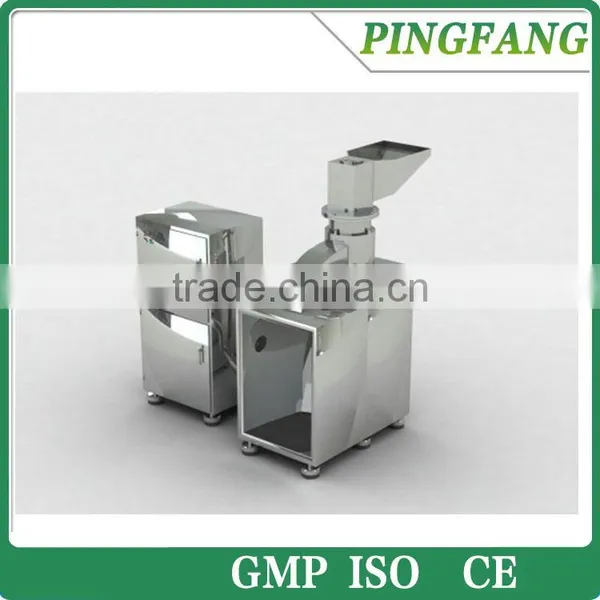

WCSJ Series Dust Collecting Coarse Crushing Machine for Grain/ Cereal
Main Application
Applied as supporting equipment before fine crushing process in such trades as pharmaceutical chemical and foodstuff etc., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Working principle
This machine is of vertical crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by simultaneous cutting of both fixed and movable knives and rotating impact of rotating knife, and enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international avanced level.
| Model | Prdouction Capacity | Feeding Size | Output Size | Spindle Speed | Crushing motor | Dust collecting motor | overall dimension | weight |
|---|---|---|---|---|---|---|---|---|
| WCSJ-20B IV,V | 100-500kg/h | ≤100mm | 0.5-20mm | 960r/min | 5.5KW | 1.5kw | 700*800*1100mm | 500kg |
| WCSJ-320B IV,V | 300-1200kg/h | ≤100mm | 0.5-20mm | 1070r/min | 11KW | 1.5kw |
