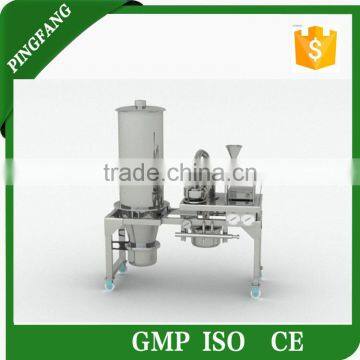

MODEL QS-100 Airflow Crusher Machine, Plastic Crushing Machine for Sale

MODEL QS-100 Airflow Crusher Machine, Plastic Crushing Machine for Sale photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Crusher
Product Type:
Other, pharmaceutic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Crusher
Product Type Other, pharmaceutic
Place of Origin Shanghai, China
Brand Name PF
Model Number QS-100
Voltage 380V
Power(W) 13-15kw
Dimension(L*W*H) 1320*620*1600mm
Weight 140kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

        MODEL QS-100 Airflow crusher machine, plastic crushing machine for sale







1.  Application:

This machine is applied for super fine crushing of fragile material in such trades as pharmaceutical. chemical, foodstuff mineral, pesticide, pigment, dyestuff, new pattern and ceramics etc. and is especially for small batch, various producing.



2. Working principle:

This machine is used for compressing gases. through feed sprayer, made powder materials(near 60 mesh)which fall from automatic feeder come into mill evenly and continuously. Meanwhile, by the pulverizing nozzles at the periphery of the pulverizing room, compressed gas from high-speed air flow, then spray into the pulverizing room the pulverizing room, make powder particles impact and rub each other, thus attain pulverization goal, After pulverized, the greater pare of the ultra-fine particles are collected under the cyclone separator, part of the ultra-fine particles are collected into filter collector and gases discharge through filter. This machine is simple structure, small volume, easy cleaning.

3. Technical Parameters:



Grinding pressure

Feed pressure

Air consumption

Handing capacity

Crushing fineness

Overall dimension

Weight

Motor power of air compressor

0.6-0.6mpa

0.6-0.6

mpa

1.1-5.5

m3/min

2-10kg/h

300-2000

(mesh)

1320*620*1600mm

140kg

13-15kw









4. Factory and exhibition photos:

MODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for sale





5. Other machines:

MODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for sale



6. Powder samples:


MODEL QS-100 Airflow crusher machine, plastic crushing machine for sale

MODEL QS-100 Airflow crusher machine, plastic crushing machine for sale





7. Our customers:

MODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for sale







8. Certificates:



MODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for saleMODEL QS-100 Airflow crusher machine, plastic crushing machine for sale
