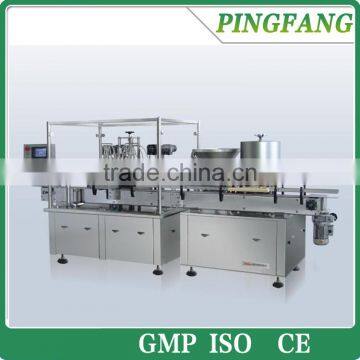

YG-DYG8-A DYG series liquid filling and capping machine/high efficient filling capping machine for sale
1. Application:
Yg-dyg8-a type is a big dosage liquid filling machine our company designed for customers who need big dosage liquid filling.It adopts 8 head peristaltic pumpor ceramic pump filling and ropp screw capping,suitable for pharmaceutical ,veterinary and food industry.
This machine consists of turntable, cylinder positioning device, ropp cap-screwing system, bottle outlet track and electric control system. It depends on cylinder to position the bottles, cylinder to push the filling needle up and down to finish the filling and sealing in one time or multiple times.
2. Features:
A. Ceramic pump, peristaltic pump or high precision peristaltic pump, with high rotary precision is high running speed and filling precision.
B. Filling, stoppering and capping monoblock machine.Space saving and simple structure.Godd appearance and easy to clean.
C. Cylinder positioning with high precision, running is stable can fill different size of bottles.
D. Easy operation, speed controlled by inverter, high automation degree.
E. No bottle, no filling; no stopper, machine auto stops; alarm when insufficient stoppers.
F. CE certified, standard electric installation, safety guarantee on operation.
G. Optional acrylic glass protection hood and 100-class laminar flow
H. Optional pre-filling and after-filling nitrogen filling.
3. Technical Parameters:
Suitable bottle range |
30~1000ml glass or plastic bottles (change the proper change part) |
Filling error |
≤2% |
Auto stoppering ratio |
≥99% |
Power supply |
220V/380V 50Hz |
Power |
2 KW |
Vacuum degree |
-6×10-2Mpa 20m3/h |
Compress air pressure |
0.3~0.4Mpa 20m3/h |
Filling head |
8 head or 6 head |
Single machine noise |
≤70dB |
Weight |
(approx)980Kg |
Dimension |
3100×1100×1650mm |
4.Factory shows:
5. Other filling machines:

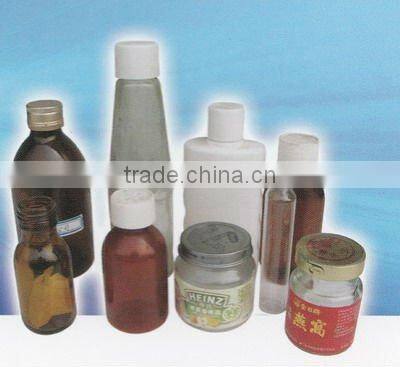

6. Product samples:
7.Our customers:
8. Certificates:
