Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine

Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine photo-1
Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine photo-2
Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine photo-3
Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine photo-4
Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine photo-5
Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine photo-6
US$ 1 - 99,999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Food, Medical
Packaging Type:
Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Food, Medical
Packaging Type Cartons, Case
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 220V 60HZ, Single Phase
Power 1.5kw
Place of Origin Guangdong, China
Brand Name PF
Model Number Vertical Cartoning Machine
Dimension(L*W*H) 1480*900*1250mm(L*W*H)
Weight 350kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine

Product Description



Suitable Usage

Packing Round bottles into square box for medicine, food-stuff, cosmetic and other industries’

Brief Introduction

1.     Model CSC-50 semi-automatic cartoning machine (carton-folding-filling-packing) is specialy design to pack small quantities multi-size box.

2.     With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple functions, and is required a short time to change mould.

3. The machine is made of aluminum alloy with anode treatment. Rust proof long service life cycle and easily clean.

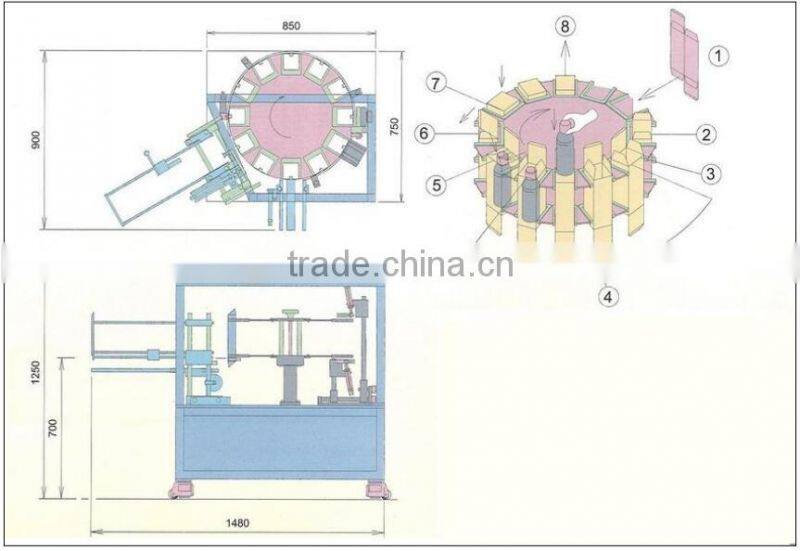

Process

1.     Push box into star wheel

2.     Fold box lower small flap

3.     Stamping code on box

4.     Product fall into box

5.     Fold box upper small flap

6.     Press both upper and lower big flaps

7.     Flatten both big flaps

8.     Product push out





Technical parameters



Paper box’s smallest size

60*20*20mm

Paper box’s largest size

200*80*80mm

Production speed

20-60 box per min

Power supply

220V 60Hz, single phase

Motor Horsepower

1/4 HP AC Motor

Compress air consumption

90L/min

Machine measurement

1480*900*1250mm(L*W*H)

Machine Weight

350kg

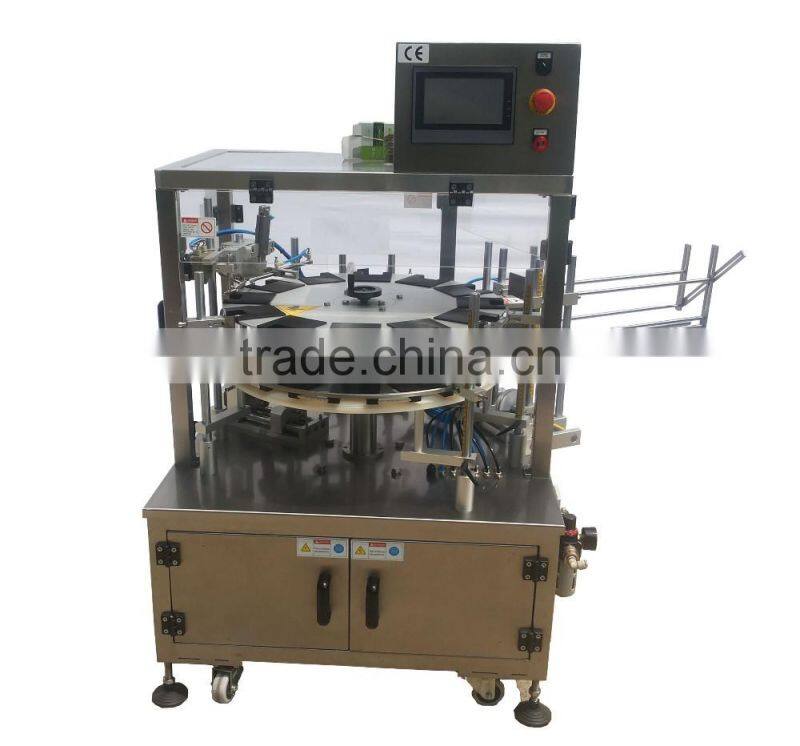

Machine Show

 Manual Cosmetic Medicine Carton Machine, Carton Packaging MachineManual Cosmetic Medicine Carton Machine, Carton Packaging Machine

Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine

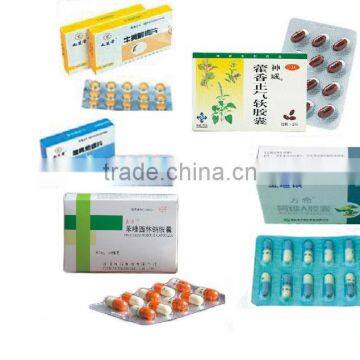

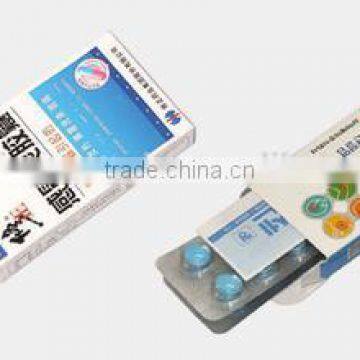

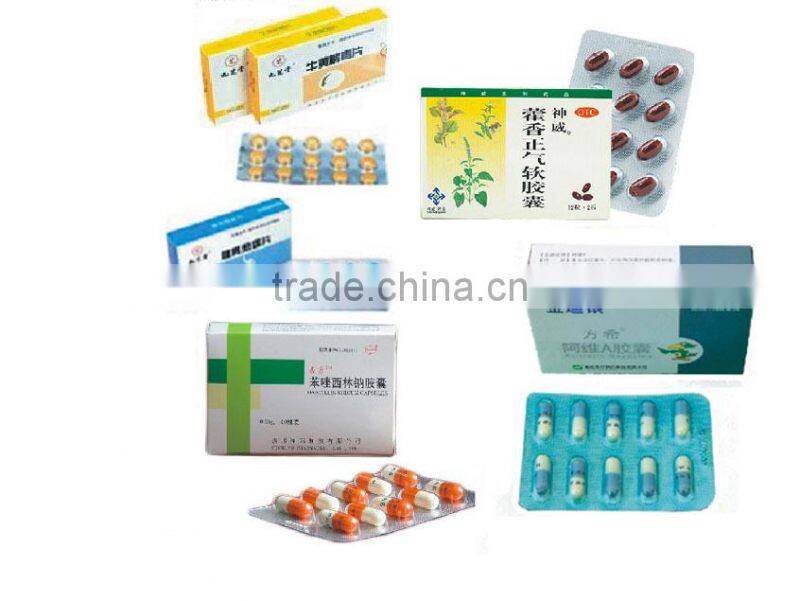

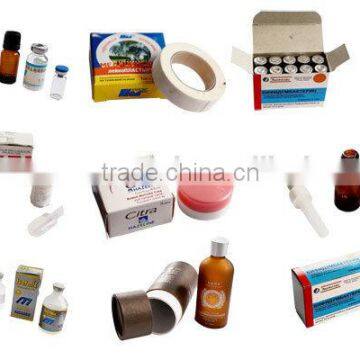

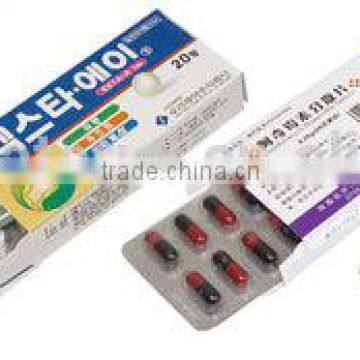

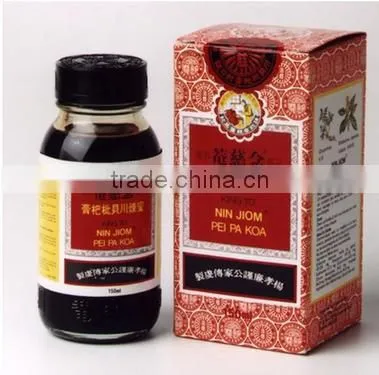

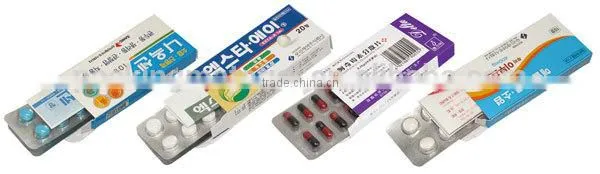

Samples

 Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine          Manual Cosmetic Medicine Carton Machine, Carton Packaging Machine
