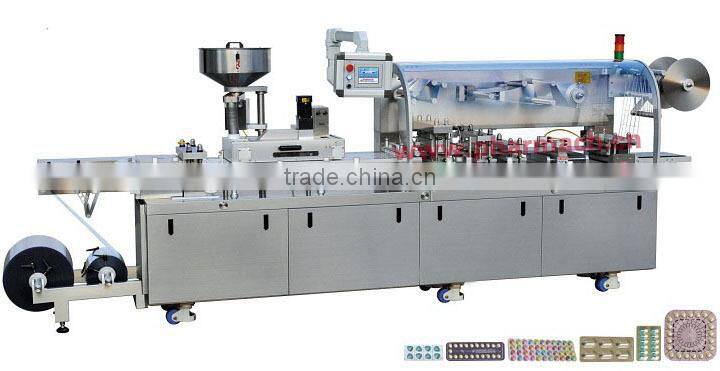

2015 Brand New DPP260Ki Pill and Capsule Blister Packing Machine Price for Sale
The pursuit of perfect detail is impenetrate through the design and production process. All the main parts are made of high grade stainless steel and alu-alloy material, and machining by advanced high precise tolling machines (CNC milling machine, wire cutting) which elides disadvantage of traditional lock smith process in precision and retain finishing texture reveal sense of honor.
Exquisite Camber transparent cover (assures safety operation) and draw bench treated stainless steel door adds the elegant visualize and art charm of machinery.
This great masterpiece of the times congeals the effort of two generations and over 20 year’s cumulated experience (during which obtain 12 national patents). As this 30th anniversary of China’s reform and opening-up, we have the pleasure to hand you herewith DPP260Ki for your appraise.
1. The production efficiency is rapidly increased by holding two rolls of forming foil with large diameter to reduce frequency of replacing material, equipping cut and path station for easy and fast replacing of material, using fast lock method enable replacing of sealing material easily done within 10 seconds, adopting waste foil cutting method enables continuous production elides stop machine to settle waste foil collecting roll.
2. Separate the operation zone and transmission zone stops pollution and make daily clean work easier.
3. Servo motor enables precise synchronization, feeding length can be randomly set through the HMI.
4. Universal mechanism enables Al/Pl (heat forming) switch to Al/Al (code forming) easily by changing moulds and feeder. (Have applying for national patent)
5. Big break in feeding method for Al/Al packing enables fast feeding speed for irregular shape tablets.
6. Novel mould oriental mechanism satisfied the common request on fast change for moulds.
7. Sealing cylinder is put inside machine body to improve machine structure. (Reduce the center of gravity, increase the stability of machine, and have applying for national patent) High punch frequency: Al/Pl≤70 punches/min; Al/Al≤50 punches/min.
Packing Details: Standard export wooden case package for tube filling sealing machine
Delivery Detail: 30 days
Max. Punch Speed: |
AL/PL: 70 times/min |
AL/AL: 50 times/min | |
Max. Production Capacity: |
Al/Pl: 400,000 pills/hour |
Adjustable range of stroke: |
≤160mm (normal standard), can be custom made |
Max. Forming Area: |
245×112 |
Max. Forming Depth: |
AL/PL: 12mm |
AL/AL: 12mm | |
|
Specification of packaging material: (width of material: 130-260mm) |
Medicine PVC: 260×0.25 (0.15-0.5)mm |
Heat-sealing PTP:260×0.02mm | |
Forming AL: 260×0.12(0.10-0.18)mm | |
Total Power: |
9.6 KW |
Main motor: |
2.2 KW |
Forming heating plate: |
2×1.5 KW |
Sealing heating device: |
1.2 KW |
Air Pump(Air Compressor)Volume flux: |
≥0.38m3/min |
Dimensions of overall machine(L×W×H) : |
3940×720×1580mm |
Dimensions of packing case(L×W×H) : |
4100×880×1740mm |
Separate packing case |
2000×880×1740mm and 1550×880×1740mm |
Weight: |
1800kg |
Machine Shows

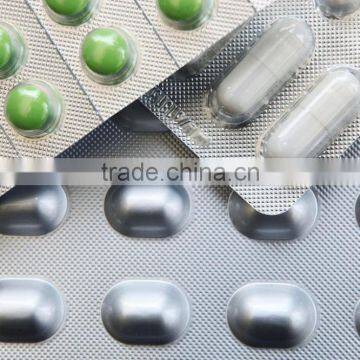

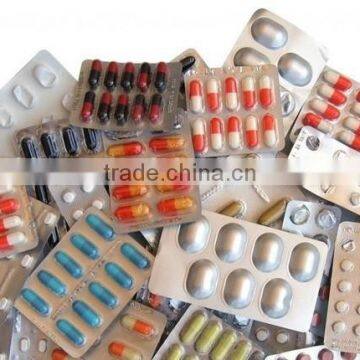

Samples
