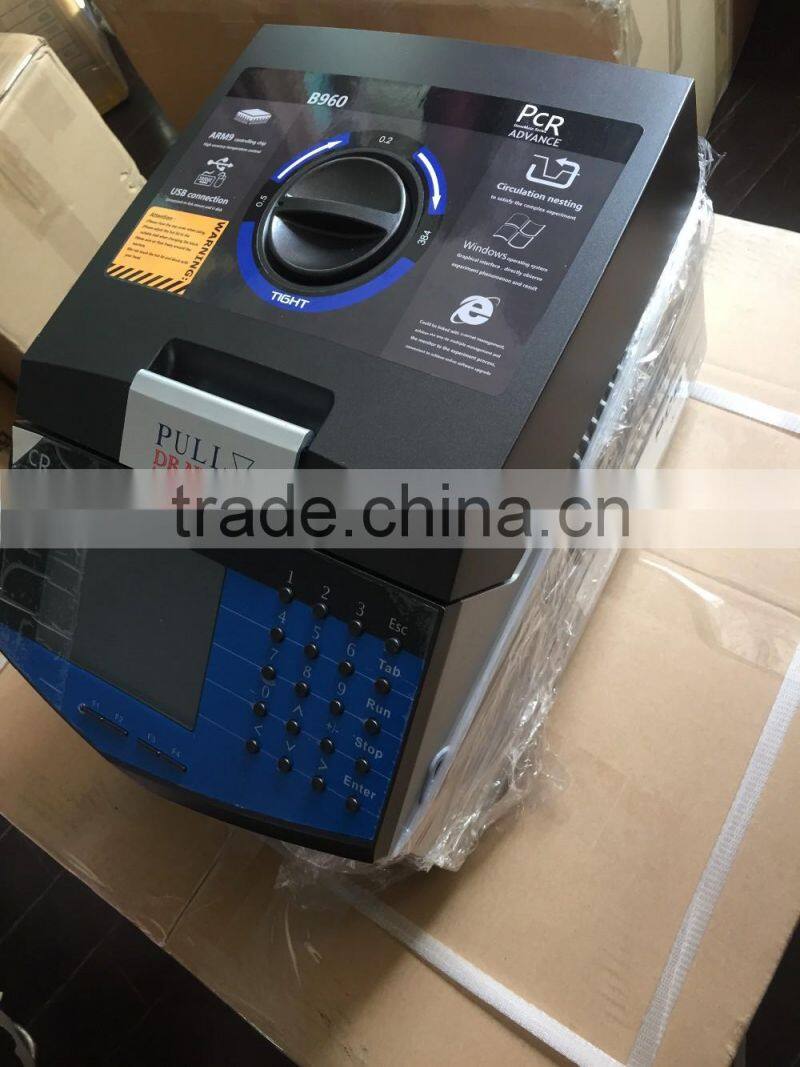

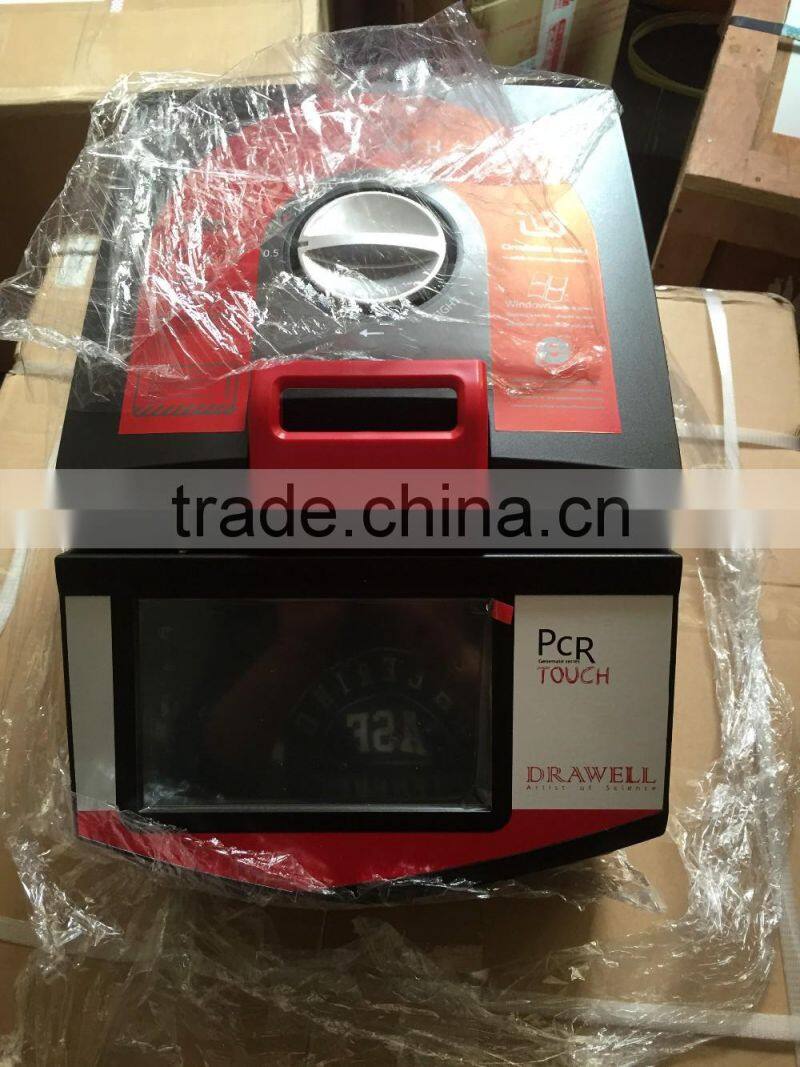

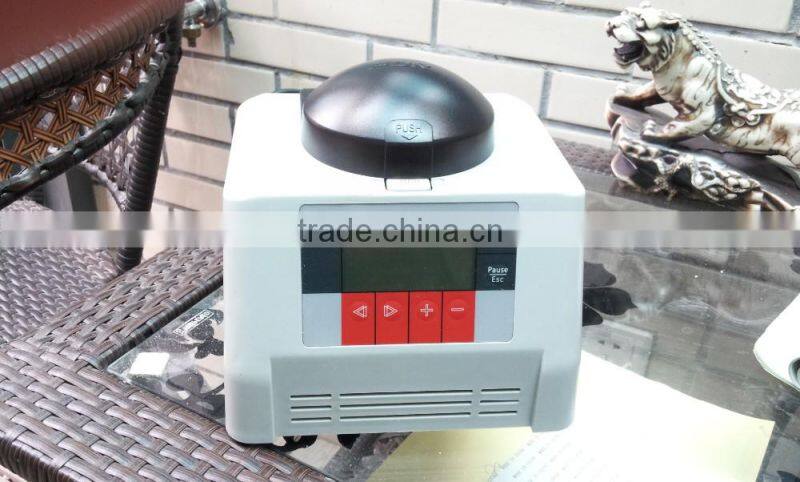

DW-PCR-EII The lab equipment of real-time quantitative PCR (4 channel)

Model

DW-PCR-EII

Sample capacity

96,include positive and negative control

Micro plate type

96 well plate

Reaction Volume

5~50ul

Detector

Photodiode

Optical system

Highlight LED light source

Temperature range

4℃~99℃

Lid temperature

100℃~120℃

Heating/cooling rate

0.1~4.2℃/s

Temperature uniformity

<+0.2℃

Temperature accuracy

<+0.1℃

Testing range

101-1010 DNA/RNA copy/ml

Reproducibility

CV<2.1%

Correlation coefficient of nucleic acid precision

R>0.997

Temperature steps

1~99

Cycles

1~999

Hold time

4℃long-term

Excitation wavelength

Channel 1: 470nm Channel 2: 523nm

Channel 3: 571nm Channel 4: 630nm

Emission wavelength

Channel 1: 525nm Channel 2: 564nm

Channel 3: 512nm Channel 4: 670nm

Display

7 inch full-color touch screen

Power supply

AC 220/110V+10% ,50/60Hz+10%

Power consumption

1100W

Dimensions(W*D* H)

540*300*480mm

Weight

35kg
