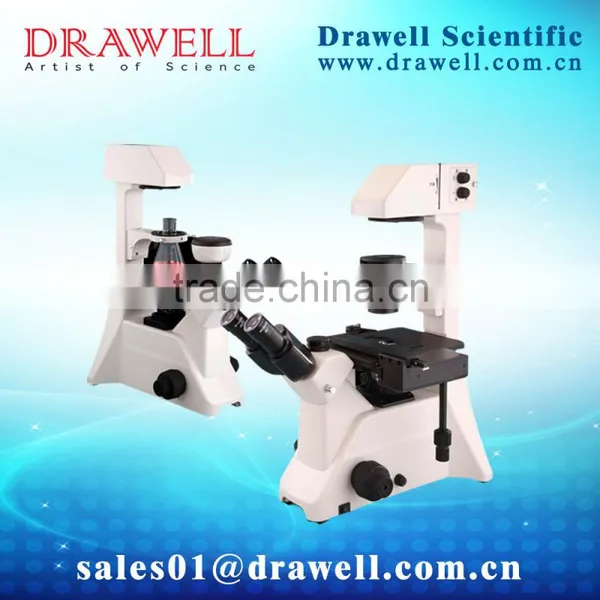

BDS 300 Series Inverted Microscope Outfits

Name: BDS 300 Series Inverted Microscope Outfits
Brand: DRAWELL
SKU: 141125018
Availability: InStock

US$ 2,100 - 2,350 MOQ: 1 Piece

Key Specifications

Brand Name:

DRAWELL

Model Number:

BDS

Theory:

Biological Microscope

Shanghai Drawell Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name DRAWELL

Model Number BDS

Theory Biological Microscope

Drawtube Binocular

Relief Phase Contrast

Ordinary Phase Contrast Observe Relief Phase Contrast Observe

Relief Phase Contrast Unit makes 3D image for crystal living sample

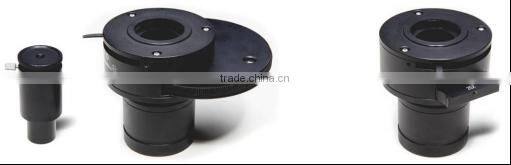

Turnable Relief Phase Contrast Condenser Slide Relief Phase Contrast Condenser

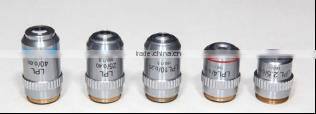

LWD Objectives

Bright Field Objectives Phase Contrast Objectives

Objectives Specification (mm)

	Objective	N.A.	Working Distance
LWD Plan Objective	LPL 2.5×	0.07	29.7
	LPL 4×	0.10	17.5
	LPL10×	0.25	7.9
	LPL25×	0.40	5.0
	LPL40×	0.65	3.0
LWD Plan Phase Contrast Objective	LPL Ph+ 10×	0.25	7.9
	LPL Ph+ 25×	0.40	5.0
	LPL Ph+ 40×	0.65	3.0

Illumination System

Kohler Illumination System: 12V/20W Halogen

Observe Tube

Both 100 (binocular tube) : 0 (photo tube)

and 20 (binocular tube) : 80 (photo tube)

1X C-Mount 0.6X C-Mount (Focus Adjustable)

Mechanical Stage and accessories:

Large Stage: 206 (X) × 170 (Y) mm

Mechanical stage available for 96 holes plate, moving range: 128(X)×80(Y)mm

Knob can be changed by left or right, convenient for all users

Stage with 96 holes plate Knob can be changed by left or right

BDS 300 Series Inverted Microscope Outfits

Item			BDS300	BDS300PH
Main Body			Y	Y
Eyepiece	WF10×/20mm		YY	YY
	WF16×/13mm		oo	YY
	10X Article Eyepiece (0.1mm)		o	Y
	Telescope		Y	Y
LWD Plan Objective	LPL 2.5×/0.07	W.D.=29.7mm	o	o
	LPL 4× /0.10	W.D.=17.5mm	o	Y
	LPL10×/0.25	W.D.=7.9mm	Y	o
	LPL25×/0.40	W.D.=5.0mm	Y	Y
	LPL40×/0.65	W.D.=3.0mm	Y	Y
LWD Plan Phase Contrast Objective	LPL Ph+ 10×/0.25	W.D.=7.9mm	o	Y
	LPL Ph+ 25×/0.40	W.D.=5.0mm	Y	Y
	LPL Ph+ 40×/0.65	W.D.=3.0mm	o	Y
Annular Spot 10×			o	Y
Annular Spot 25×			Y	Y
Annular Spot 40×			o	Y
Slide Relief Phase Contrast Condenser N.A.0.35 W.D. =45mm			Y
Turnable Relief Phase Contrast Condenser N.A.0.35 W.D. =45mm				Y
Seidentopf Trinocular Head: Inclined 45° Both 100 (binocular tube) : 0 (photo tube) and 20 (binocular tube) : 80 (photo tube)			Y	Y
Mechanical stage available for 96 holes plate Stage Size: 206 (X) × 170 (Y) mm moving range: 128(X)×80(Y)mm			Y	Y
65mm Culture Dish Holder			Y	Y
54mm Culture Dish Holder			o	o
35mm Culture Dish Holder			Y	Y
Filter (Blue, Green, Gray)			Y	Y
1X C-mount			o	Y
0.6X C-mount (focus adjustable)			o	o
12V/20W Halogen lamp			Y	Y
Micrometer (0.01mm)			o	o
