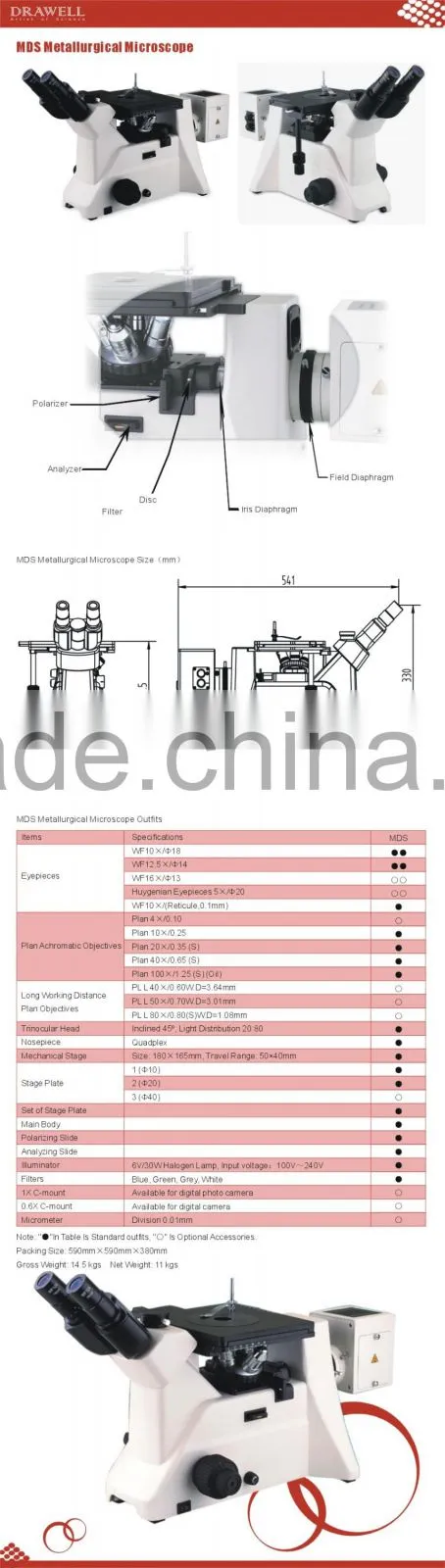

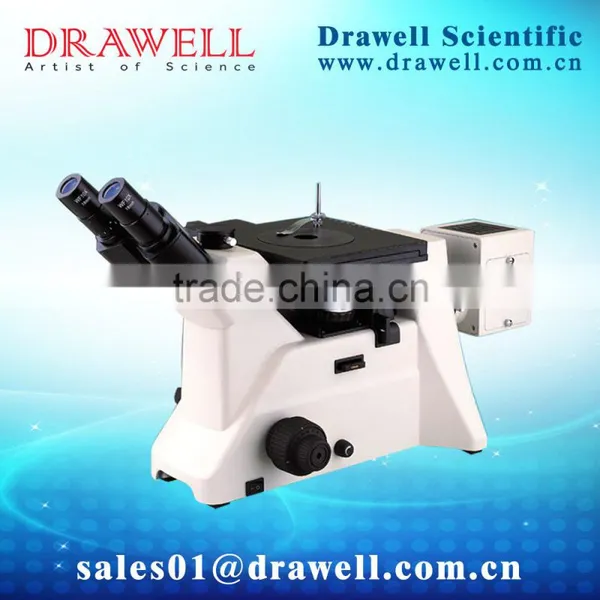

MDS Metallurgical Microscope
MDS Metallurgical Microscope Size(mm)
MDS Metallurgical Microscope Outfits
Items |
Specifications |
MDS |
|
Eyepieces |
WF10×/Φ18 |
YY |
|
WF12.5×/Φ14 |
YY |
||
WF16×/Φ13 |
oo |
||
Huygenian Eyepieces 5×/Φ20 |
oo |
||
WF10×/(Reticule,0.1mm) |
Y |
||
Plan Achromatic Objectives |
Plan 4×/0.10 |
o |
|
Plan 10×/0.25 |
Y |
||
Plan 20×/0.35 (S) |
Y |
||
Plan 40×/0.65 (S) |
Y |
||
Plan 100×/1.25 (S) (Oil) |
Y |
||
|
Long Working Distance Plan Objectives |
PL L 40×/0.60 |
W.D=3.64mm |
o |
PL L 50×/0.70 |
W.D=3.01mm |
o |
|
PL L 80×/0.80(S) |
W.D=1.08mm |
o |
|
Trinocular Head |
Inclined 45º, Light Distribution 20:80 |
Y |
|
Nosepiece |
Quadplex |
Y |
|
Mechanical Stage |
Size: 180×165mm, Travel Range: 50×40mm |
Y |
|
Stage Plate |
1 (Φ10) |
Y |
|
2 (Φ20) |
Y |
||
3 (Φ40) |
o |
||
Set of Stage Plate |
|
Y |
|
Main Body |
|
Y |
|
Polarizing Slide |
|
Y |
|
Analyzing Slide |
|
Y |
|
Illuminator |
6V/30W Halogen Lamp, Input voltage:100V~240V |
Y |
|
Filters |
Blue, Green, Grey, White |
Y |
|
1X C-mount |
Available for digital photo camera |
o |
|
0.6X C-mount |
Available for digital camera |
o |
|
Micrometer |
Division 0.01mm |
o |
|
Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.
Packing Size: 590mm×590mm×380mm
Gross Weight: 14.5 kgs Net Weight: 11 kgs
