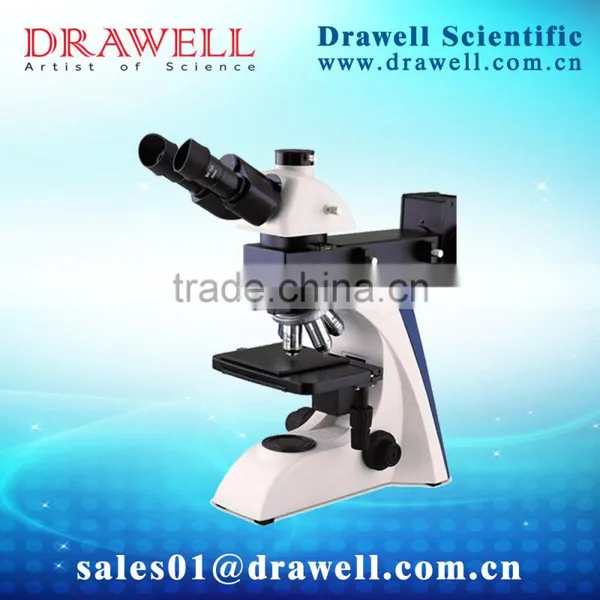

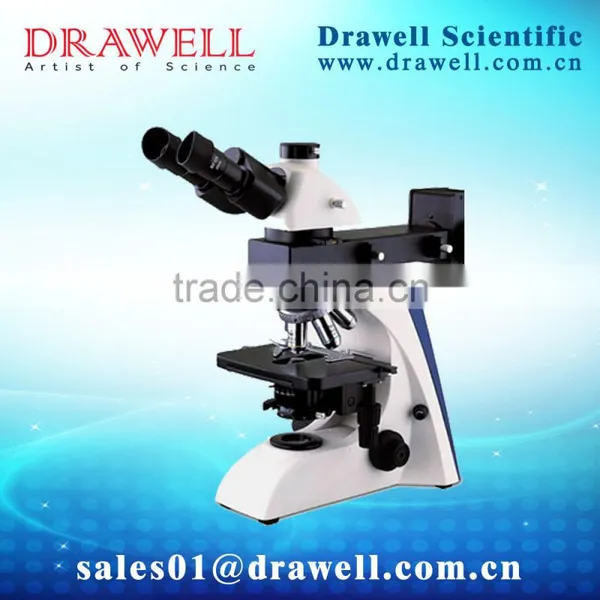

MIT3&500 Series Metallurgical Microscope

Name: MIT3&500 Series Metallurgical Microscope
Brand: DRAWELL
SKU: 141125020
Availability: InStock

US$ 700 - 1,000 MOQ: 1 Piece

Key Specifications

Brand Name:

DRAWELL

Model Number:

MIT

Theory:

Metallurgical Microscope

Shanghai Drawell Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name DRAWELL

Model Number MIT

Theory Metallurgical Microscope

Drawtube Binocular

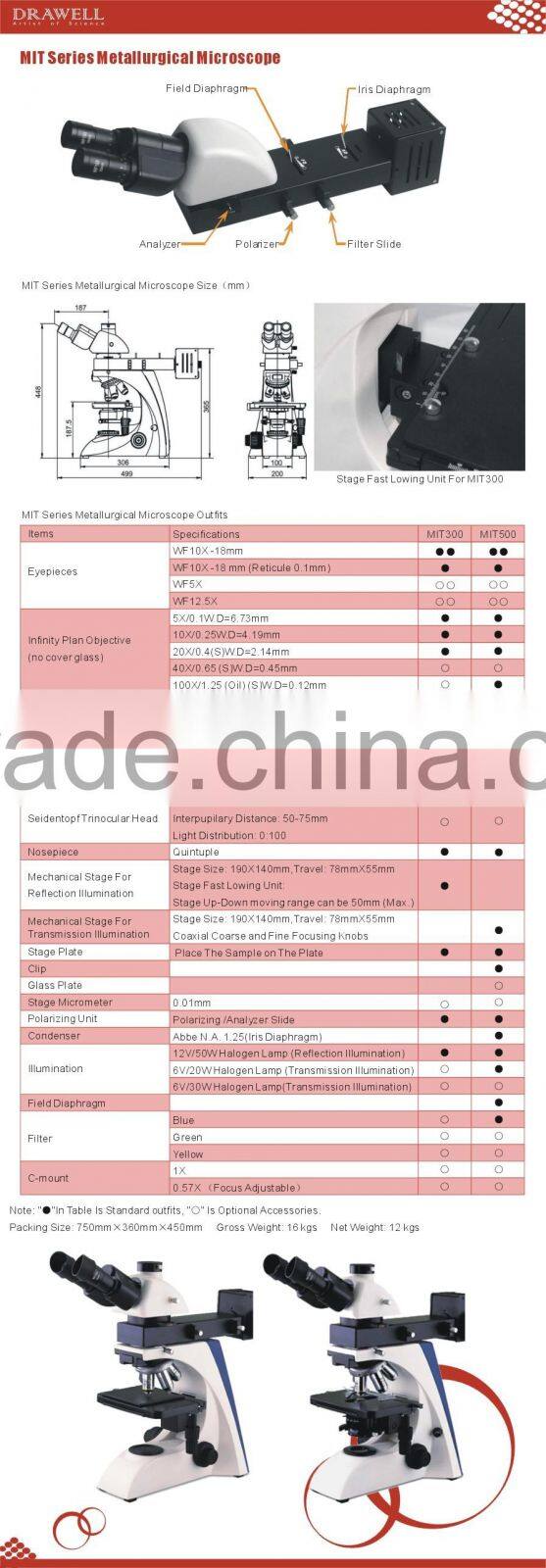

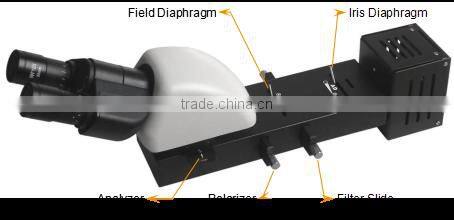

MIT Series Metallurgical Microscope

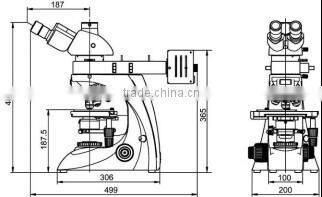

MIT Series Metallurgical Microscope Size(mm)

Stage Fast Lowing Unit For MIT300

MIT Series Metallurgical Microscope Outfits

Items	Specifications		MIT300	MIT500
Eyepieces	WF10X -18mm		YY	YY
	WF10X -18 mm (Reticule 0.1mm)		Y	Y
	WF5X		oo	oo
	WF12.5X		oo	oo
Infinity Plan Objective (no cover glass)	5X/0.1	W.D=6.73mm	Y	Y
	10X/0.25	W.D=4.19mm	Y	Y
	20X/0.4(S)	W.D=2.14mm	Y	Y
	40X/0.65 (S)	W.D=0.45mm	o	o
	100X/1.25 (Oil) (S)	W.D=0.12mm	o	Y
Long Working Distance Infinity Plan Objective (no cover glass)	20X/0.4 (S)	W.D=8.35mm	o	o
	40X/0.65 (S)	W.D=3.90mm	Y	Y
	50X/0.7 (S)	W.D=1.95mm	o	o
	80X/0.80 (S)	W.D=0.85mm	o	o
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm		Y	Y
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm Light Distribution: 0:100		o	o
Nosepiece	Quintuple		Y	Y
Mechanical Stage For Reflection Illumination	Stage Size: 190X140mm,Travel: 78mmX55mm Stage Fast Lowing Unit: Stage Up-Down moving range can be 50mm (Max.)		Y
Mechanical Stage For Transmission Illumination	Stage Size: 190X140mm,Travel: 78mmX55mm Coaxial Coarse and Fine Focusing Knobs			Y
Stage Plate	Place The Sample on The Plate		Y	Y
Clip				Y
Glass Plate				o
Stage Micrometer	0.01mm		o	o
Polarizing Unit	Polarizing /Analyzer Slide		Y	Y
Condenser	Abbe N.A. 1.25(Iris Diaphragm)			Y
Illumination	12V/50W Halogen Lamp (Reflection Illumination)		Y	Y
	6V/20W Halogen Lamp (Transmission Illumination)		o	Y
	6V/30W Halogen Lamp(Transmission Illumination)		o	o
Field Diaphragm				Y
Filter	Blue		o	Y
	Green		o	o
	Yellow		o	o
C-mount	1X		o	o
C-mount	0.57X (Focus Adjustable)		o	o
