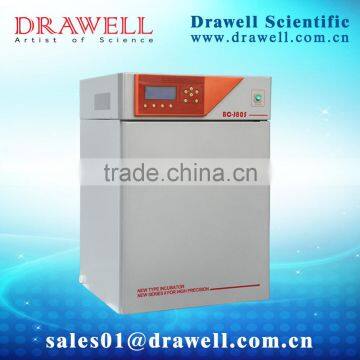

BC-J80S carbon dioxide incubator with Water-jacket IR,new

BC-J80S CO₂ INCUBATOR (Water-jacket IR)

APPLICABLE SCOPE:
The CO₂ incubator is a kind of advanced instrument for cells, tissues and bacteria cultivation, a key equipment for the development of immunology, oncology, genetics and biological engineering. It is extensively applicable in the research and production of micro organism, agricultural sciences and pharmaceutics.

PRODUCT CHARACTERISTICS:
The shell is made of cold-rolling steel with static spray plastics, the working chamber is made of mirror stainless steel, the shelves can be adjusted optionally;
Intelligent control, LCD screen can display temperature, humidity and CO₂concentration;
Sound and light alarm function when over-temperature;
Imported IR CO₂ concentration sensor which has a precise sensitivity;
UV light that can kill bacteria, mould and mycoplasma effectively;
HEPA offers a filtration efficiency of 99.998% for 0.3μm particulate;
Imported centrifugal fan with low noise and long life, heat quickly with good uniformity;
Imported humidity sensor, humidity can be displayed real-time;
Sound and light alarm function when over-temperature, two control systems, the assistant control system will play the monitoring role when the main control system is invalidated;
Door heating control system can avoid frost phenomenon on the inner glass door;
Special technics to ensure good seal of the working chamber and keep the concentration for a long time;
Be equipped with RS-485 interface which can be connected with computer or recorder;
The function of parameters memory and recovery for date protection caused by power failure or system halted.

TECHNICAL PARAMETERS:
Model: BC-J80S (Water-jacket IR)
Power Supply: AC 220V±10%/50Hz±2%
Power: 475W
Heating Method: Water-jacket
Temp. Range: RT+5℃-60℃
Temp. Resolution: 0.1℃
Temp. Fluctuation: 37℃≤±0.1℃
Temp. Uniformity: 37℃≤±0.2℃
CO2 Range: 0-20%
CO2 Control Method: IR
CO2 Recovery Time: ≤concentration×1.2min
Humidify Method: Natural Evaporation
Volume: 80L
Working Chamber (mm): 400×400×500
Overall Size (mm): 550×530×835
Shelves: 2pcs
