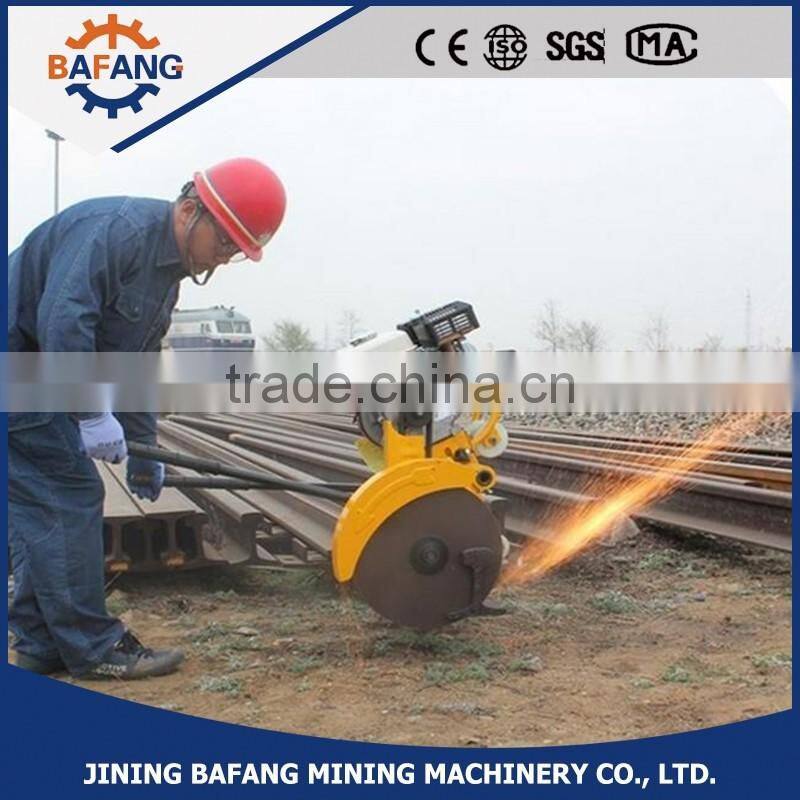

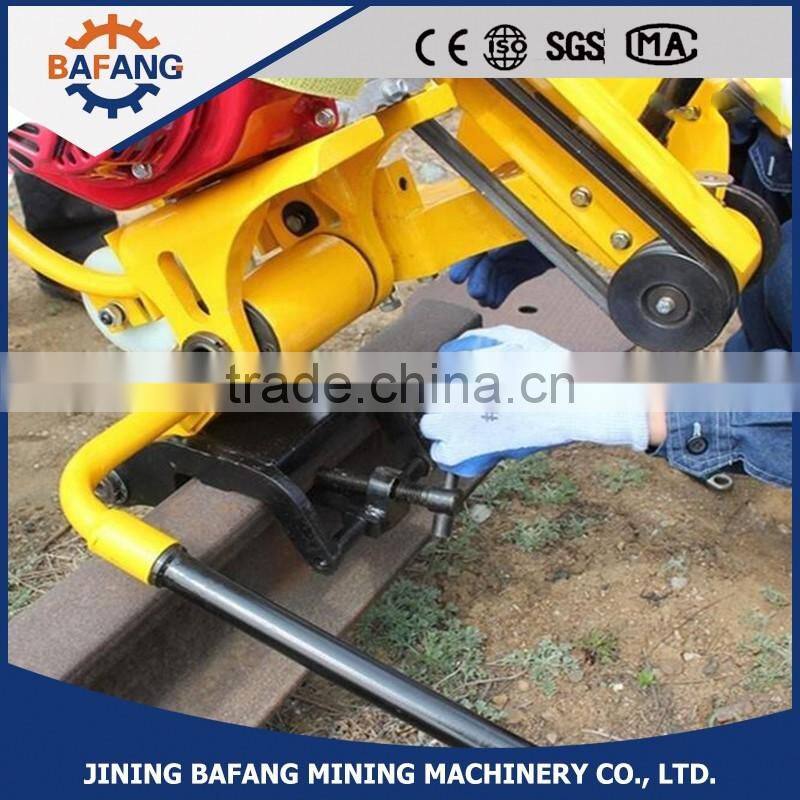

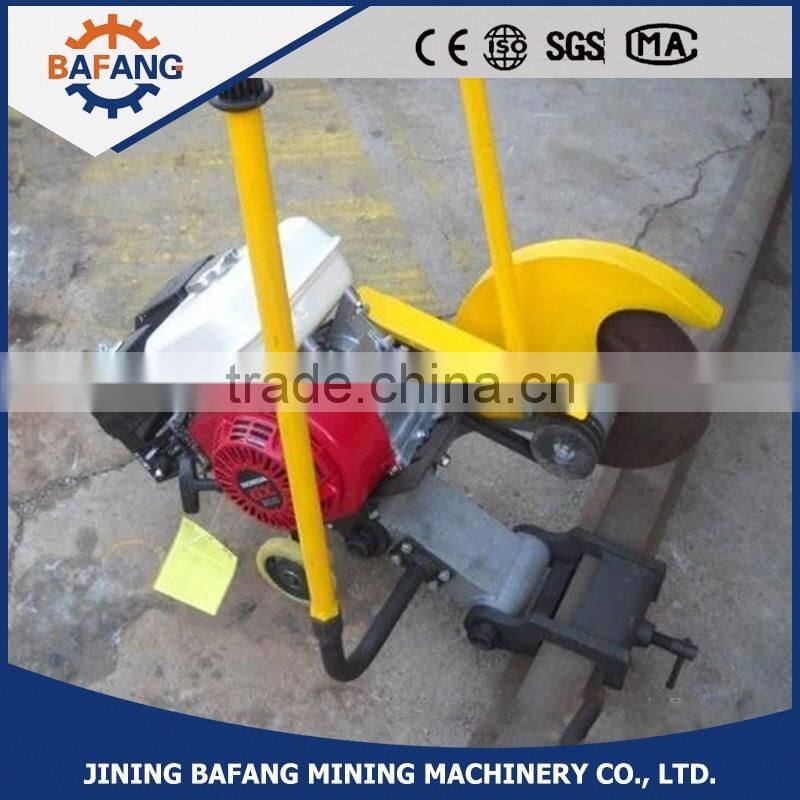

NQZ-5III Internal Combustion Rail Track Cutting Machine/Rail Cutter
Specifications
NGZ-5III Internal combustion rail cutting machine is suitable for cutting 43kg/m-75kg/m rail.

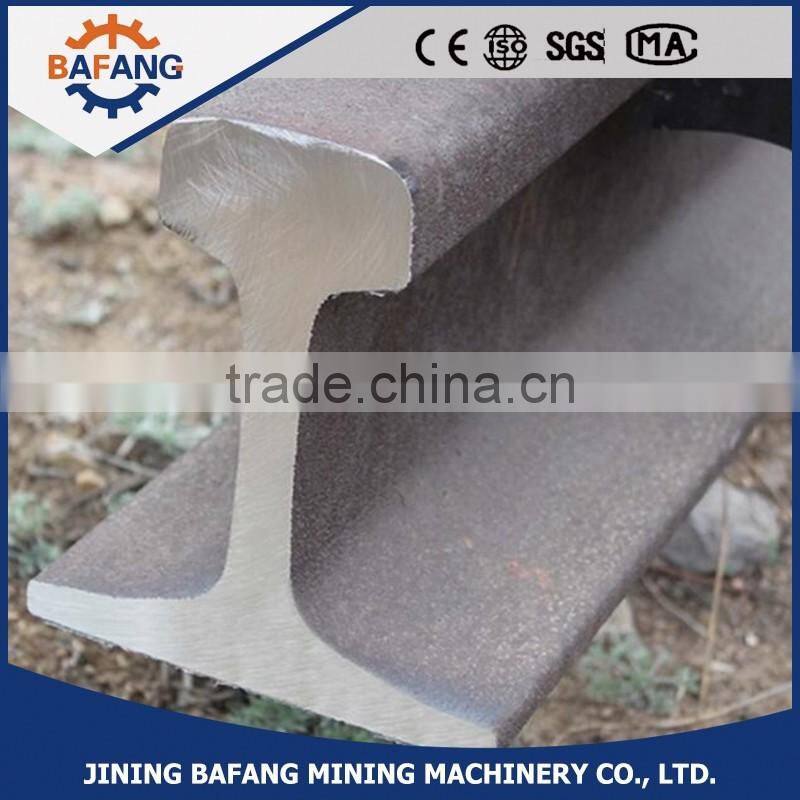

The cutting section quality meets the requirement of railway industrial standard.
It’s an indispensable machine used in railway overhaul, medium maintenance and urgent repair operations.
It has two swing handles’ structure; the cutting time is less than 2 minutes, the cutting discs has the features that
highusage, low price range, high quality of the cutting section, easy operate, it can walk both on the road and track etc.
Main Technical Data
internal combustion engine | model:HONDA GX200 |
power:4.8kW | |
rpm:3600r/min | |
sheet wheel (principle axis) | main shaft rpm:3030r/min |
specification: Φ400×Φ32×4 | |
Main spindle rpm | 3030r/min |
Cutting disc specification: | Φ400×Φ32×4 (≥70m/s) |
cutting time | 60kg/m≤120S |
number of sheet wheel usage | 50kg/m≥4 |
60kg/m≥3 | |
total weight | 39.5kg |
Figure Photos
