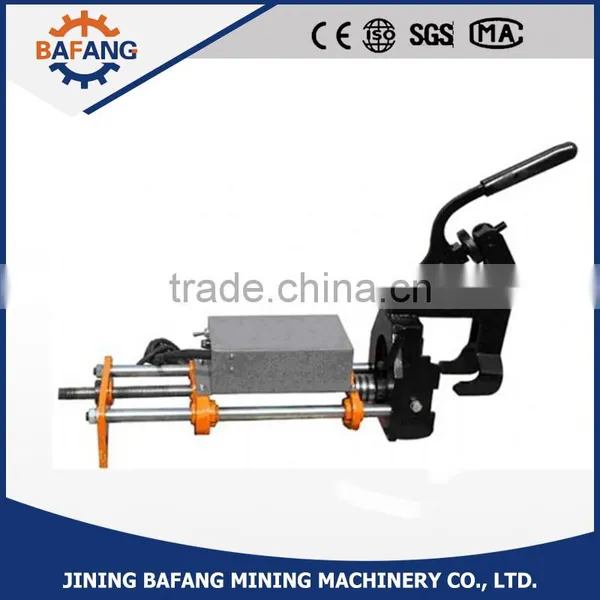

ZG-23 Electric Rail Drilling Machine With Good Quality
Feature:
1The drilling machine has the characteristics of safe, reliable, fast loadig, high accuracy, high efficiency, short time, fast efficiency, light weight, simple operation, flexible and convenient.
2, highspeed alloy steel hollow drill, drilling time is short, high precision, long service life.
3, the machine adopts the main axis of the cooling structure, with a high pressure cooling pot.
4, suitable for the 30 ~ 75kg/m each type of rail drill
Technical Parameters
1 | Model | ZG-23 | ZG-32 |
2 | Power | 1kW | 1.3kw |
3 | Drill diameter | 12-23MM | 23-32MM |
4 | Drill | Hollow drill or twist drill | |
5 | Spindle speeds | 300r/min | 130r/min |
6 | Drilling accuracy | ±0.5mm | |
7 | Installed time | 20-30s | |
8 | Unloading time | 15-20s | |
9 | Drilling time | ≤40s(60rail) | |
10 | Size | 700*400*360MM | |
11 | Weight | 40KG | 26KG |
Product Photos
