Railroad train track switches/Railway turnout/Railroad switch
- 50 Set / Sets per Month
- Qingdao
- Credit Card
- Internal combustion stud wrench
- railway container from China to Voronezh 596506 , Russia
- cold chain Belarus and Russia cold chain ,import and export transportation
- Rail Alignment Frames for aluminothermic welding
- Hydraulic Rail Bending machine Rail straightness machine
- Hydraulic rail tensor for track maintenance
Product Details
Type: | Other, Railway turnout | Material: | U71Mn/U75V | Dimensions (L x W x H) (mm): | Customer's Drawing |
Place of Origin: | Shandong, China | Brand Name: | Bafang | Model Number: | Customers' Drawings |
Product Description

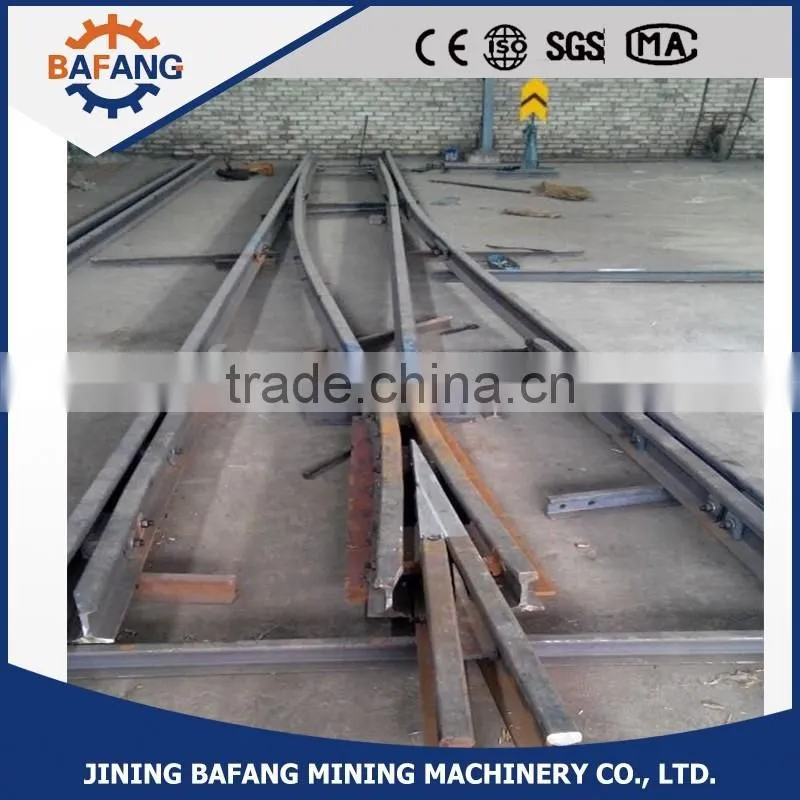

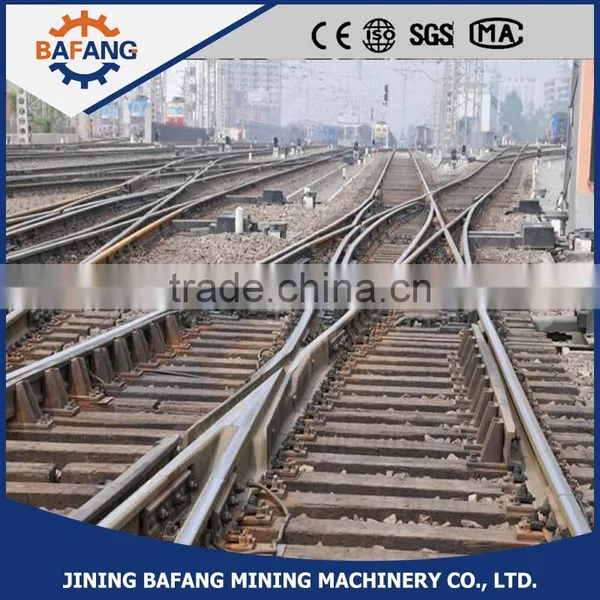

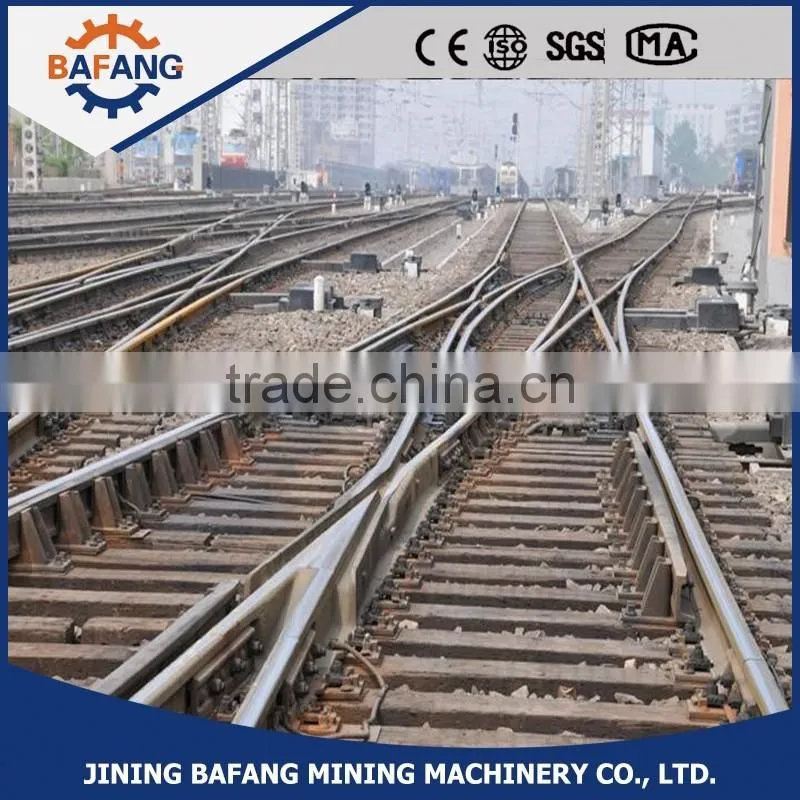

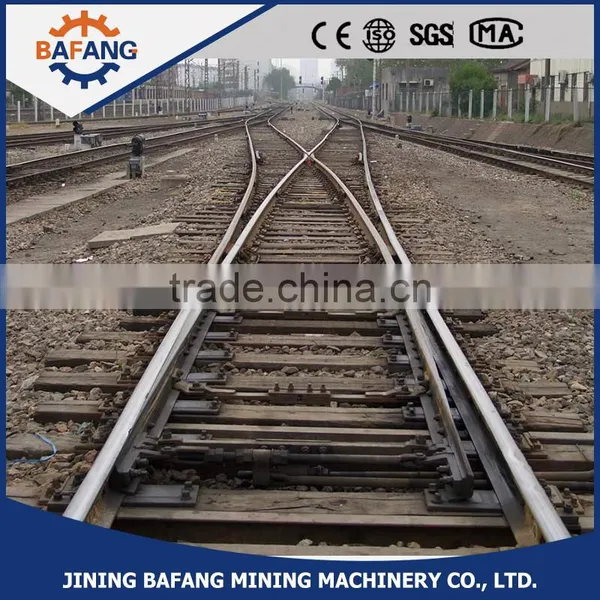

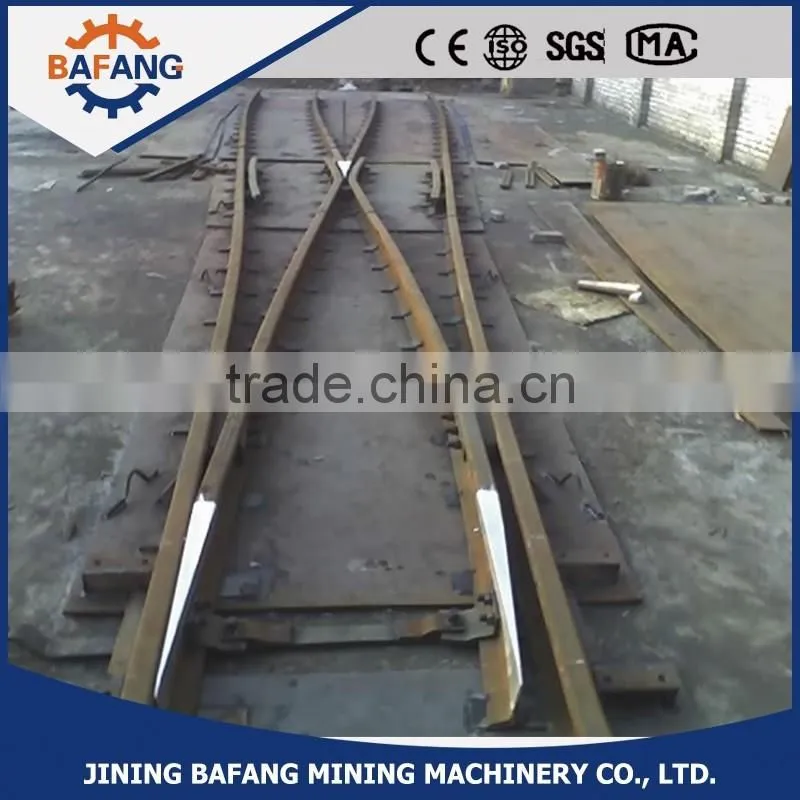

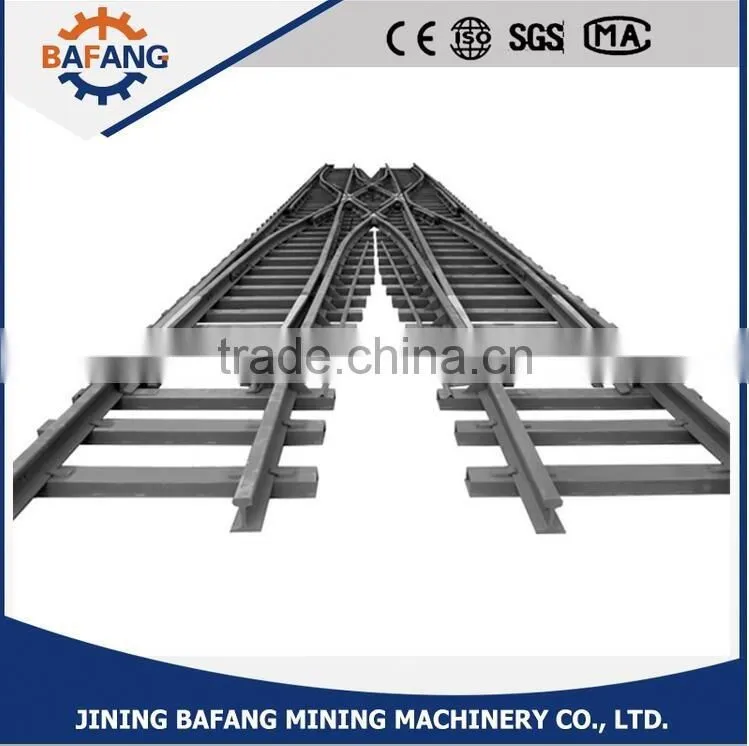

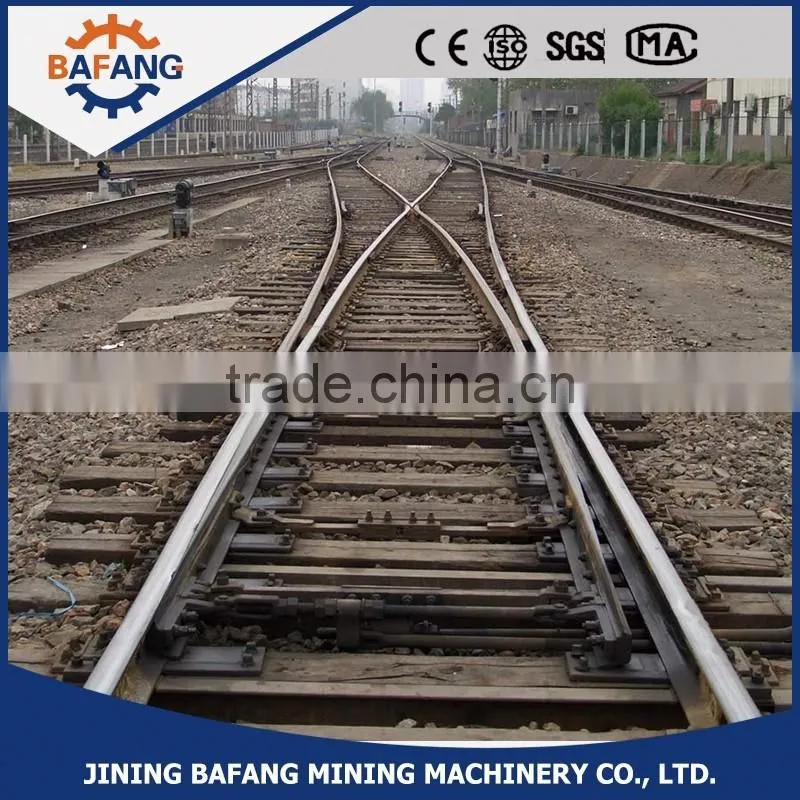

Railroad train track switches/Railway turnout/Railroad switch
Product Introduction
Crossover Track Switch many times, is called narrow gauge rail line, mine crossing the line switch
Narrow Gauge Crossover Track Switch is our country coal system USES special railway switch, is narrow track rail lines connecting the basic equipment. Crossing the line switch in mine construction and production of plays an important role, this kind of rail laying convenient, quickly, has the strict manufacture, acceptance criteria, the rail type, gauge, series of switch Angle, is applicable to coal mine industry in our country and changeable usage.
Crossover Track Switch Composition Instruction
(1)model is the first letter Z represents the narrow gauge railroad switch type code;
(2)the second and third letters, DK, DC, DX, JD, DZ, JC, TX represent the single open, symmetric, crossing the line, cross line, combination, diamond crossing, four rail line switch type.
(3) the main parameters of the first paragraph number 6, 7, 9, respectively, on behalf of the rail track, 6 = 600, 7 = 700, 9 = 700 mm, the main parameters of the first paragraph number 15,22,30,38,43, represent the switch rail, kg/m
Main Parameter
1.Understand the rail failure condition
First ask station attendant fault phenomenon, then on the console control switch test.
2.Registration switch stop using equipment.
3. Determine the cause of the switch is indoor or outdoor.
(1) if it is a single switch, ammeter has instructions to the console when operation, stating that the motion switch power is sent to the switch. If the switch can't speak to the specified position, it is outdoor. When operation switch, if the console ammeter without instructions, first of all to the machinery room outside plate of measurement have the switch voltage, if has motion switch electric voltage specification has been sent out, is outside the fault.
(2) if it is double acting switch, when the operation console the ammeter and I don't move, stating that the motion switch power is sent to the move switch, failure after move switch, is outside the fault.
if the yard can operation, trans, is not said. The multimeter ac 250 v, measure X1 X2) (or in line set between the X3 and presence of ac 110 v voltage, if there is a voltage, is outside the fault, it is indoor fault.
Figure Photos
