2016 Best Selling Advanced Mining Jaw Crusher
Application
1. PE series jaw crusher, whose reduction ratio up to 4-6, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc.
2. Compression strength does not exceed 320PA.
3. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.
Mini jaw crusher Feature
1. Heat treated shafts forged of special alloy to handle overloads and hard materials.
2. Heavy duty self aligned spherical roller bearings absorbs and withstand extreme shock, radial and thrust load and offer substantially more bearing life.
3. Much heavier, stronger, massive one piece frame, stress- relived for optimum reliability.
4. Toggle bearing wedges for easy in, easy out bearing replacement.
5. Hardened barrel wear lines (Side plate) protect the pitman (Lever).
6. Replaceable Fix & swing jaw plate made out high chrome & manganese percentage.
7. One piece cast pitman (Lever) stands up to the most demanding crushing applications.
8. Larger stroke, deeper crushing motion, steeper nip angle means higher capacity and greater throughput
Technical Parameter
Model |
Feeding opening (mm) |
Max Feed size (mm) |
Setting adjustment range |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall Dimension (mm) |
PE 150X250 |
150X250 |
125 |
10-40 |
1-3 |
5.5 |
1.5 |
896X745X935 |
PE 250X400 |
250X400 |
200 |
20--80 |
5--20 |
15 |
3 |
1430X1310X1340 |
PE 400X600 |
400X600 |
350 |
40--100 |
15-60 |
30-37 |
7 |
1700X1732X1653 |
PE500X750 |
500X750 |
425 |
50--100 |
40--110 |
45--55 |
12 |
2035X1921X2000 |
PE600X900 |
600X900 |
480 |
65--160 |
90--180 |
55-75 |
17 |
2290X2206X2370 |
PE 750X1060 |
750X1060 |
630 |
80--140 |
110--320 |
90--110 |
29 |
2655X2302X3110 |
PE 900X1200 |
900X1200 |
750 |
95-165 |
220--450 |
110--160 |
52 |
3200X3050X2950 |
PE1000X1200 |
1000X1200 |
850 |
195-265 |
315--550 |
110--160 |
57 |
38000x3166x3045 |
PE1200X1500 |
1200X1500 |
1020 |
160--320 |
400--850 |
180--220 |
100 |
4200x3750x3820 |
PEX150X750 |
150X750 |
125 |
10--40 |
8--20 |
15 |
3 |
1200X1500X1200 |
PEX250X750 |
250X750 |
210 |
25--50 |
15--40 |
22--30 |
5 |
1667X1545X1020 |
PEX250X1000 |
250X1000 |
210 |
25--60 |
15--50 |
30--37 |
7 |
1550X1964X1380 |
PEX250X1200 |
250X1200 |
210 |
25--60 |
20--60 |
37--35 |
8.5 |
2192X1900X1950 |
PEX300X1300 |
300X1300 |
250 |
20--90 |
30--100 |
55 |
13 |
2720X1950X1600 |
PEX350X750 |
350X750 |
300 |
15--30 |
16--55 |
30--37 |
7 |
1650X1869X1597
|

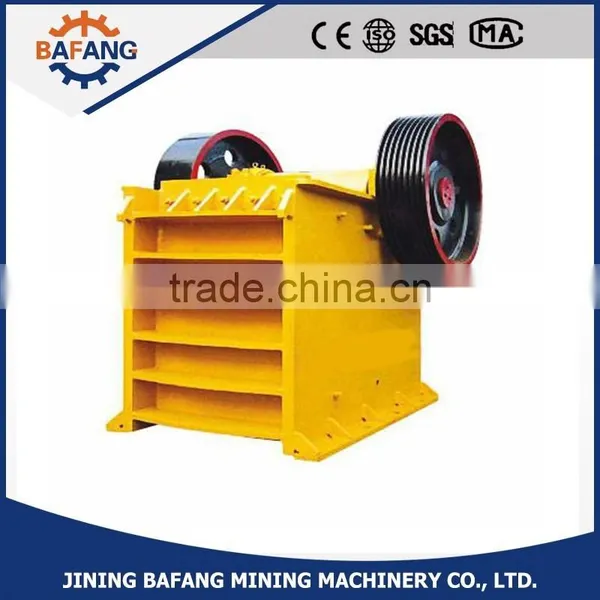

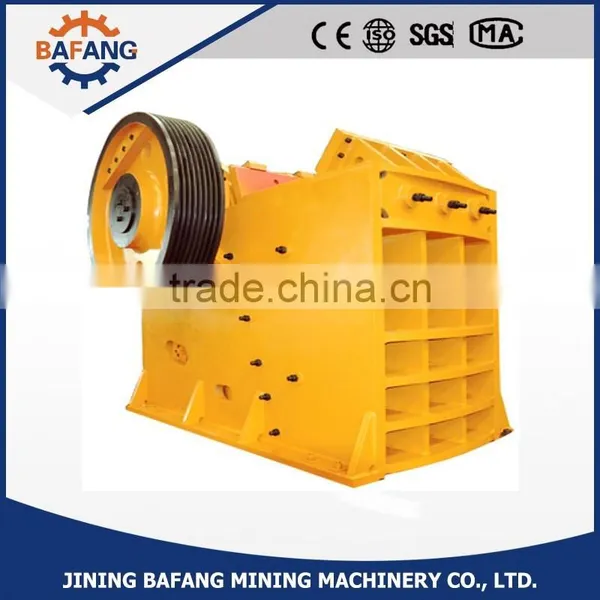

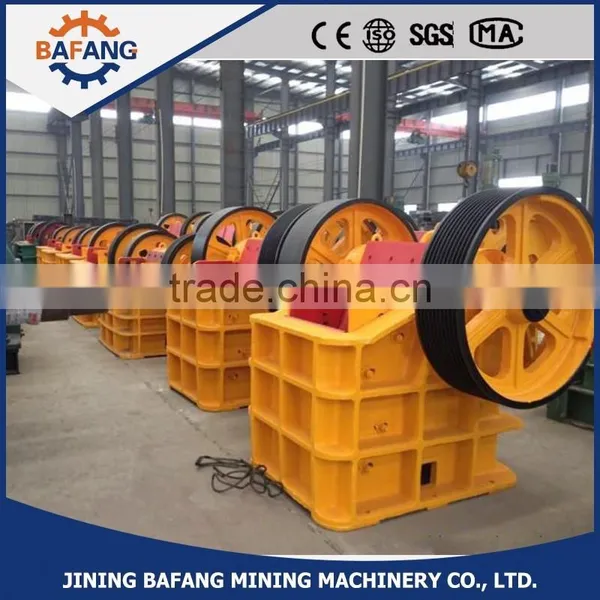

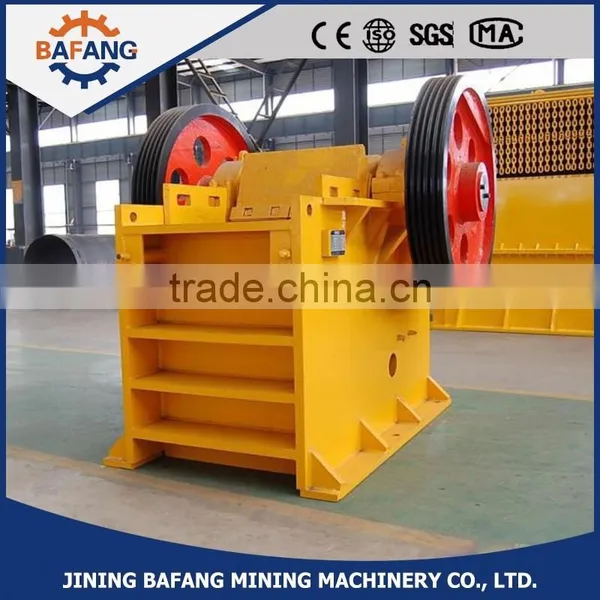

Figure Photos
