Mine Sinking Shaft Winch 5Ton for Pulling and Lifting
- Qingdao
- T/T Credit Card
You May Like
-
China Bafang Made JZ Series Electric Sinking Winch
-
Heavy Duty Lifting Hoist Sinking Electric Winch
-
Factory Price 2JP Series 5 Ton Electric Mine Scraper Winch
-
China Competitive JP Series Single Drum Mining Scraper Winch
-
High Speed Electric Mining Scraper Winch With Electric Trolley
-
JH Series Mine Mining Hoist Vehicle Electric Prop Pulling Winch
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | JZ | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mine sinking shaft winch 5Ton for pulling and lifting
JZ series sinking winch with lifting capacity, high rope capacity, smooth rotation, etc.
It mainly used in coal mining, metal and non-metallic mineral pit shaft engineering in suspension stage, water pump, ram, compressed air cylinder, excavating equipment such as grouting pipe and the tension rope, also can be used for other underground and ground lifting heavy objects.
Technical parameter
Model | JZ-5/400 | JZ-10/600 | JZ-16/800 | JZ25/1000 |
Max tension | 50KN | 100KN | 160KN | 160KN |
Capacity | 400N | 600N | 800N | 1000N |
Speed | 6m/min | 6 m/min | 6 m/min | 6 m/min |
Diameter | 23mm | 31 mm | 40 mm | 40 mm |
Power | 11kw | 22 kw | 30 kw | 37 kw |
Voltage | 380v | 380 v | 380 v | 380 v |
Dimension (mm) | 2375*1970*1340 | 3037*2570*1770 | 3358*3200*2240 | 3508*3200*2240 |
Weight | 380kg | 380 kg | 380 kg | 380 kg |

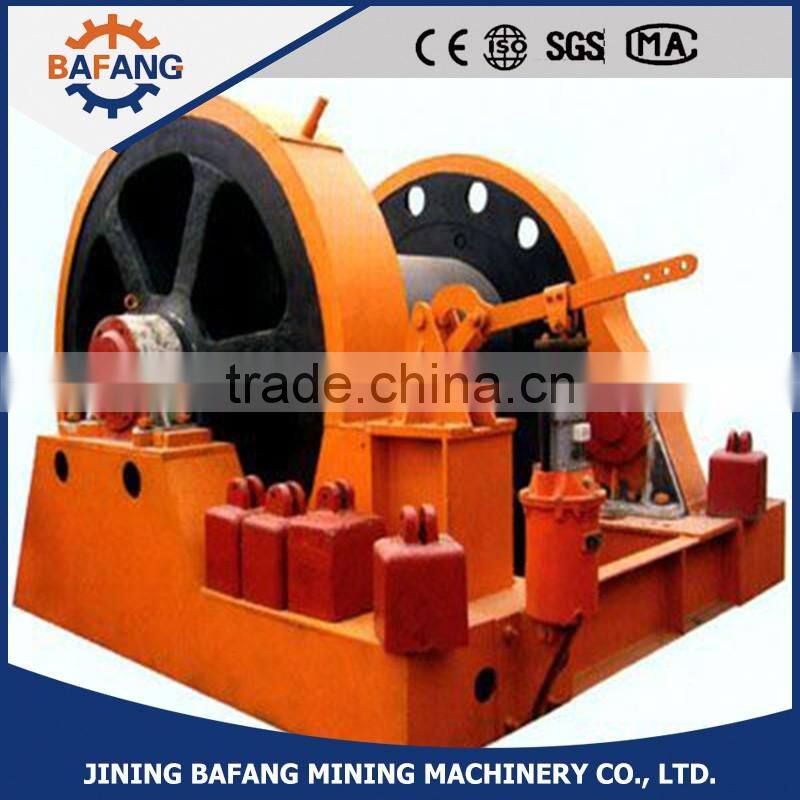

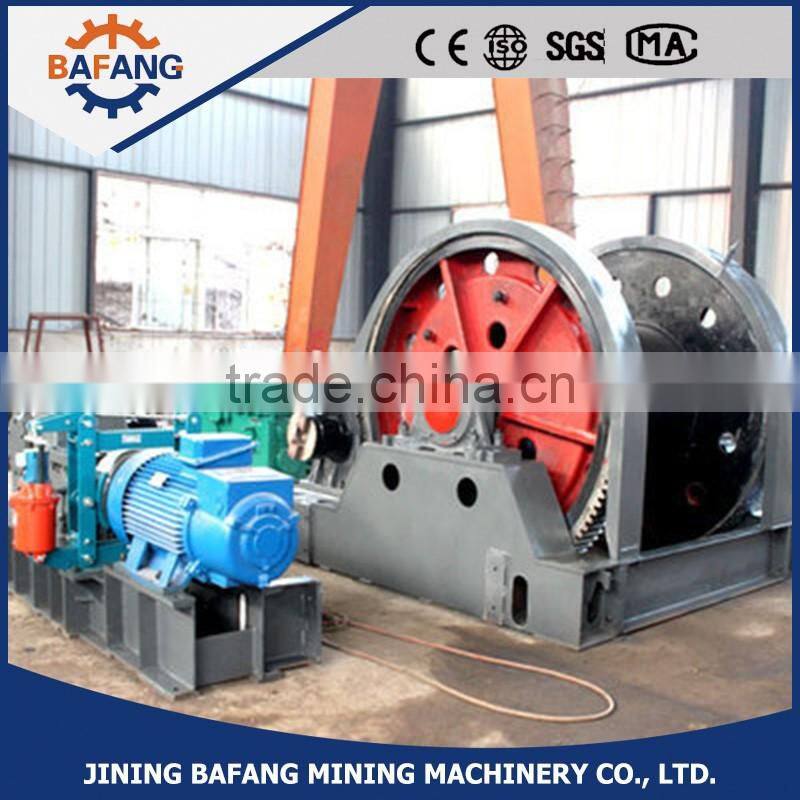

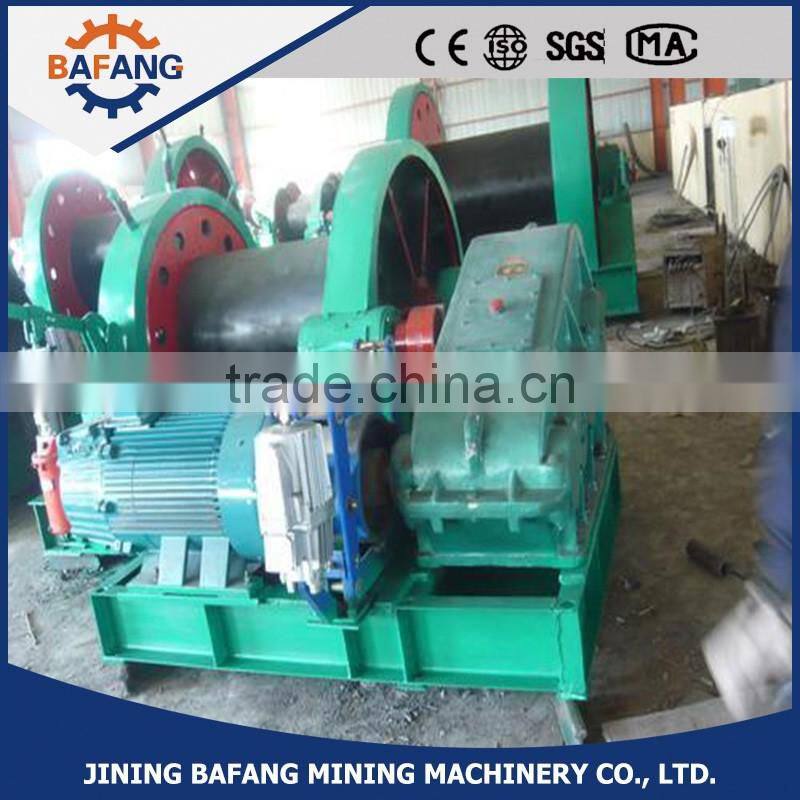

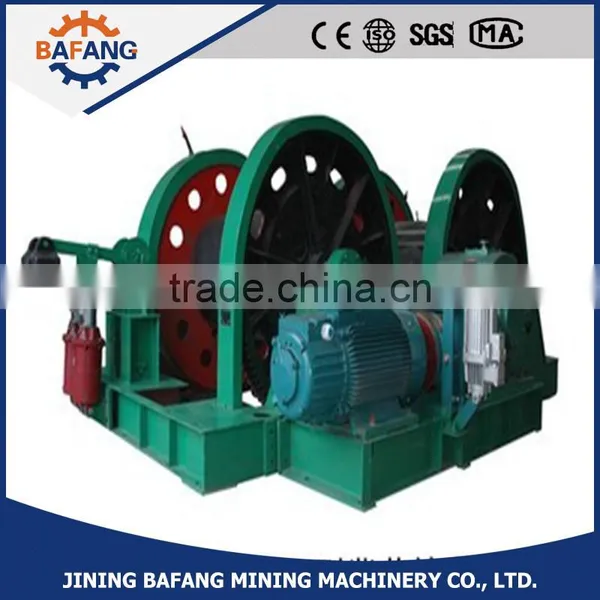

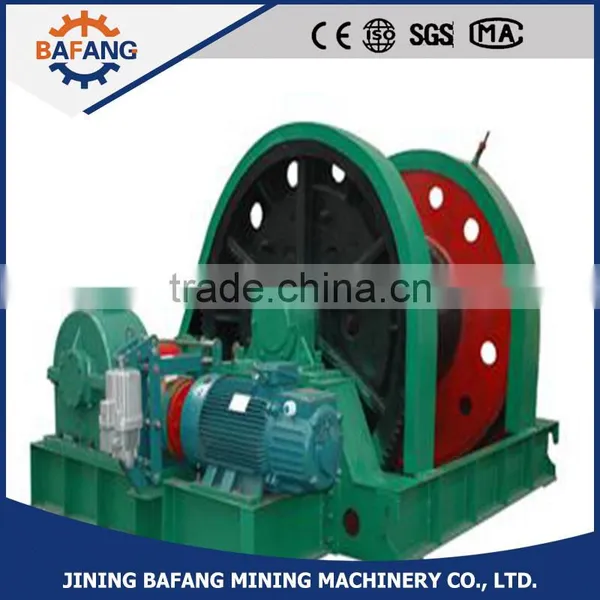

Product pictures
