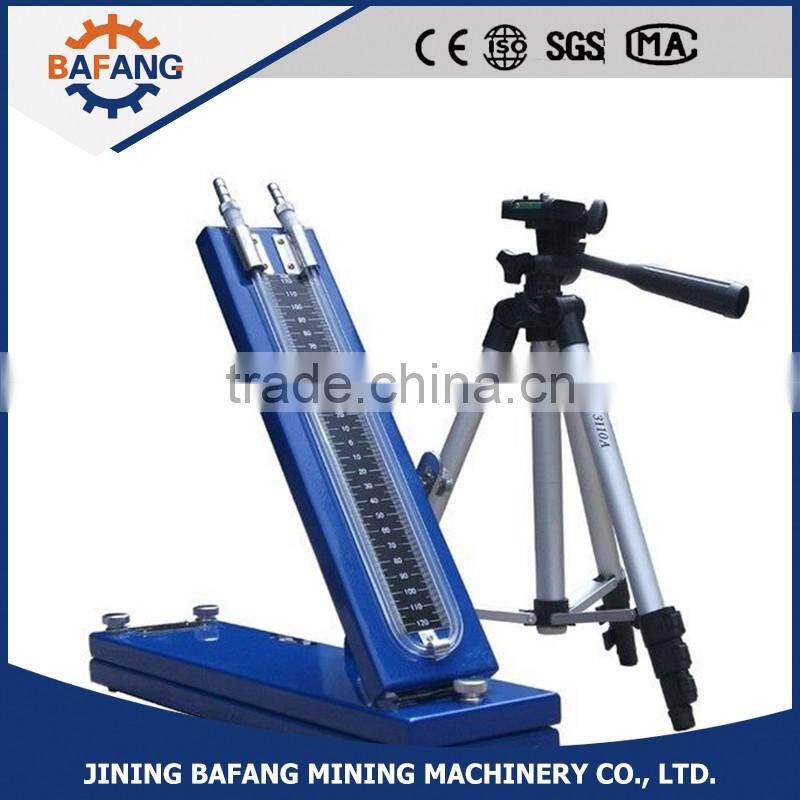

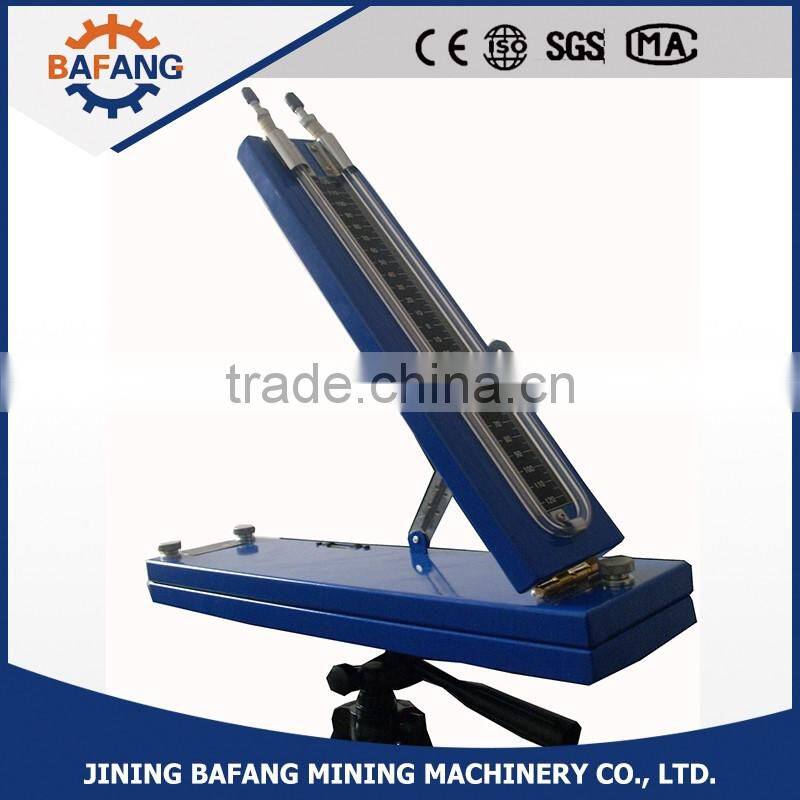

CQY-150 U-shape Inclined Manometer, Pressure Meter
Bafang CQY-150 U-shape Inclined Manometer, pressure meter
Specifications
Measuring meter pressure, differential pressure, and wind speed, resistance, flux in the ventilation
system under mine.
CQY-150 U-shape Inclined Manometer is a portable and obliquity adjustable micro pressure
meter, can be used for measuring the meter pressure and differential pressure. In addition,when
working,It will be matched with a pitotgage to measure the wind speed, wind resistance and flux
in the ventilation system under a mine. Also it can be used for calibrating a wind meter.
Main specification | |
Item |
Specification |
Measuring range |
(0~150)mmH2O (1471Pa) |
Accuracy grade |
Grade 1 |
Inclination factor |
0.1, 0.2, 0.5, 0.7 |
Working medium |
95% ethanol(alcohol) |
Dimensions |
400*100*70mm |
Weight |
4.6kg |
Match |
Tripod |
