Product Details
Place of Origin: | Shandong, China | Brand Name: | Bafang | Model Number: | CQY-150 |
Product Description

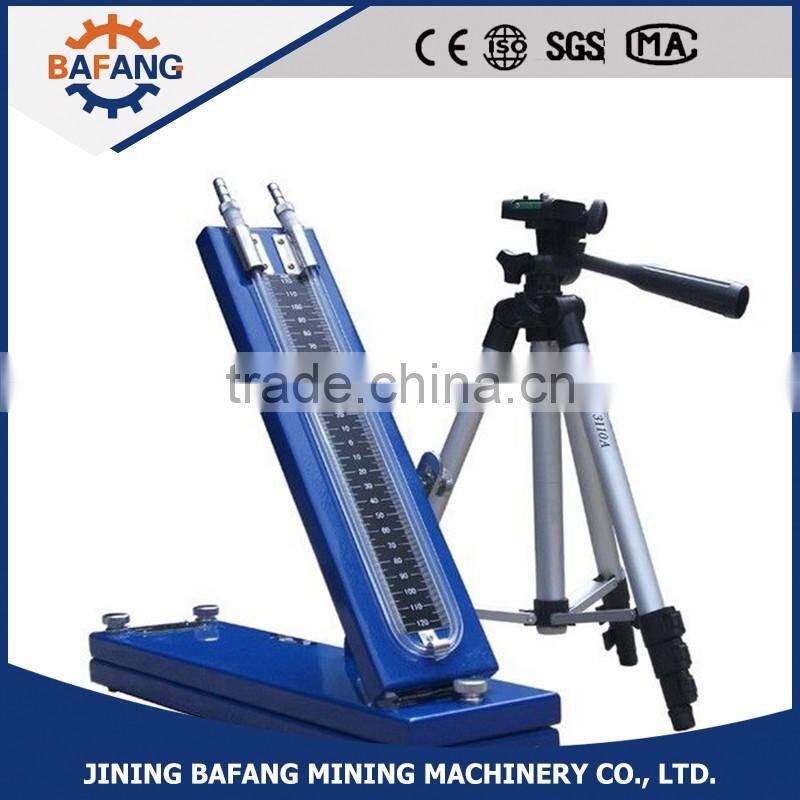

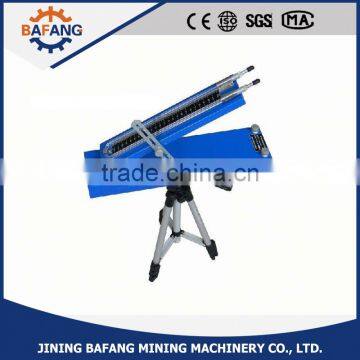

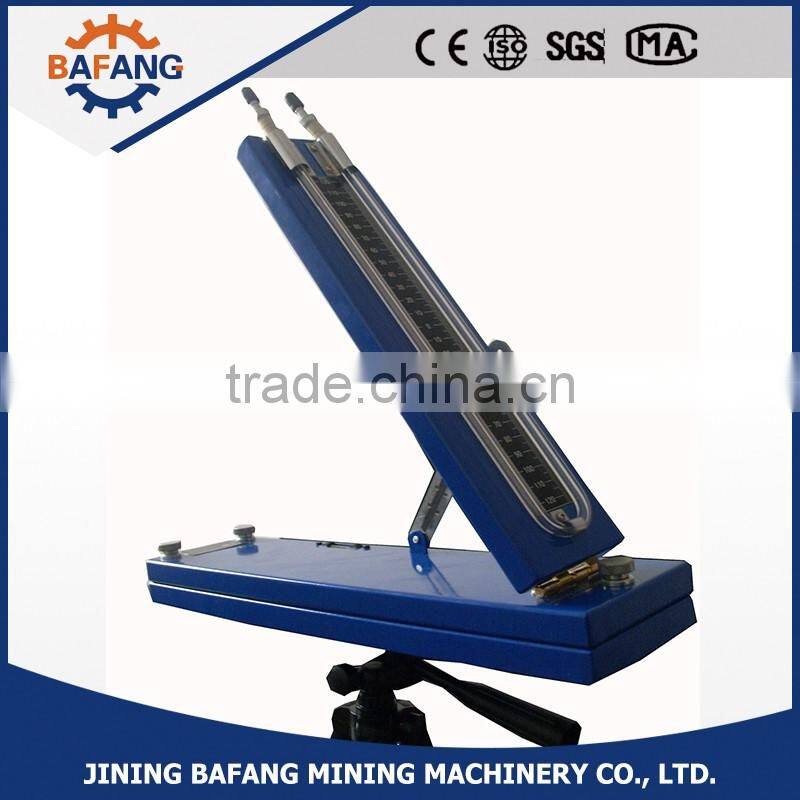

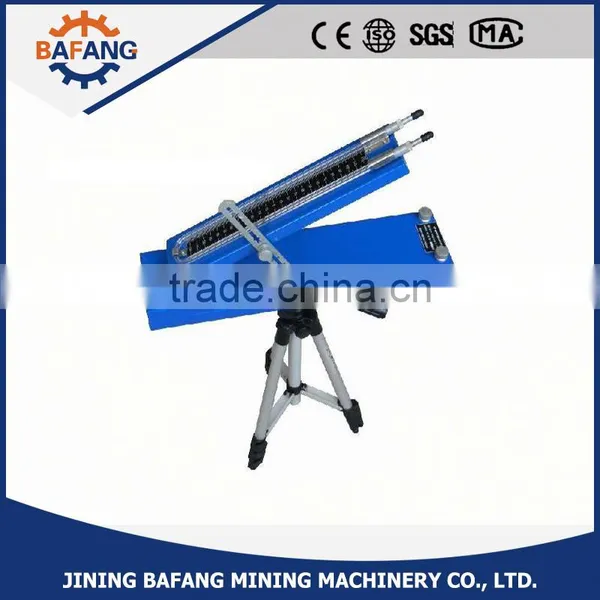

Hot sale U-shape Inclined Manometer, pressure meter CQY-150
Applications
Measuring meter pressure, differential pressure, and wind speed, resistance, flux in the ventilation system under mine.
CQY-150 U-shape Inclined Manometer is a portable and obliquity adjustable micro pressure
meter, can be used for measuring the meter pressure and differential pressure. In addition,
when working, it will be matched with a pitotgage to measure the wind speed, wind resistance
and flux in the ventilation system under a mine. Also it can be used for calibrating a wind meter.
Main specification
Item | Specification |
Measuring range | (0~150)mm H2O (1471Pa) |
Accuracy grade | Grade 1 |
Inclination factor | 0.1, 0.2, 0.5, 0.7 |
Working medium | 95% ethanol(alcohol) |
Dimensions | 400*100*70mm |
Weight | 4.6kg |
Match | Tripod |
