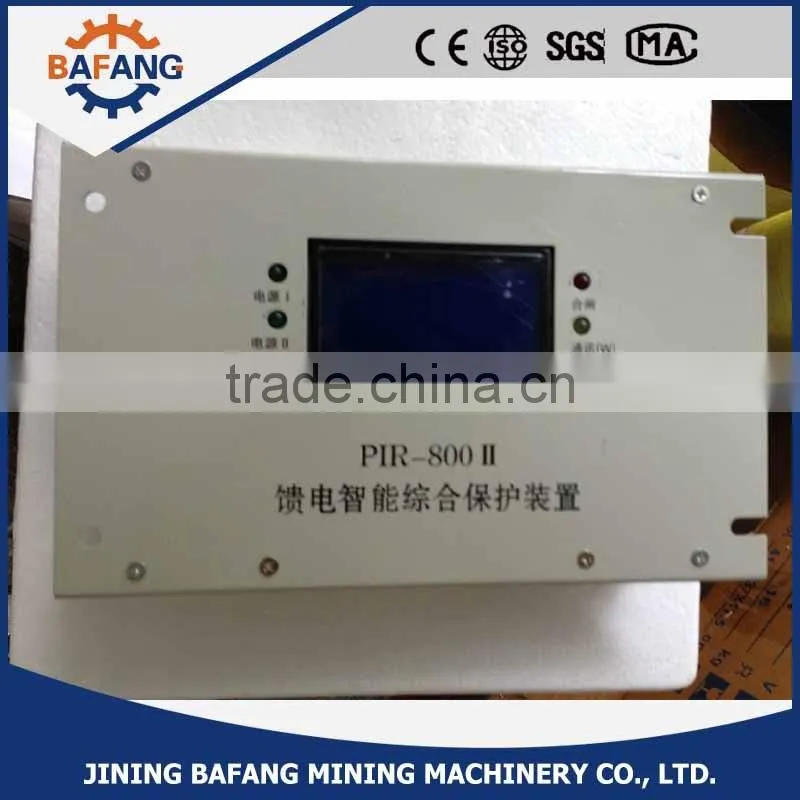

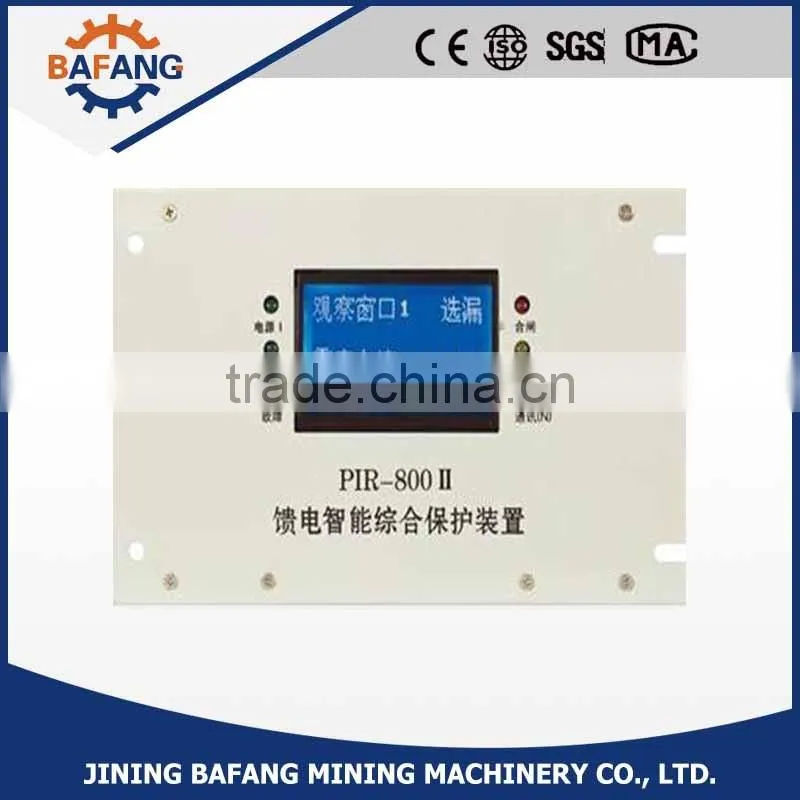

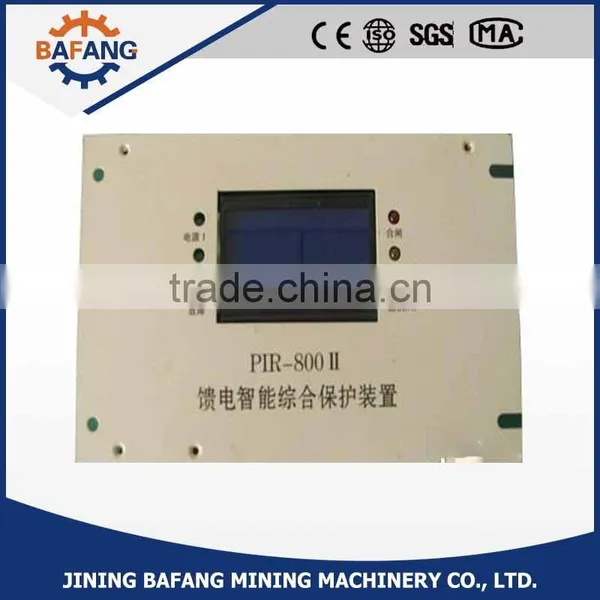

PIR-800 Power supply smart integrated protect device
Features
It includes 3 voltage grade:380 v, 660 v, 1140 v , with the full digital setting.
It has the protection function of voltage shortage, overtension, overload, short circuit, imbalance of three-phase , phase failure, leakage blocking, leakage protection and selective leakage.
It working with RS485 four remote communication,Memory and inquiry the fault,and it can test the function through the menu.
Technical Data
Rated current:40~1000A
Rated voltage:10VAC
Rated frequency:50Hz
Measuring details:U,I,R,U0,I0
Measuring accuracy:±3%
Working environment
Air pressure:80kPa~110kPa
Working temperature:-5℃~+55℃
Humidity:≤95%(+25℃)
Working in gas environment without obvious damage to the insulating and waterproof places
