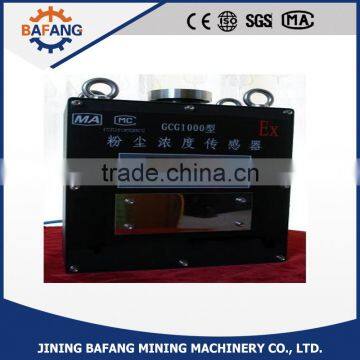

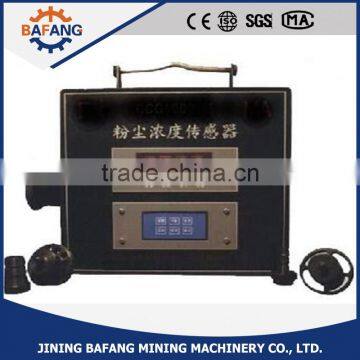

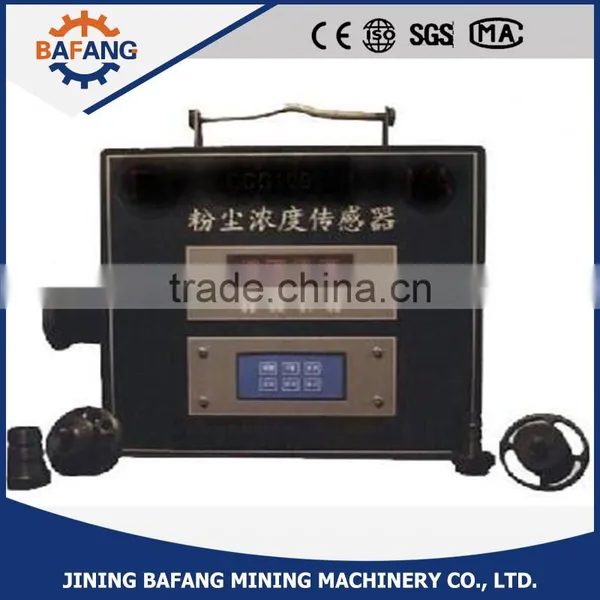

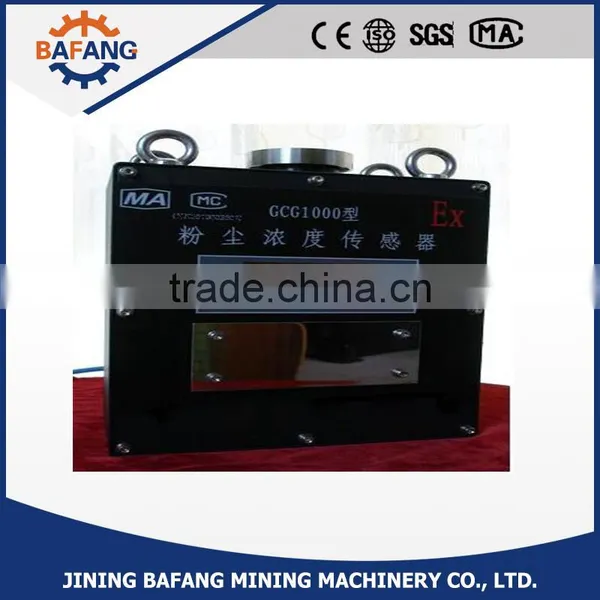

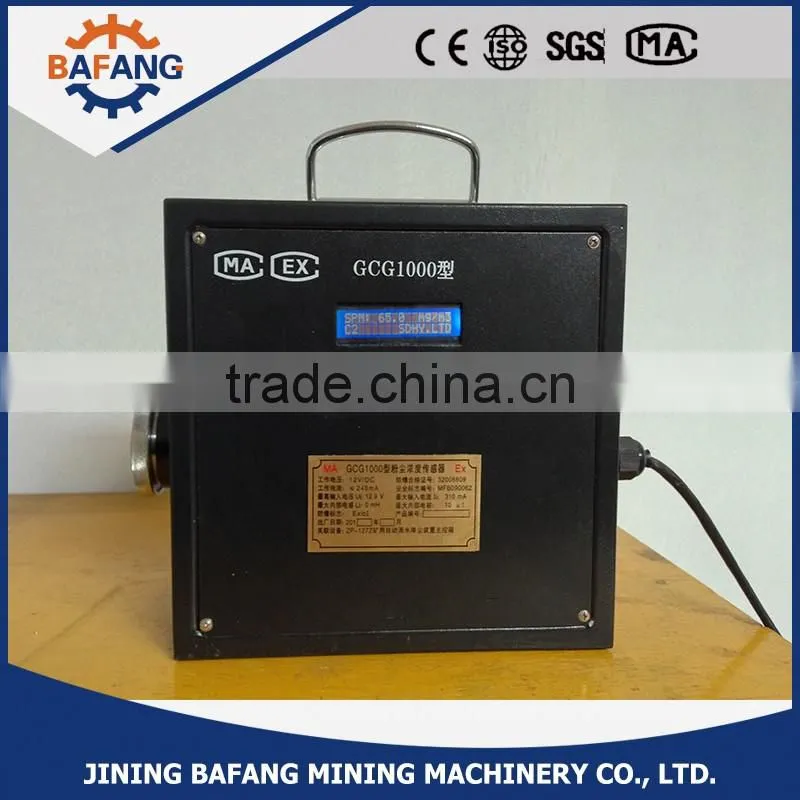

GCG1000 Dust concentration sensor for coal mine
Introduction
GCG1000 Dust concentration sensor is a kind of absorption, absorbing the domestic and foreign advanced technology of dust.It used to the principle of swimming float dust exposure in the darkroom light scattering intensity of dust is proportional to the dust concentration. The scattering light intensity of light into electrical signals to compute the relative quality of dust concentration.
GCG1000 Dust concentration sensor can calculate the relative mass concentration of dust with the aerosol testing technology. Then through the preset parameter values, it can calculate the mass concentration of dust. Finally through the LCD ,it is converted into a frequency signal
or a current signal output.
The sensors can display the coal mine dust concentration continually and real time while 200-1000HZ frequency signal output compatible with the coal mine monitoring systems and 4-20mA current signal for mine monitoring system or other systems. Dust concentration
through preset threshold warning point of dust concentration, it immediately outputs a
warning signal to alert staff to promptly activate the corresponding dust measures when dust concentration reaches the value measured.
Specification
Measuring range |
0mg/m3~1000mg/m3 |
Measuring relative error |
±10% |
Sampling flux error |
18L/min±2.5% |
Working voltage |
12VDC~18VDC |
working current |
≤200mA |
Explosion protection |
ExibI |
Working Temperature |
O℃~ 40℃ |
relative humidity |
≤95% |
