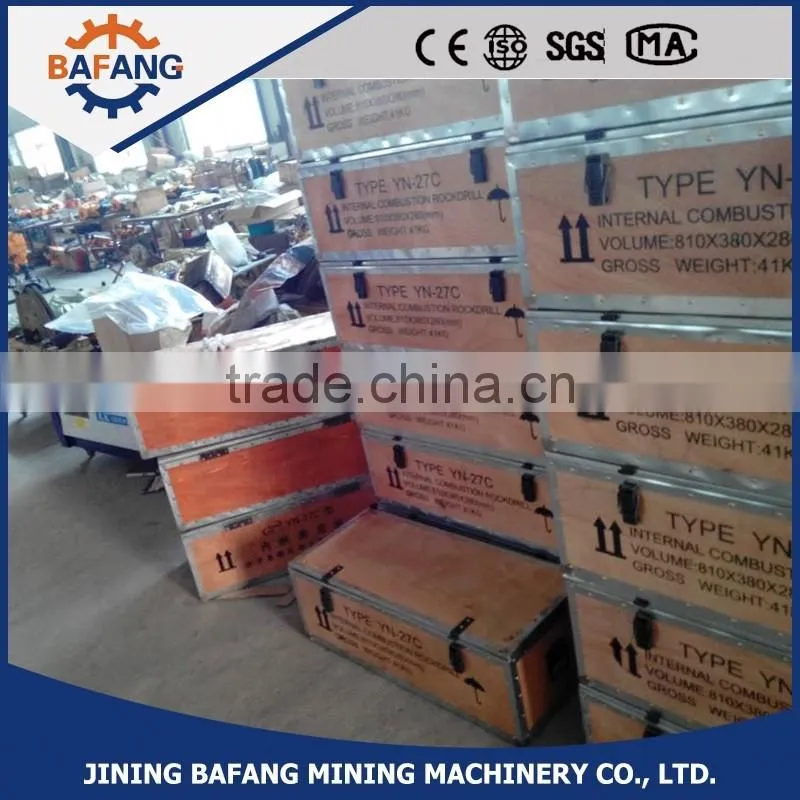

Petrol Gasoline Hand Hammer Rock drill YN27C gasoline rock drill
- 500 Set / Sets per Month
- QINGDAO
- T/T Credit Card PayPal
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Other, ROCK BREAKER | Power Type: | Gasoline |
Place of Origin: | Shandong, China | Brand Name: | BAFANG | Model Number: | yn27 |
Usage: | Other, holes | Voltage: | 00 | Power(W): | 00 |
Dimension(L*W*H): | 81*38*31cm | Weight: | 30kg | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

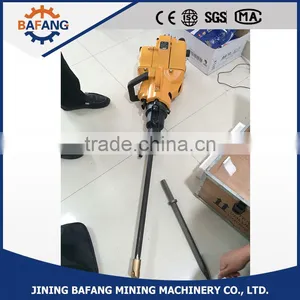

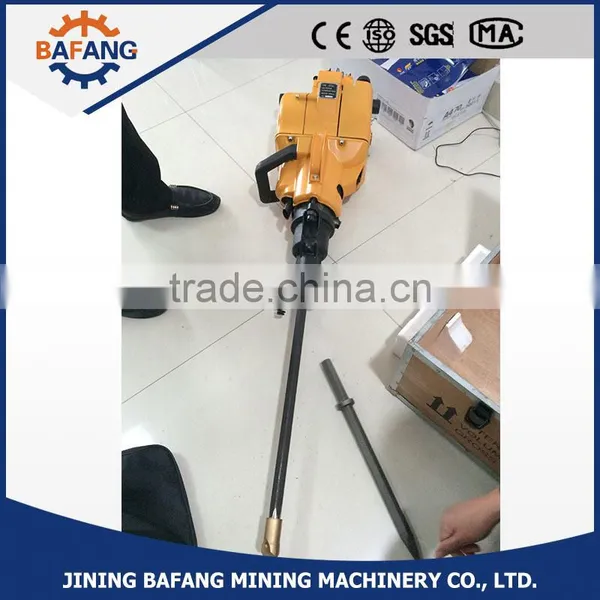

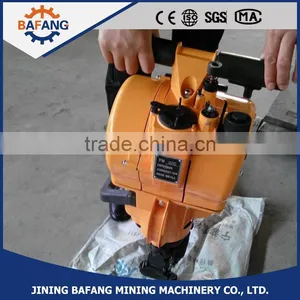

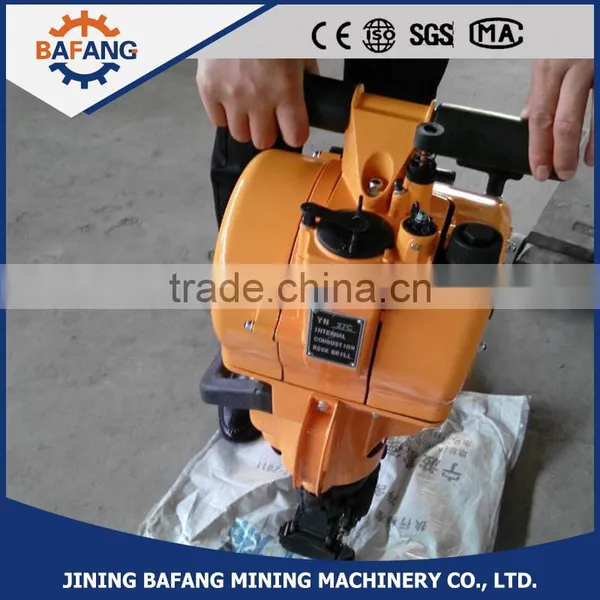

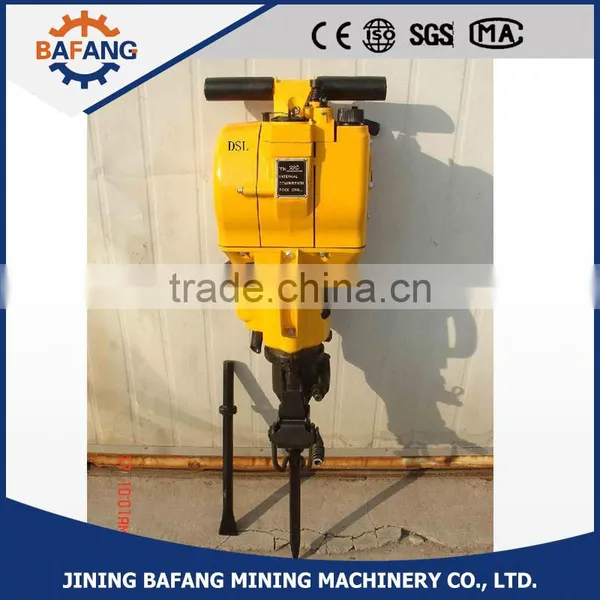

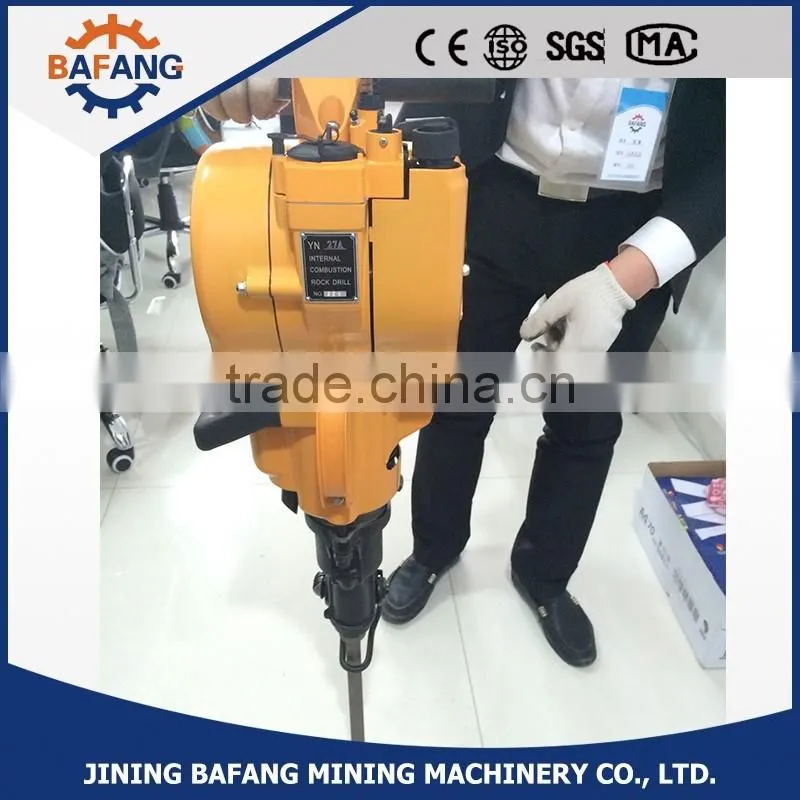

Petrol Gasoline Hand Hammer Rock drill YN27C gasoline rock drill
Specifications
manual rock drill
1.Weight:27 kg
2.Tank capacity :1.14 L
3.Drilling speed:>250mm/min
4.Max drilling depth:6 m
YN27J manual rock drill
YN27J manual rock drill is a small type of rock drill composed the power machine, working machine and air compress in one. It is powered by the small gasoline engine and used for drilling on the hard rock or rock with medium hardness, the hardness of rock is f8 to f18. Because it is self-powered, it is especially convenient to be used for projects without other power supply, or projects that are inconvenient for conveying the large-volume unit, or for mobile construction projects.
manual rock drill feature:
1. Easy to operate, just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole (max depth 6m) and <45° upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.
6. Rubber hand handle, shock absorption, which has certain protective effect for operator.
YN27J manual rock drill technical parameters
Weight | 27kg |
Dimension | 746*315*229mm |
Function | Drilling |
Type of carburetor | Hand needle valve, no floating type |
Type of engine | Single cylinder,air cooled two strokes |
Diameter of engine piston | Φ58mm |
Stroke of engine piston | 70mm |
Rotating speed of engine | ≥2450R/min |
Rotating speed of drilling rod | ≥250R/min |
Oil consumption | ≤0.12L/min |
Max. drilling depth | 6m |
Tank capacity | ≥1.14 L |
Shank size | Hex22x108mm |
Ignition system | Controllable silicon, Contactless system |
Mixture ratio of gasoline and lubrication oil | 12:01 |
