Road construction used pneumatic rock drill 7655(YT23) with air leg
Applications for pneumatic rock drill 7655:
The rock drill YT23(7655) is a kind of high efficiency hand hold rock drill machinery. It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defense project facility.
It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole diameter is 34-42 mm, drill hole depth is 5 m.
Specifications of pneumatic rock drill 7655:
pneumatic rock drill YT23(7655) | |
Model | YT23(7655) |
Weight | 24kg |
Length | 628mm |
Cylinder diam. | 76mm |
Piston stroke | 60mm |
Working pressure | 0.5-0.6Mpa |
Impact energy | ≥60.2 (J) |
Impact frequency | ≥36Hz |
Air consumption | ≤80L/s |
Working water pressure | 0.2~0.3 (Mpa) |
Air pipe inner diam. | 25 (mm) |
Water pipe inner diam. | 13 (mm) |
Rock drill hole diam. | 34~42 (mm) |
Rock drill hole depth | 5 (m) |
Shank size | 22*108 (mm) |
Oiler FY200A | |
Tank | 200ml |
Weight | 1.2kg |
Optional for Air leg:
Air Leg FT160A &FT160B | ||
Model No. | FT160A | FT160B |
Weight | 17kg | 16kg |
Max. Length of air leg | 3006mm | 2526mm |
Min. Length of air leg | 1668mm | 1428mm |
Push length | 1338mm | 1098mm |
The maximum axial thrust | 2000N | 2000N |
Features of pneumatic rock drill 7655:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3. It accepts heavy duty bits
4. Reliable structure,easy and stable operation
5. Drill diam. can be from 32mm-60mm.
6. Hand-held and air legs rock drill accessible.
7. Provide the ultimate combination of performance and economy.
8. Smart,and durable.

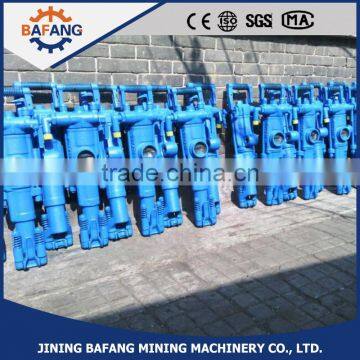

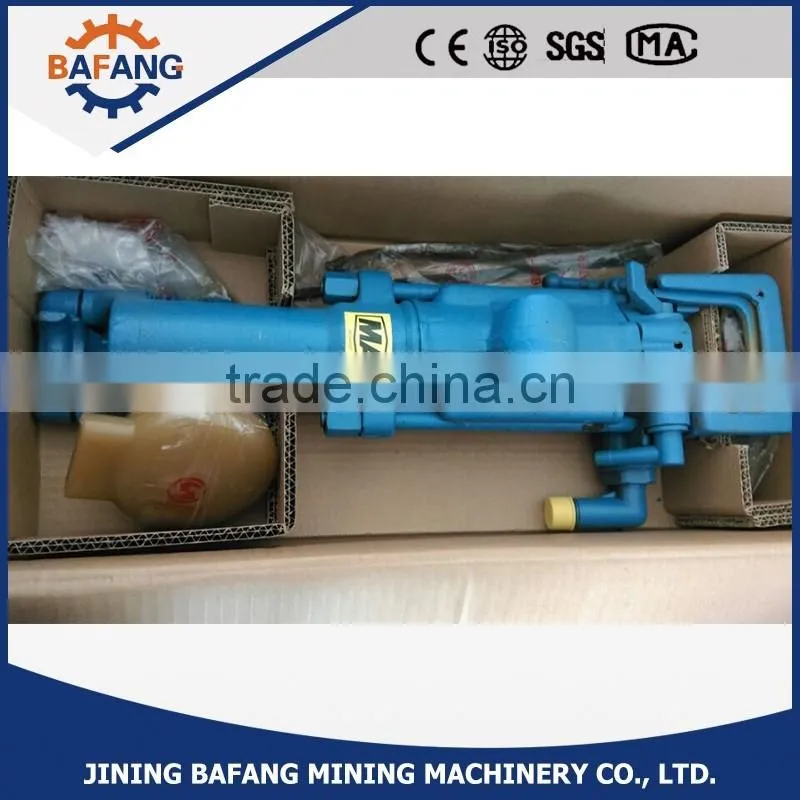

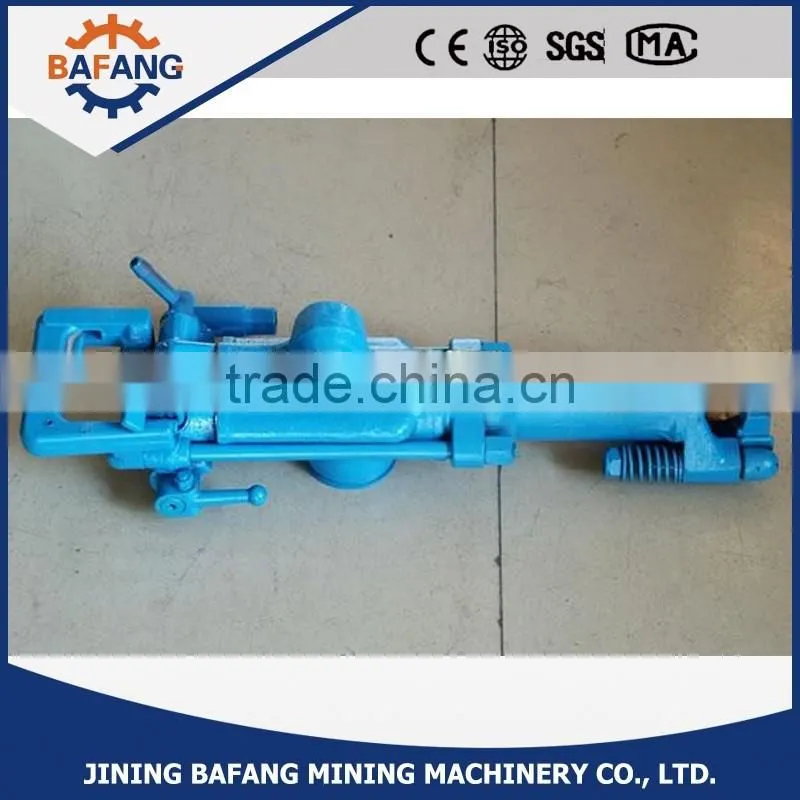

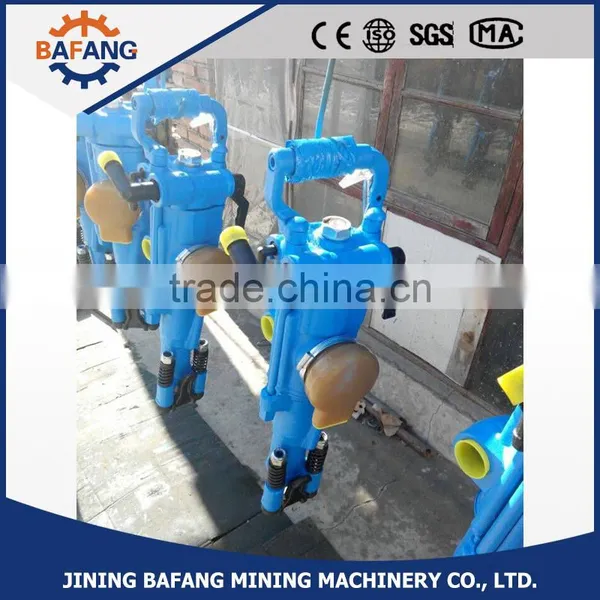

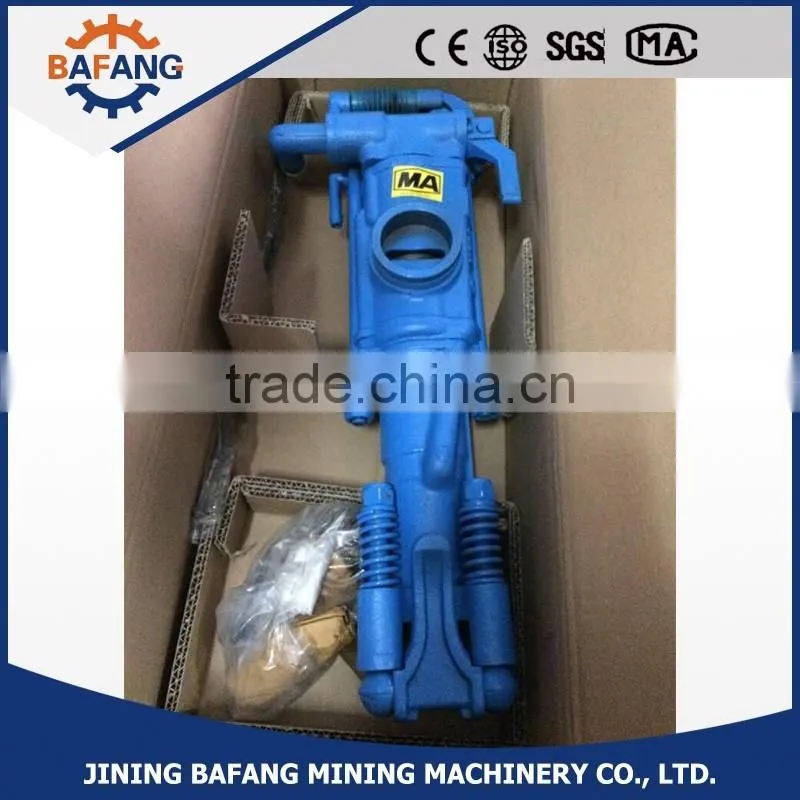

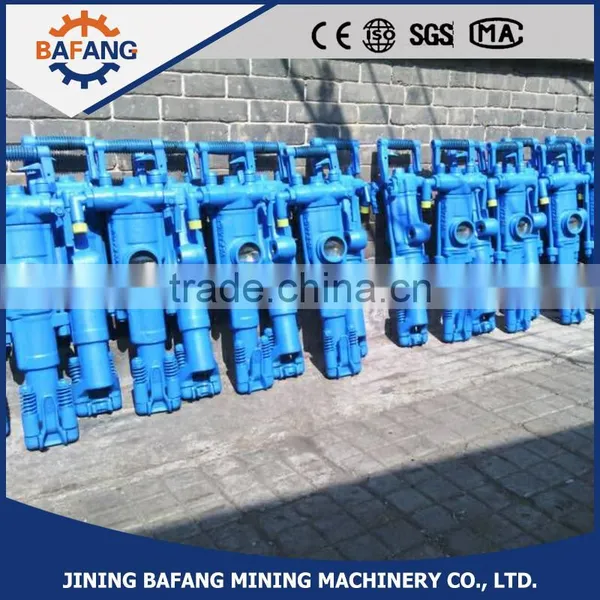

pneumatic rock drill 7655 with air leg show:
