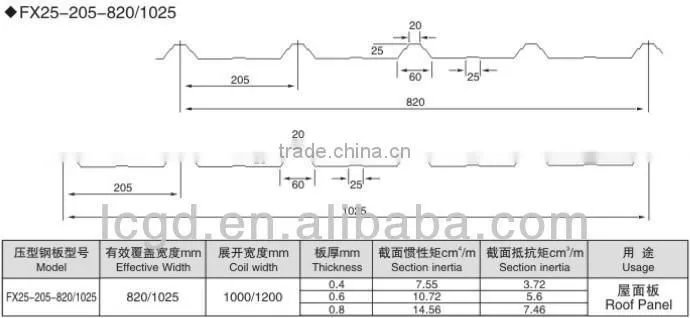

1.Profile |
1).Thickness:0.35-0.8mm 2).Feeding width:1000mm 1200mm 3).Effective width:820mm 1025mm
|

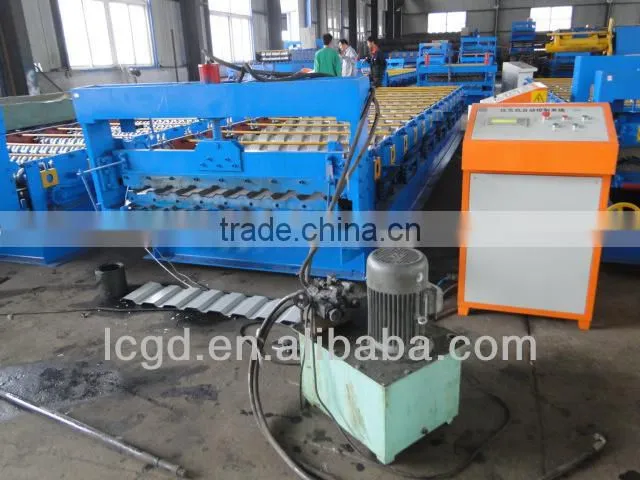

2. Process flow | Decoiler→feeding→ forming→Cut to length→ Product stand |
3Manual Decoiler | 1).Material coil inner diameter: 450mm-550mm 2).Max coil width: 1250mm 3).Carrying capacity: 5000kg
|

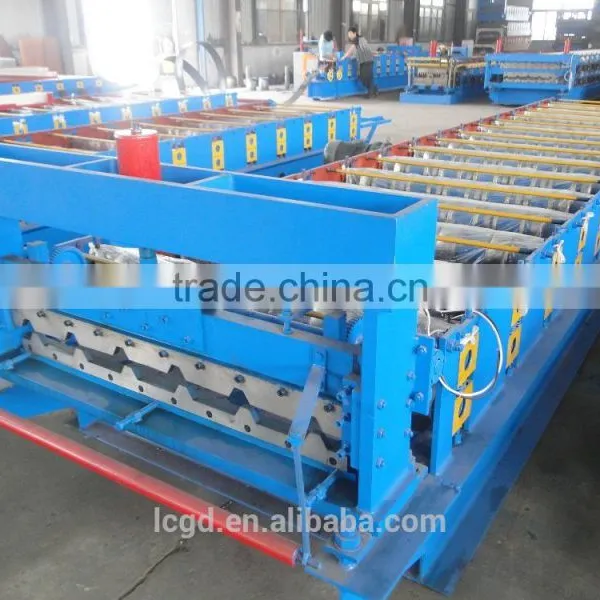

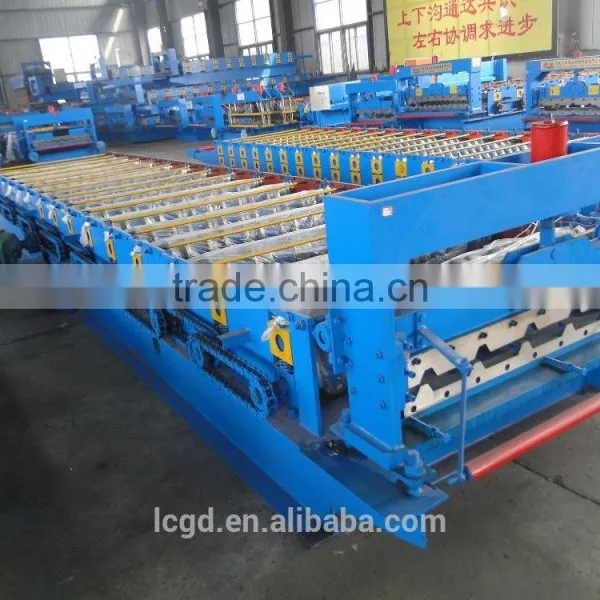

4.Forming system | 1).Number of forming steps:13steps 2).Material of shaft:45# steel . Outer diameter75mm 3). Material of roller:45# steel With chromed 0.05mm. 4).Main motor power:3kw 5).Speed of forming:8-10m/min side plate:16mm 6).Machine frame:350# steel welding 7).Machine's weight and out size: 7.2*1.4* 1.5M(L*W*H) Weight:3.2ton 8).Voltage:380v 50hz 3-phase
|

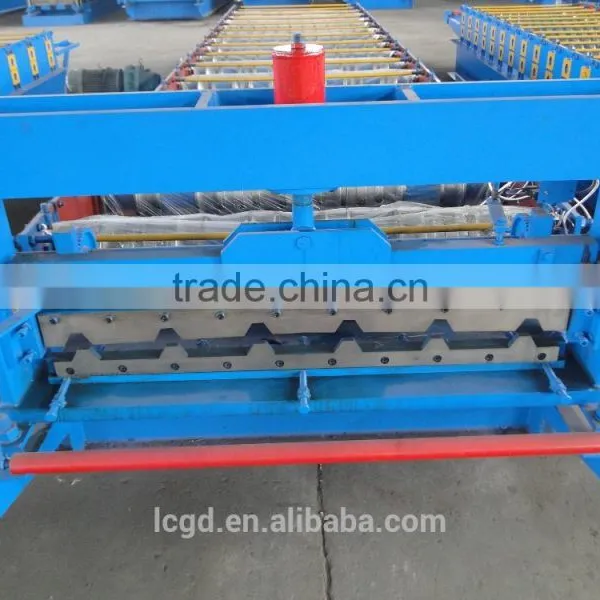

5. Cutting system | 11).Hydraulic cutter 2).Blade and mold material: Cr12 steel with quenched treated 60-62°C 3).Cutting system: advanced hydraulic drive, automatic cutting after forming,no distorting or wasting,high level safety factor.(main motor stop cutting) |

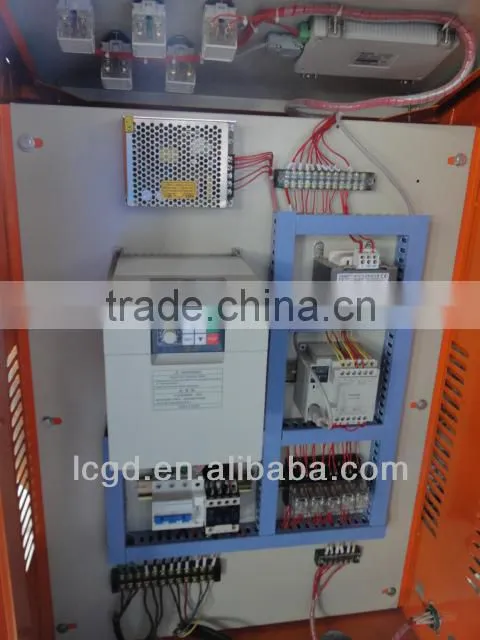

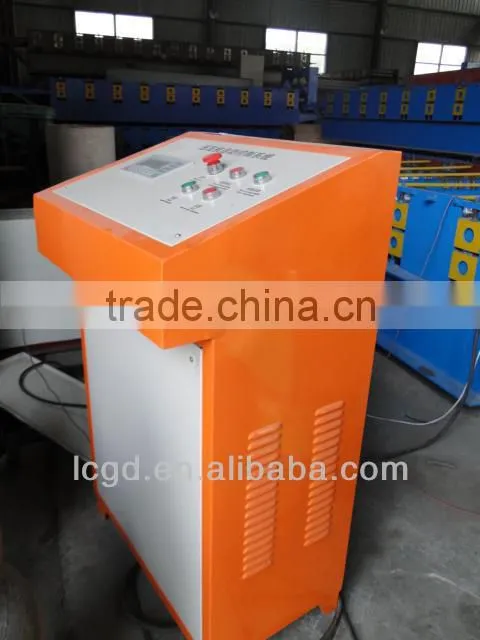

6.Control system |
1 Screen: Text Screen 2 PLC: DELTA 3 Automatic length measurement 4 Automatic quantity measurement 5 Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.Length inaccuracy can be amended easily
|

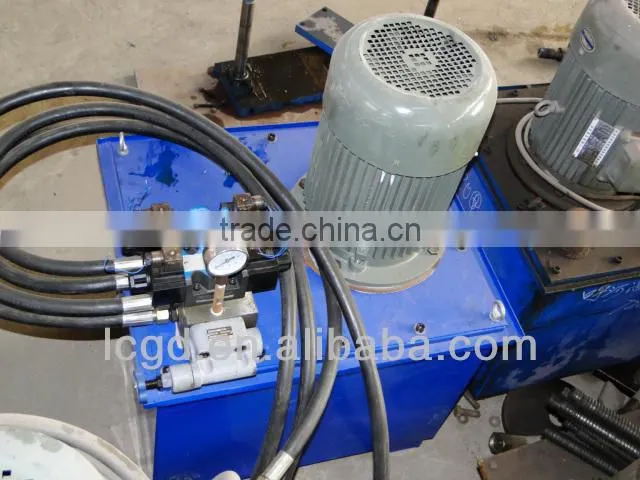

7. Hydraulic | 1).YUKEN SYSTEM MADE IN CHINA 2).Power: 3kw
|
8. Spare Parts | 1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2).Rubber mat 1 pcs; 3).Bolt spanner 1 pcs |
9. Main machine component | Manual decoiler:1set;forming machine:1set; hydraulic system:1 set;PLC:1 set Product stand:1set. |
10. Payment and Terms | 1).The payment terms: Pay 30% after signed the contract ,Pay 70% after inspection before deliver . 3).Delivery time : Within30working days after receiveing deposit. 4).Products Warranty: month,and we will provide the technical support for whole life of the equipment. |
11.Warranty | One year, and we will provide the technical support for the whole life. |
