Specifications
1.Model:IGQN125/140/150/180/200/230/250
2.model blade :IT225 IT240 IT260
3.used for dry land and paddy field
Model |
IGQN-180 |
IGQN-200 |
IGQN-230 |
IGQN-250 |
|||||
Power(hp) |
50 |
55 |
60-100 |
||||||
Cultivate width (m) |
1.8 |
2.0 |
2.3 |
2.5 |
|||||
Cultivate deepness (cm) |
Dry land: 8-16 paddy field: 10-18 |
||||||||
Model of blade |
IT225/ IT245/ IT260 |
||||||||
Quantity of blade |
50 |
58 |
62 |
66 |
|||||
Speed of forward (km/h) |
2-5 |
||||||||
Throughput (sq.m./h) |
2500-6000 |
2700-6700 |
3200-8000 |
3300-8700 |
|||||
Oil wear (kg/1000 sq.m.) |
1.5-1.8 |
||||||||
Link type with tractor |
Three point suspension |
||||||||
Size L*W*H (mm) |
1020*2106*1152 |
1020*2346*1152 |
1020*2586*1152 |
1020*2776*1152 |
|||||
Weight (kg) |
405 |
420 |
435 |
450 |
|||||
Gear oil fillup (kg) |
6 |
6 |
6 |
6 |
|||||
Speed of tractor PTO (r/min) |
1000 |
720 |
540 |
||||||
Bevel gear transmission ratio |
17:40 |
17:37 |
17:40 |
17:37 |
17:40 |
17:37 |
|||
Speed of tiller shaft |
291 |
314 |
209 |
226 |
200 |
236 |
|||
Model |
IGQN-125 |
IGQN-140 |
IGQN-150 |
|
Power(kw) |
13.4-14.9(18-20hp) |
18.6-26.1(25-35hp) |
22.5-29.8(30-40hp) |
|
Cultivate width (cm) |
125 |
140 |
150 |
|
Cultivate deepness (cm) |
Dry land: 10-14 paddy field: 12-16 |
|||
Model of blade |
IT225 |
|||
Throughput (hm/h) |
0.09-0.46 |
0.1-0.52 |
0.1-0.6 |
|
Oil wear (kg/h) |
6-10 |
8-12 |
8-12 |
|
Link type with tractor |
Three point suspension |
|||
Size L*W*H (mm) |
960*1456*1096 |
960*1656*1096 |
960*1756*1096 |
|
Weight (kg) |
248 |
253 |
268 |
|
Gear oil fillup (kg) |
4 |
4 |
4 |
|
Speed of tractor PTO (r/min) |
540 |
720 |
||
Bevel gear transmission ratio |
19:28 |
15:30 |
||
Speed of tiller shaft |
232 |
228 |
||

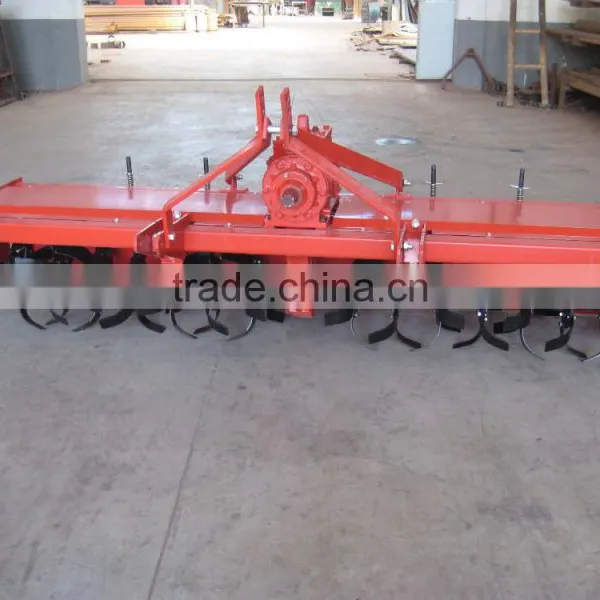

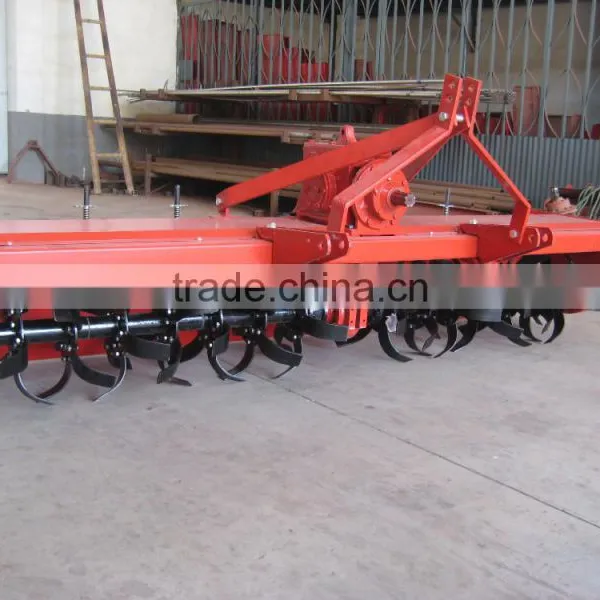

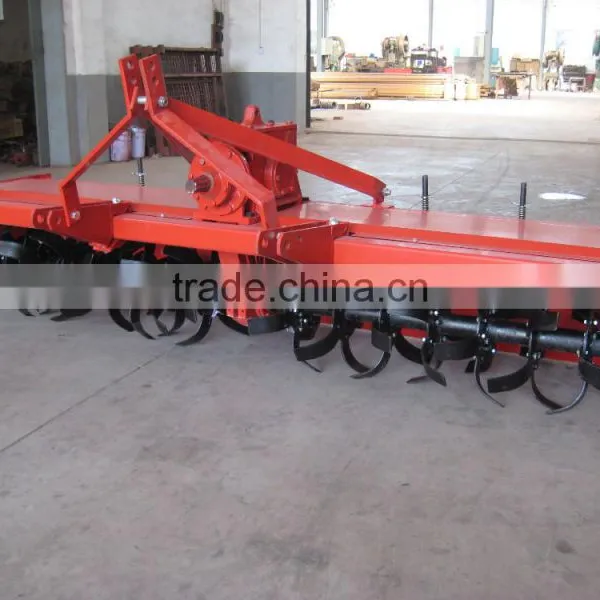

Rotary cultivator:
Wide coverage,symmetric hanging structure covering tire mark,reliable quality,high performance suitable for dry land and paddy fields,saving time and effort,with low cost,etc.
Our company has been a reliable and excellent manufacturer of disc blades, plough discs , disc harrow , disc plough and disc ridger .We can supply all various discs according to customers' drawing and samples .
All various blades:
If you are intereted in our product, please contact me.
Your any inquiry is apreciated.
