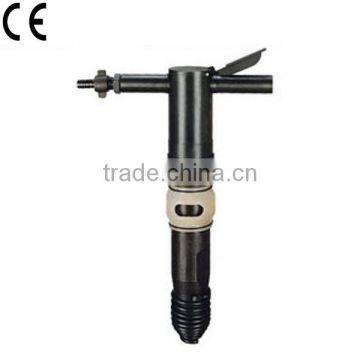

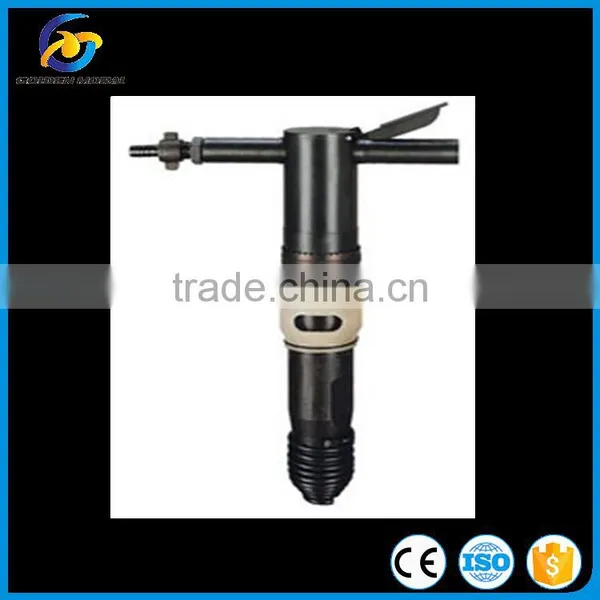

Pneumatic Pick G20

  Instruction

   The G20 pneumatic pick is suitable in the mining industry to interrupt the coal bed and to destroy the soft ore; or in civil engineering and underground construction,.

  Specification

Length                                        572mm

Weight                                           20kg

Rammer dia                                        40mm

Rammer stroke                                   165mm

Impact energy                                      60J

Impact frequency                                    16Hz

Air consumption                                    23L/s

Air pipe inner dia                                    16mm

Pick drill                                    450-600MM

 Maintenance

1,Air pipe inner dia is 16mm and length is not excess 12 m, the air         pressure should be kept at 0.63Mpa, and keep air pipe clean and fasten hose nipple.

2,When assembling machine,check clearance between drill shank and fixing sleeve,hold handle and force pressure to it slowly, ensure that work normally.

3,Oil machine every 2-3 hours(3-4.5°E50 turbine oil)

4,Do not insert the whole machine into ledge,when drilling incompetent bed.

5,When machine was jammed at crevice, do not drawout it powerfully ,it will damage machine.

6,If dirt block strainer, romove it .cannot disassemble strainer.

7,When using machine,dismantle it at least twice a week, use diesel oil to clean and dry ,then oil, later assemble and operate machine.

8,If machine should be stored for along time ,dismantle and clean it ,then oil and store.
