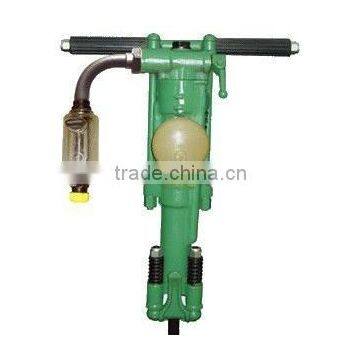

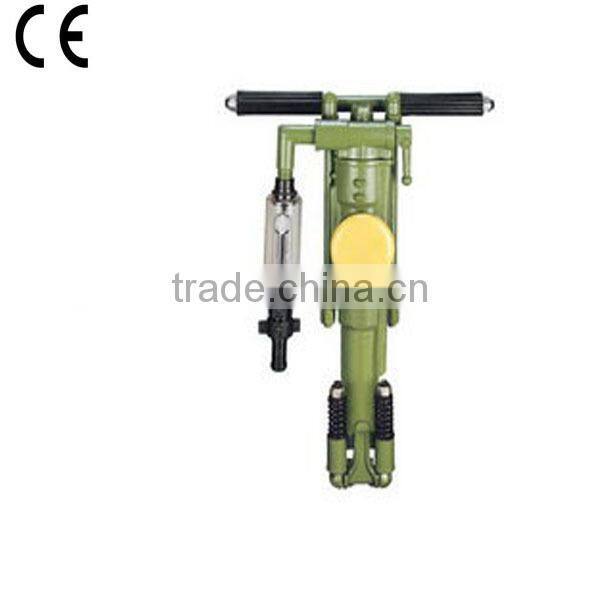

Y24 Pneumatic Tools Rock Drill

Instruction

Y24 rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It’s suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.

FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.

Specification

Weight                                                           ≈24kg

Length                                                            604mm

Cylinder dia.                                                          70mm

Piston stroke                                                          70mm

Work pressure                                                  0.4~0.63MPa

Impact frequency*                                                     ≥27HZ

Air consumption*                                                     ≤55L/s

Air pipe inner dia.                                                     19mm

Shank head dia                                                     34~42mm

Shank dimensions(hex×length)at0.4Mpa                            22×108±1mm

FY200B oil reservior:

Capacity                                                             200ml

Maintenance

Notice in operation

1,This rock drill has been filled with antirust oil. It should be washed and with lubrication before being operated.

2,The dunghill should be blowed before linking the aie pipe to flexible and credible. The oiler should be filled with lubrication and adjust the oil flux.

3,Before start the machine should check whether all parts are flexible and credible. The oiler should be filled with lubrication and adjust the oil flox.

4,Machine propelling force mainly depends on machine own weight, if apply thrust, it will accelerate drilling speed.

5,Ensure that maintain machine at intervals. Clear dirty and change damaged,frayed and deteriorated parts at least twice a month.

6,If machine should store for a long time.dismantle machine first, oil and seal , then placed a dry place.
