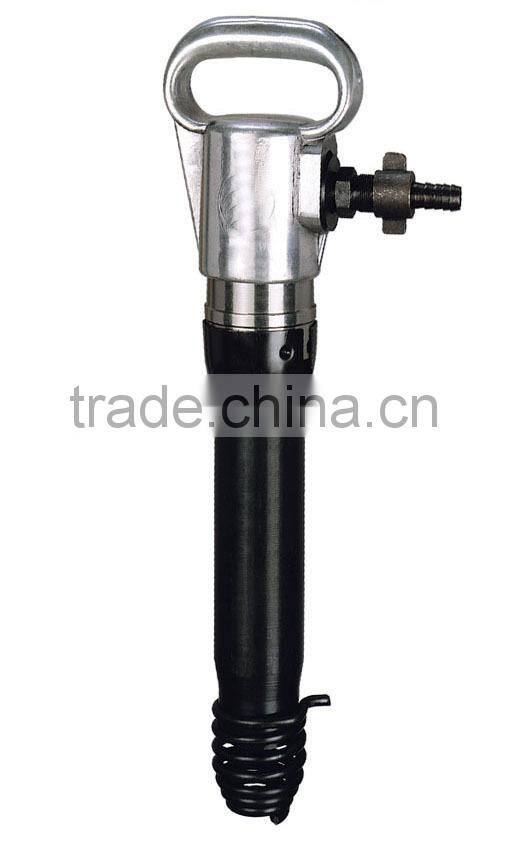

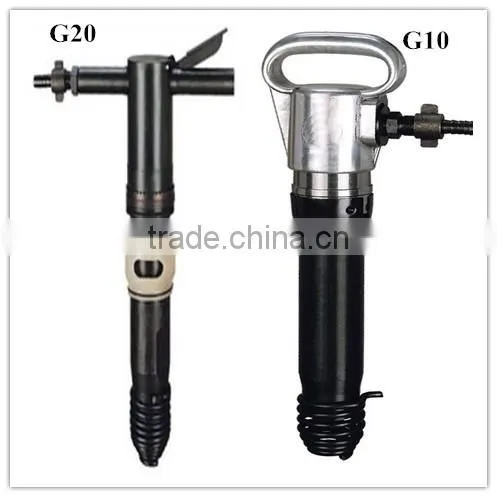

G10 Pneumatic Pick

G10 Pneumatic Pick thumbnail-1
G10 Pneumatic Pick thumbnail-2
G10 Pneumatic Pick photo-1
G10 Pneumatic Pick photo-2
US$ 150 - 200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
GM G10 Pneumatic pick
Model Number:
G10 Pneumatic pick
Contact Supplier Request Quote Chat Now
Fuzhou Golden Moral Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name GM G10 Pneumatic pick
Model Number G10 Pneumatic pick
Type Other, Pneumatic Breaker

G10 Pneumatic Pick



                                                           Instruction

  G10 pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.

Technical Specification

Total Length                                                    575mm

Weight                                                          10.9kg

Rammerweight                                                   0.9kg

Rammer dia                                                     38mm

Rammer stroke                                                   155mm

Air pressure                                                    0.63Mpa

Impact energy                                                       43J

Impact frequency                                                    16Hz

Air consumption                                                  26L/s

Air pipe inner dia                                                 16mm

Drill                                                            500mm

Maintenance

Pneumatic pick is a exactitube tool that make reciprocating impact, should pay attention to maintenance.

Please abide the following maintenance rules.

1,   Air pipe inner dia is 16mm and length is not excess 12 m, the air pressure should be kept at 0.5-0.6Mpa, and keep air pipe clean and fasten hose nipple.

2,   When assembling machine, check clearance between drill shank and fixing sleeve, hold handle and force pressure to it slowly, ensure that work normally.

3,   Working regularly, oil machine through the pipe connecter every 2-3 hours(3-4.5°E50 turbine oil)

4,   Do not insert the whole machine into ledge,when drilling incompetent bed.

5,   When machine was jammed in crevice, do not draw out it powerfully, it will damage machine.

6,   If dirty block strainer, romove it.Don’t take off strainer.

7,   When using machine,dismantle it at least twice a week, use diesel oil to clean and dry, then oil, later assemble and operate machine.

8 ,If machine should stop for along time, dismantle and clean it, then oil and keep in storehouse.
