double dippers Diaphragm Jig
- 100 Unit / Units per Month
- Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | GM | Certification | CE |
Product Description
Specifications
double dippers Diaphragm Jig1.Good separation result
2.Convenient maintenance
3. High quality
double dippers Diaphragm Jig :
Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig
Rectangle compartment side way action type jig has two types. One is left compartment side way jig, another is right compartment side way jig. The jig has fixed screen. It’s available in separating metallic ores, such as tungsten and gold placer deposits as well as beneficiated tin ore, which not only can be separated fine materials, but coarse also. The largest feed size is 6-8mm,but it can be 12mm in few cases.

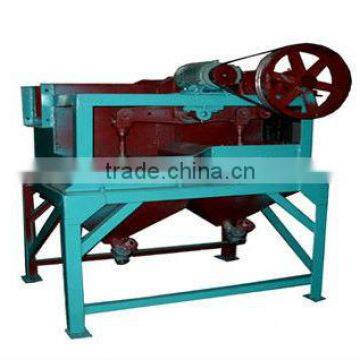

LTS300*450 rectangle compartment size way action type jig is mainly composed of jig box, drive device, water distribution, diaphragm and bibcock. There are two jig buckets with different sizes and each diaphragm is divided into jig area and diaphragm area by clapboard. The rubber diaphragm pumping to make medium (water) moving is the jigging course. The triangle belt drives big belt pulley by electromotor so connecting.
Model | Jig Chamber No. | Jig Area | Feeding size | Production capacity | Stroke | Stroke per minute | Hutch water | Water pressure | Engine | weight | |
Model | Power | ||||||||||
100×150 | 1 | 0.015 | -3 | 0.018-0.6 | - | 420 | - | 1-1.5 | Y80L-4 | 0.55 | 130 |
300×450 | 2 | 0.27 | -12 | 3-6 | 0-26 | 322 | 2-4 | 1-1.5 | Y90S-4 | 1.1 | 745 |
1000×1000 | 2 | 2 | 1-5 | 10-25 | 0-26 | 200-350 | 60-80 | 0.6-2 | Y100L-6 | 1.5 | 1700 |
370×360 | 2 | 0.274 | 6 | 1-3 | 5-25 | 200-250 | 2-5 | - | Y90S-4 | 1.1 | 240 |
670×920 | 2 | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 | - | - | - | - | - |
