Specifications
good price precision filter1)good quality
2)high efficiency
3)long useful life

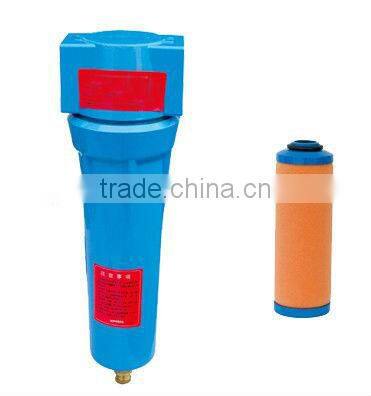

good price precision filter
Precision filter (also known as security filters), generally made of stainless steel cylinder shell, the internal use of PP meltblown, wire burning, folding, titanium filters, activated carbon filters and other tubular filter as the filter element, depending on the filter media and design process to select a different filter elements, in order to achieve water quality requirements. The body can also choose fast-loading, to facilitate quick replacement of filters and cleaning. The device is widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, printing and dyeing, environmental protection and other industries, is all kinds of liquid filtration, clarification, purification treatment ideal equipment.
Precision filter with a high dirt holding capacity, corrosion resistance, good temperature, flow, easy operation, long life, no fiber loss and many other features.
Various coating equipment top cotton filter and frame, bag filters for fine chemicals, oil, food, pharmaceuticals, water treatment and other occasions.
It's a variety of solid-liquid separation, wide applicate for medicine,Foods,Chemical,Environmentally friendly. Water treatment and other industrial areas, a variety of coating equipment top cotton filter and frame, bag filters for fine chemicals, oil, food, pharmaceuticals, water treatment and other occasions.
| Model | Size | Filter Flow | m³/min CFM | Filter Core | Weight(Kg) | Max | |||||
| m³/min CFM | P/S/M/X | Working prssure | |||||||||
| A(mm) | B(mm) | C(mm) | (bar) | ||||||||
| HD004 | 267 | 243 | 89 | 4 | 14.1 | 1″ | 1x004 | 1.1 | 16 | ||
| HD007 | 267 | 243 | 89 | 7 | 24.7 | 1″ | 1x007 | 1.1 | 16 | ||
| HD015 | 267 | 243 | 89 | 1.5 | 53 | 1″ | 1x015 | 1.1 | 16 | ||
| HD024 | 513.5 | 480 | 109 | 2.4 | 84.7 | 1/2″ | 1x024 | 2.2 | 16 | ||
| HD035 | 513.5 | 480 | 109 | 3.5 | 123.6 | 11/2″ | 1x035 | 2.2 | 16 | ||
| HD060 | 513.5 | 480 | 109 | 6 | 211.9 | 11/2″ | 1x060 | 2.7 | 16 | ||
| HD090 | 550 | 509.5 | 150 | 9 | 317.8 | 2″ | 1x090 | 4.25 | 16 | ||
| HD120 | 928 | 887.5 | 150 | 12 | 423.7 | 2″ | 1x120 | 6 | 16 | ||
| HD150 | 928 | 887.5 | 150 | 15 | 529.7 | 2″ | 1x150 | 6 | 16 | ||
| HD240 | 1225 | 1133 | 275 | 24 | 847.5 | PN16D65 | 1x240 | 28.5 | 12 | ||
| HD360 | 1512 | 1100 | 473 | 36 | 1271.2 | PN16D125 | 3x120 | 137 | 12 | ||
| HD450 | 1706 | 1265 | 473 | 45 | 1589 | PN16D150 | 3x150 | 140 | 12 | ||
